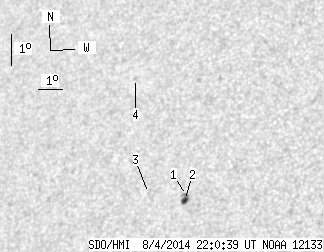

SDO HMI 2014-08-04 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.79 | 8.58 | 2.36 | 5.39 | 18.40 | 182.09 | -36.65 | 67.60 | 0.6149 | -381.2 | -324.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-04 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 7.05 | 0.39 | 4.39 | 18.17 | 182.53 | -36.21 | 67.76 | 0.6086 | -881.4 | -724.4 | |
| 3.16 | -1.00 | 1.97 | -1.00 | 18.02 | 182.49 | -36.25 | 68.03 | 0.6086 | -1017.7 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 18.15 | 181.02 | -37.73 | 68.37 | 0.6278 | 527.0 | 395.4 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 21.68 | 179.46 | -39.29 | 63.63 | 0.6590 | 660.0 | 597.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
