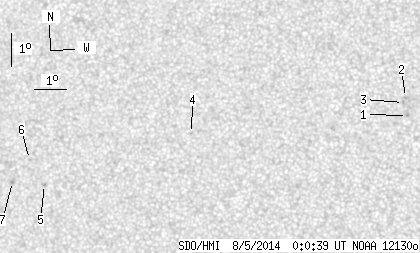

SDO HMI 2014-08-05 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.86 | 0.00 | 4.97 | 5.80 | 207.87 | -9.78 | 85.03 | 0.1707 | -158.4 | -117.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.49 | 6.75 | 214.41 | -3.23 | 77.65 | 0.0576 | -1001.0 | -896.3 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 7.29 | 214.35 | -3.30 | 69.08 | 0.0613 | -859.0 | -708.4 | |
| 0.00 | 1.36 | 0.00 | 0.67 | 7.14 | 214.29 | -3.36 | 71.75 | 0.0615 | -916.0 | -709.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.13 | 207.76 | -9.88 | 89.04 | 0.1714 | 760.0 | 587.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 4.48 | 203.20 | -14.44 | 95.54 | 0.2509 | -870.0 | -644.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 5.23 | 202.71 | -14.93 | 92.42 | 0.2580 | 724.0 | 520.9 | |
| 0.00 | 2.35 | 0.00 | 1.21 | 4.55 | 202.19 | -15.45 | 94.84 | 0.2678 | 1053.0 | 660.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
