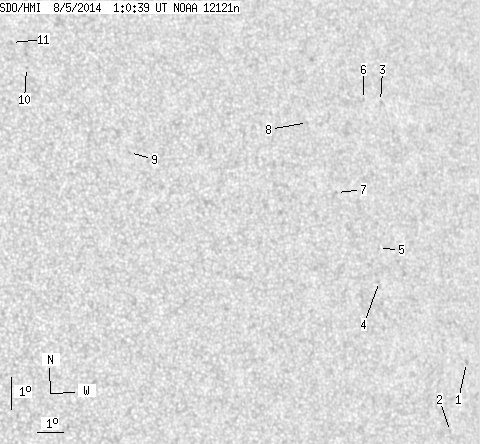

SDO HMI 2014-08-05 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.68 | 0.00 | 6.76 | 14.74 | 254.62 | 37.52 | 287.14 | 0.6190 | 523.6 | 438.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.16 | 9.19 | 260.10 | 43.01 | 276.99 | 0.6807 | 544.0 | 488.2 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 7.14 | 259.16 | 42.06 | 273.95 | 0.6686 | 590.0 | 487.4 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 17.38 | 258.23 | 41.14 | 289.41 | 0.6679 | 77.0 | 126.8 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 11.89 | 256.95 | 39.85 | 281.33 | 0.6418 | 522.0 | 496.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 12.90 | 257.09 | 40.00 | 282.87 | 0.6450 | 475.0 | 492.3 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 17.49 | 257.54 | 40.45 | 289.76 | 0.6598 | 497.0 | 424.5 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 14.72 | 255.76 | 38.67 | 285.97 | 0.6308 | 675.0 | 522.6 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 16.93 | 255.09 | 38.00 | 289.63 | 0.6275 | 624.0 | 398.8 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 16.41 | 248.10 | 31.01 | 291.45 | 0.5331 | 423.0 | 355.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 19.23 | 244.84 | 27.74 | 298.57 | 0.5025 | 597.0 | 465.3 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 20.04 | 244.44 | 27.35 | 300.35 | 0.5021 | 736.0 | 600.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
