SDO HMI 2014-08-05 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.99 | 132.03 | 21.48 | 80.62 | -7.39 | 250.13 | 33.03 | 248.06 | 0.5843 | 298.1 | 199.3 | |
|
previous
or next observation for the same group /

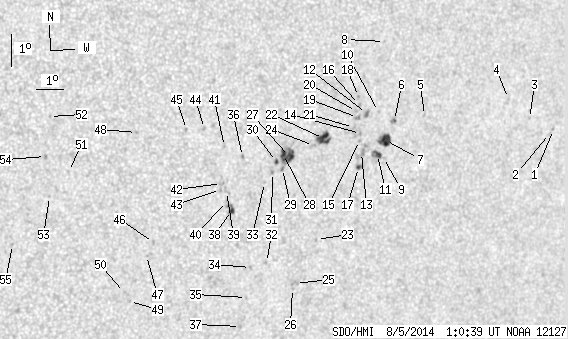

back to the solar disc SDO HMI 2014-08-05 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.69 | -6.97 | 259.58 | 42.49 | 253.55 | 0.7013 | 471.0 | 462.8 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -7.08 | 259.42 | 42.33 | 253.33 | 0.6999 | 383.0 | 361.9 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -6.55 | 258.54 | 41.45 | 253.72 | 0.6874 | 524.0 | 428.6 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -5.87 | 257.62 | 40.53 | 254.32 | 0.6737 | 375.0 | 389.1 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -6.17 | 254.34 | 37.24 | 252.44 | 0.6334 | 516.0 | 449.6 | |
| 0.54 | 2.89 | 0.34 | 1.82 | -6.25 | 253.20 | 36.10 | 251.76 | 0.6190 | -432.2 | -273.2 | |
| 8.68 | 12.75 | 5.46 | 8.01 | -6.85 | 252.90 | 35.81 | 250.69 | 0.6178 | 785.2 | 609.7 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -3.77 | 252.66 | 35.57 | 255.42 | 0.6020 | 593.0 | 430.2 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -7.38 | 252.88 | 35.78 | 249.86 | 0.6199 | 227.0 | 239.7 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -5.93 | 252.57 | 35.47 | 251.94 | 0.6094 | 509.0 | 448.6 | |
| 2.89 | 6.96 | 1.82 | 4.37 | -7.27 | 252.64 | 35.55 | 249.90 | 0.6163 | 695.5 | 575.8 | |
| 0.00 | 3.07 | 0.00 | 1.91 | -5.96 | 252.12 | 35.03 | 251.66 | 0.6036 | 769.0 | 623.4 | |
| 0.00 | 8.41 | 0.00 | 5.24 | -7.17 | 252.03 | 34.94 | 249.72 | 0.6080 | -75.0 | -148.2 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -6.57 | 251.94 | 34.85 | 250.60 | 0.6040 | 659.0 | 556.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -6.79 | 251.92 | 34.83 | 250.25 | 0.6048 | 413.0 | 401.1 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -5.66 | 251.84 | 34.74 | 251.98 | 0.5986 | 703.0 | 609.3 | |
| 1.18 | 1.90 | 0.73 | 1.18 | -7.63 | 251.96 | 34.87 | 248.96 | 0.6093 | -603.6 | -606.7 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -5.41 | 251.78 | 34.69 | 252.36 | 0.5968 | 716.0 | 586.0 | |
| 0.00 | 3.16 | 0.00 | 1.96 | -6.07 | 251.79 | 34.70 | 251.32 | 0.5997 | 766.0 | 654.2 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -5.88 | 251.74 | 34.65 | 251.60 | 0.5982 | 766.0 | 734.6 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -6.37 | 251.66 | 34.57 | 250.77 | 0.5994 | 555.0 | 653.2 | |
| 8.59 | 12.39 | 5.24 | 7.56 | -6.64 | 250.57 | 33.48 | 249.72 | 0.5864 | 855.2 | 675.8 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -9.81 | 250.62 | 33.52 | 244.80 | 0.6037 | -686.0 | -557.5 | |
| 0.00 | 1.99 | 0.00 | 1.21 | -6.84 | 250.22 | 33.13 | 249.19 | 0.5827 | 714.0 | 485.9 | |
| 0.00 | 3.35 | 0.00 | 2.08 | -11.16 | 250.00 | 32.91 | 242.33 | 0.6041 | -564.0 | -578.6 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -11.32 | 249.91 | 32.82 | 242.04 | 0.6039 | -661.0 | -612.0 | |
| 7.87 | 17.27 | 4.75 | 10.41 | -7.13 | 249.37 | 32.28 | 248.19 | 0.5729 | 818.1 | 677.9 | |
| 2.71 | -27.00 | 1.63 | -27.00 | -7.06 | 249.14 | 32.05 | 248.17 | 0.5695 | 1013.7 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.25 | -7.49 | 249.14 | 32.05 | 247.46 | 0.5718 | 681.0 | 507.7 | |
| 0.81 | 2.53 | 0.49 | 1.52 | -7.26 | 248.91 | 31.82 | 247.68 | 0.5675 | 897.4 | 779.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -7.60 | 248.79 | 31.70 | 247.06 | 0.5677 | 733.0 | 650.3 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -10.43 | 248.85 | 31.76 | 242.60 | 0.5852 | -666.0 | -522.5 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -7.90 | 248.53 | 31.43 | 246.39 | 0.5659 | 687.0 | 557.2 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -10.56 | 248.28 | 31.19 | 241.98 | 0.5789 | -677.0 | -520.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -11.51 | 248.25 | 31.16 | 240.50 | 0.5847 | -539.0 | -432.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -7.03 | 247.67 | 30.58 | 247.23 | 0.5497 | 864.0 | 745.3 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -12.43 | 248.15 | 31.06 | 239.04 | 0.5897 | -562.0 | -454.6 | |
| 1.72 | 5.61 | 1.02 | 3.34 | -8.71 | 247.41 | 30.32 | 244.26 | 0.5561 | -698.5 | -608.6 | |
| 0.00 | 3.44 | 0.00 | 2.03 | -8.10 | 247.18 | 30.09 | 245.09 | 0.5494 | 634.0 | 509.3 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -8.42 | 247.21 | 30.12 | 244.59 | 0.5517 | -202.0 | -189.2 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -6.69 | 247.01 | 29.92 | 247.36 | 0.5388 | 503.0 | 403.5 | |
| 0.00 | 2.17 | 0.00 | 1.28 | -7.84 | 246.98 | 29.89 | 245.38 | 0.5452 | 616.0 | 687.2 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -8.03 | 246.96 | 29.87 | 245.05 | 0.5461 | 704.0 | 588.8 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -6.09 | 246.26 | 29.17 | 247.88 | 0.5253 | 776.0 | 606.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -6.08 | 245.63 | 28.54 | 247.42 | 0.5166 | 666.0 | 462.3 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -9.57 | 244.74 | 27.65 | 240.63 | 0.5271 | -761.0 | -616.4 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -9.97 | 244.53 | 27.44 | 239.77 | 0.5273 | -350.0 | -429.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -6.09 | 243.91 | 26.81 | 246.06 | 0.4927 | -625.0 | -510.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -11.41 | 244.08 | 26.98 | 237.00 | 0.5324 | -609.0 | -493.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -11.11 | 243.87 | 26.78 | 237.28 | 0.5276 | -606.0 | -539.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -7.19 | 241.65 | 24.56 | 241.95 | 0.4692 | -614.0 | -421.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -5.45 | 240.93 | 23.84 | 244.66 | 0.4470 | -595.0 | -537.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -7.95 | 241.06 | 23.97 | 239.92 | 0.4668 | -716.0 | -555.8 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -6.69 | 240.85 | 23.76 | 242.11 | 0.4546 | -825.0 | -689.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -9.41 | 239.91 | 22.82 | 235.96 | 0.4636 | -656.0 | -495.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
