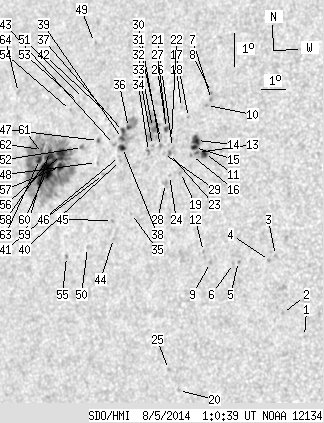

SDO HMI 2014-08-05 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.78 | 377.37 | 52.56 | 260.56 | 9.26 | 172.73 | -44.37 | 82.91 | 0.6973 | 227.9 | 188.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.55 | 4.55 | 182.02 | -35.07 | 90.73 | 0.5749 | -696.0 | -625.2 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 5.20 | 181.16 | -35.93 | 89.52 | 0.5866 | -606.0 | -515.2 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 6.94 | 180.76 | -36.33 | 86.52 | 0.5914 | -705.0 | -438.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 6.77 | 180.55 | -36.54 | 86.80 | 0.5944 | -743.0 | -651.7 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 6.67 | 179.36 | -37.73 | 86.93 | 0.6109 | -634.0 | -550.9 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 6.60 | 179.17 | -37.92 | 87.04 | 0.6135 | -622.0 | -532.5 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 11.52 | 177.68 | -39.41 | 79.20 | 0.6355 | -855.0 | -735.1 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 11.73 | 177.65 | -39.45 | 78.87 | 0.6362 | -757.0 | -661.6 | |
| 0.00 | 1.63 | 0.00 | 1.03 | 6.57 | 178.28 | -38.81 | 87.05 | 0.6258 | -514.0 | -406.7 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 11.32 | 177.51 | -39.58 | 79.53 | 0.6376 | -785.0 | -674.8 | |
| 3.16 | 18.99 | 2.02 | 12.19 | 9.86 | 177.66 | -39.44 | 81.82 | 0.6345 | -989.1 | -748.6 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 6.89 | 177.97 | -39.12 | 86.54 | 0.6298 | -555.0 | -438.8 | |
| 0.63 | -11.00 | 0.41 | -11.00 | 9.87 | 177.37 | -39.72 | 81.82 | 0.6383 | -873.9 | 999999 | |
| 4.52 | -11.00 | 2.91 | -11.00 | 10.23 | 177.28 | -39.81 | 81.26 | 0.6397 | -898.4 | 999999 | |
| 2.08 | -11.00 | 1.34 | -11.00 | 10.02 | 177.23 | -39.86 | 81.60 | 0.6402 | -926.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 9.76 | 177.15 | -39.94 | 82.00 | 0.6412 | -489.0 | -479.5 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 10.91 | 176.85 | -40.24 | 80.24 | 0.6459 | -591.0 | -503.7 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 11.19 | 176.52 | -40.57 | 79.83 | 0.6505 | -573.0 | -525.1 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 9.22 | 176.78 | -40.31 | 82.87 | 0.6459 | -711.0 | -573.1 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 2.60 | 177.26 | -39.83 | 93.21 | 0.6431 | -581.0 | -459.2 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 9.96 | 176.35 | -40.74 | 81.75 | 0.6518 | -800.0 | -672.2 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 10.23 | 176.26 | -40.83 | 81.34 | 0.6531 | -561.0 | -497.5 | |
| 0.00 | 1.90 | 0.00 | 1.24 | 9.77 | 176.25 | -40.84 | 82.05 | 0.6530 | -820.0 | -683.5 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 9.10 | 176.35 | -40.74 | 83.07 | 0.6515 | -551.0 | -439.7 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 3.21 | 176.84 | -40.25 | 92.20 | 0.6479 | -598.0 | -498.1 | |
| 1.18 | 2.44 | 0.77 | 1.60 | 10.52 | 176.01 | -41.08 | 80.92 | 0.6565 | -618.6 | -426.8 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 10.79 | 175.93 | -41.16 | 80.51 | 0.6578 | -728.0 | -585.7 | |
| 0.00 | 2.71 | 0.00 | 1.77 | 8.85 | 176.22 | -40.87 | 83.47 | 0.6531 | -527.0 | -406.2 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 9.75 | 176.01 | -41.08 | 82.09 | 0.6562 | -342.0 | -292.1 | |
| 0.00 | 2.08 | 0.00 | 1.37 | 9.95 | 175.85 | -41.24 | 81.79 | 0.6583 | -607.0 | -523.5 | |
| 0.00 | 2.53 | 0.00 | 1.66 | 10.20 | 175.82 | -41.27 | 81.42 | 0.6589 | -506.0 | -333.8 | |
| 0.00 | 23.69 | 0.00 | 15.65 | 10.51 | 175.44 | -41.66 | 80.97 | 0.6640 | 495.0 | 28.1 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 9.96 | 175.52 | -41.57 | 81.79 | 0.6625 | -371.0 | -300.0 | |
| 0.00 | 1.81 | 0.00 | 1.20 | 9.77 | 175.39 | -41.70 | 82.09 | 0.6642 | -498.0 | -336.0 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 7.84 | 174.95 | -42.14 | 85.00 | 0.6695 | -398.0 | -356.5 | |
| 1.27 | 28.21 | 0.85 | 18.93 | 10.44 | 174.44 | -42.65 | 81.14 | 0.6766 | 1003.4 | 601.7 | |
| 1.81 | -36.00 | 1.22 | -36.00 | 10.30 | 174.25 | -42.84 | 81.35 | 0.6789 | 893.7 | 999999 | |
| 2.62 | -36.00 | 1.76 | -36.00 | 9.82 | 174.29 | -42.80 | 82.07 | 0.6782 | 958.3 | 999999 | |
| 1.45 | -36.00 | 0.97 | -36.00 | 10.09 | 174.25 | -42.84 | 81.67 | 0.6789 | 935.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 9.42 | 174.27 | -42.82 | 82.67 | 0.6784 | 757.0 | 633.7 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 9.53 | 174.21 | -42.88 | 82.49 | 0.6792 | 562.0 | 484.4 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 10.56 | 173.91 | -43.18 | 81.00 | 0.6833 | 579.0 | 455.6 | |
| 0.00 | 1.63 | 0.00 | 1.10 | 9.88 | 173.94 | -43.15 | 81.99 | 0.6827 | 751.0 | 639.7 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 7.03 | 174.29 | -42.80 | 86.19 | 0.6781 | 684.0 | 638.8 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 7.57 | 174.19 | -42.91 | 85.39 | 0.6793 | 734.0 | 611.1 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 8.94 | 173.62 | -43.47 | 83.38 | 0.6865 | 715.0 | 539.3 | |
| 0.54 | 1.72 | 0.37 | 1.17 | 9.96 | 173.25 | -43.84 | 81.91 | 0.6914 | 702.5 | 557.4 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 9.28 | 173.27 | -43.82 | 82.89 | 0.6909 | 491.0 | 543.8 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 12.92 | 172.49 | -44.60 | 77.71 | 0.7027 | 515.0 | 530.1 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 6.68 | 173.23 | -43.86 | 86.66 | 0.6916 | 489.0 | 409.6 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 11.18 | 172.37 | -44.72 | 80.20 | 0.7028 | 687.0 | 637.2 | |
| 0.00 | 2.80 | 0.00 | 1.94 | 9.70 | 172.60 | -44.49 | 82.31 | 0.6994 | 798.0 | 642.3 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 11.05 | 172.18 | -44.91 | 80.40 | 0.7050 | 530.0 | 404.0 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 10.78 | 171.88 | -45.21 | 80.80 | 0.7086 | 607.0 | 560.4 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 6.34 | 172.37 | -44.72 | 87.11 | 0.7026 | -599.0 | -499.9 | |
| 9.31 | 242.88 | 6.53 | 171.83 | 9.42 | 171.73 | -45.36 | 82.73 | 0.7100 | 941.8 | 308.4 | |
| 4.88 | -56.00 | 3.42 | -56.00 | 9.05 | 171.74 | -45.35 | 83.25 | 0.7097 | 973.4 | 999999 | |
| 5.88 | -56.00 | 4.16 | -56.00 | 9.32 | 171.21 | -45.88 | 82.88 | 0.7162 | 781.8 | 999999 | |
| 1.63 | -56.00 | 1.15 | -56.00 | 9.47 | 171.19 | -45.90 | 82.67 | 0.7165 | 682.7 | 999999 | |
| 29.93 | -56.00 | 21.20 | -56.00 | 8.85 | 171.16 | -45.94 | 83.53 | 0.7168 | 838.6 | 999999 | |
| 0.27 | -56.00 | 0.19 | -56.00 | 9.39 | 170.89 | -46.20 | 82.79 | 0.7201 | 544.3 | 999999 | |
| 1.27 | -56.00 | 0.90 | -56.00 | 9.50 | 170.82 | -46.27 | 82.63 | 0.7209 | 476.6 | 999999 | |
| 3.35 | -56.00 | 2.39 | -56.00 | 9.19 | 170.79 | -46.30 | 83.06 | 0.7213 | 551.0 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.45 | 11.15 | 169.46 | -47.63 | 80.41 | 0.7375 | 445.0 | 403.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
