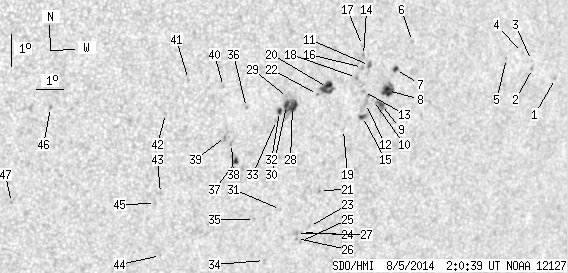

SDO HMI 2014-08-05 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.09 | 123.17 | 21.70 | 76.11 | -7.44 | 250.59 | 34.05 | 248.63 | 0.5978 | 274.0 | 199.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.63 | -6.95 | 259.61 | 43.07 | 253.80 | 0.7082 | 511.0 | 445.7 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -6.57 | 258.61 | 42.07 | 253.94 | 0.6949 | 614.0 | 476.1 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -6.31 | 258.54 | 42.00 | 254.27 | 0.6933 | 468.0 | 503.3 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -6.03 | 258.15 | 41.60 | 254.50 | 0.6875 | 373.0 | 372.2 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -6.17 | 257.50 | 40.96 | 254.05 | 0.6802 | 601.0 | 503.6 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -5.39 | 253.73 | 37.19 | 253.60 | 0.6295 | 694.0 | 490.6 | |
| 1.81 | 3.07 | 1.15 | 1.95 | -6.22 | 253.14 | 36.60 | 252.05 | 0.6252 | -456.4 | -307.6 | |
| 7.69 | 12.84 | 4.87 | 8.13 | -6.85 | 252.89 | 36.35 | 250.95 | 0.6247 | 802.3 | 604.8 | |
| 2.08 | 8.05 | 1.32 | 5.09 | -7.28 | 252.70 | 36.15 | 250.21 | 0.6242 | 710.4 | 506.6 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -7.13 | 252.38 | 35.84 | 250.26 | 0.6194 | 617.0 | 443.3 | |
| 0.72 | 3.26 | 0.45 | 2.03 | -6.03 | 252.14 | 35.60 | 251.84 | 0.6114 | 697.9 | 564.1 | |
| 0.00 | 8.59 | 0.00 | 5.39 | -7.21 | 252.08 | 35.54 | 249.99 | 0.6160 | -248.0 | -187.0 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -6.83 | 251.97 | 35.43 | 250.52 | 0.6128 | 545.0 | 426.8 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -5.70 | 251.89 | 35.35 | 252.23 | 0.6067 | 775.0 | 652.9 | |
| 1.90 | 4.97 | 1.19 | 3.12 | -7.61 | 252.01 | 35.47 | 249.34 | 0.6169 | -500.8 | -194.8 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -6.07 | 251.88 | 35.34 | 251.64 | 0.6082 | 765.0 | 677.0 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -5.39 | 251.83 | 35.29 | 252.69 | 0.6046 | 699.0 | 556.5 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -6.37 | 251.67 | 35.13 | 251.07 | 0.6068 | 718.0 | 715.8 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -7.97 | 251.33 | 34.79 | 248.39 | 0.6099 | -399.0 | -295.7 | |
| 7.87 | 11.76 | 4.84 | 7.23 | -6.62 | 250.61 | 34.07 | 250.10 | 0.5940 | 848.5 | 677.2 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -9.84 | 250.63 | 34.09 | 245.11 | 0.6110 | -723.0 | -594.4 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -6.81 | 250.26 | 33.72 | 249.58 | 0.5903 | 668.0 | 607.4 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -10.97 | 250.39 | 33.85 | 243.28 | 0.6145 | -619.0 | -470.7 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -11.14 | 250.12 | 33.58 | 242.83 | 0.6121 | -627.0 | -621.3 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -11.43 | 250.12 | 33.58 | 242.41 | 0.6139 | -484.0 | -408.3 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -11.32 | 249.95 | 33.41 | 242.45 | 0.6112 | -531.0 | -560.7 | |
| 0.00 | 1.81 | 0.00 | 1.13 | -11.16 | 249.93 | 33.39 | 242.67 | 0.6100 | -782.0 | -577.5 | |
| 6.42 | 18.09 | 3.90 | 10.97 | -7.13 | 249.37 | 32.82 | 248.53 | 0.5801 | 805.3 | 647.9 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -6.84 | 249.16 | 32.62 | 248.88 | 0.5759 | 610.0 | 584.1 | |
| 2.89 | -28.00 | 1.75 | -28.00 | -7.09 | 249.14 | 32.60 | 248.46 | 0.5770 | 999.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -10.36 | 249.24 | 32.70 | 243.39 | 0.5966 | -472.0 | -403.7 | |
| 1.81 | 3.17 | 1.09 | 1.91 | -7.26 | 248.90 | 32.36 | 248.03 | 0.5747 | 844.0 | 690.0 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -7.54 | 248.81 | 32.27 | 247.53 | 0.5750 | 736.0 | 581.1 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -11.95 | 248.85 | 32.31 | 240.71 | 0.6018 | -565.0 | -398.5 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -10.62 | 248.32 | 31.78 | 242.32 | 0.5867 | -663.0 | -545.7 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -7.07 | 247.69 | 31.15 | 247.56 | 0.5576 | 733.0 | 652.3 | |
| 1.90 | 5.79 | 1.14 | 3.46 | -8.74 | 247.44 | 30.90 | 244.63 | 0.5638 | -712.9 | -570.7 | |
| 0.00 | 2.44 | 0.00 | 1.45 | -8.16 | 247.24 | 30.70 | 245.43 | 0.5579 | 630.0 | 395.6 | |
| 0.00 | 3.80 | 0.00 | 2.26 | -7.93 | 247.01 | 30.47 | 245.64 | 0.5534 | 929.0 | 658.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -6.36 | 246.82 | 30.28 | 248.16 | 0.5420 | 721.0 | 580.5 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -6.08 | 245.57 | 29.03 | 247.78 | 0.5233 | 481.0 | 492.7 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -7.10 | 244.83 | 28.29 | 245.42 | 0.5192 | -784.0 | -630.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -9.61 | 244.85 | 28.31 | 241.15 | 0.5360 | -674.0 | -609.6 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -11.58 | 245.05 | 28.51 | 238.15 | 0.5527 | -570.0 | -427.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -9.91 | 244.71 | 28.17 | 240.52 | 0.5362 | -647.0 | -543.6 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -6.71 | 240.87 | 24.33 | 242.63 | 0.4627 | -801.0 | -641.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -9.64 | 239.75 | 23.21 | 235.98 | 0.4706 | -779.0 | -676.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
