SDO HMI 2014-08-05 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.97 | 233.46 | 30.26 | 122.41 | -7.48 | 228.43 | 11.89 | 218.59 | 0.3197 | 250.8 | 280.6 | |
|
previous
or next observation for the same group /

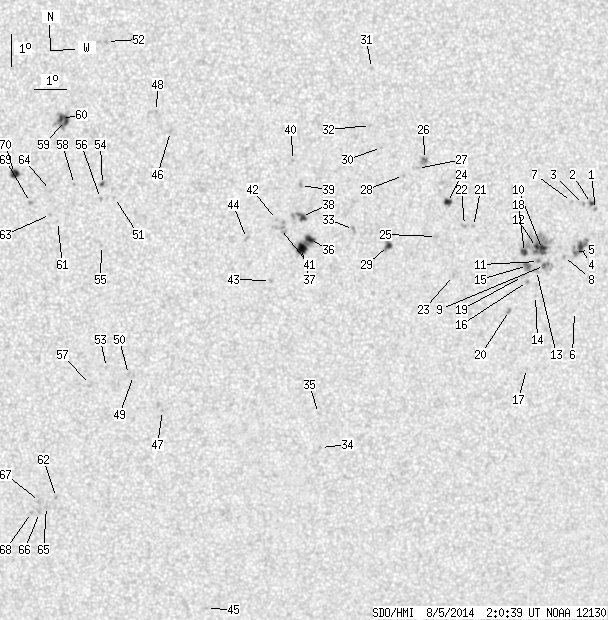

back to the solar disc SDO HMI 2014-08-05 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.78 | -6.66 | 235.69 | 19.15 | 236.66 | 0.3917 | 839.0 | 686.3 | |
| 1.27 | 3.07 | 0.68 | 1.65 | -6.46 | 235.55 | 19.01 | 236.88 | 0.3881 | 898.8 | 726.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -6.49 | 235.30 | 18.75 | 236.47 | 0.3849 | 890.0 | 710.2 | |
| 3.98 | 14.83 | 2.15 | 8.00 | -7.83 | 235.25 | 18.71 | 233.58 | 0.3967 | 939.0 | 753.4 | |
| 0.63 | -4.00 | 0.34 | -4.00 | -7.98 | 235.07 | 18.53 | 232.99 | 0.3957 | 917.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -9.84 | 235.16 | 18.62 | 229.52 | 0.4153 | 617.0 | 524.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.38 | 234.90 | 18.36 | 236.14 | 0.3786 | 823.0 | 599.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -8.09 | 234.72 | 18.17 | 232.23 | 0.3923 | 832.0 | 707.9 | |
| 1.09 | 7.78 | 0.58 | 4.18 | -8.35 | 234.11 | 17.57 | 230.75 | 0.3874 | 971.3 | 721.8 | |
| 5.88 | 44.31 | 3.15 | 23.69 | -7.85 | 234.03 | 17.49 | 231.65 | 0.3812 | 1089.6 | 529.1 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -8.22 | 233.91 | 17.37 | 230.70 | 0.3835 | 1054.0 | 927.2 | |
| 3.80 | -10.00 | 2.03 | -10.00 | -7.78 | 233.83 | 17.29 | 231.47 | 0.3780 | 1189.0 | 999999 | |
| 0.00 | 3.26 | 0.00 | 1.75 | -8.50 | 233.86 | 17.32 | 230.05 | 0.3858 | 658.0 | 612.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.29 | 233.87 | 17.33 | 228.51 | 0.3940 | 592.0 | 498.5 | |
| 2.17 | 5.61 | 1.16 | 3.00 | -8.33 | 233.57 | 17.02 | 229.89 | 0.3804 | 1068.8 | 836.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -8.84 | 233.59 | 17.05 | 228.92 | 0.3859 | 801.0 | 693.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -11.59 | 233.71 | 17.17 | 224.06 | 0.4174 | 737.0 | 512.7 | |
| 2.89 | -10.00 | 1.55 | -10.00 | -7.92 | 233.45 | 16.91 | 230.54 | 0.3747 | 1089.5 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -8.67 | 233.42 | 16.88 | 228.96 | 0.3822 | 617.0 | 444.0 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -9.73 | 233.05 | 16.51 | 226.28 | 0.3892 | -794.0 | -715.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -7.06 | 231.79 | 15.25 | 229.46 | 0.3450 | 803.0 | 649.1 | |
| 0.00 | 2.80 | 0.00 | 1.48 | -7.02 | 231.50 | 14.96 | 229.00 | 0.3410 | 792.0 | 698.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -8.57 | 231.21 | 14.67 | 225.13 | 0.3548 | 978.0 | 770.0 | |
| 3.44 | 4.97 | 1.80 | 2.61 | -6.28 | 230.94 | 14.40 | 229.59 | 0.3261 | -853.3 | -651.7 | |
| 0.00 | 2.26 | 0.00 | 1.19 | -7.33 | 230.63 | 14.09 | 226.56 | 0.3339 | 755.0 | 651.7 | |
| 1.09 | 4.61 | 0.56 | 2.40 | -4.93 | 230.19 | 13.65 | 231.40 | 0.3021 | -552.7 | -144.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -5.20 | 229.97 | 13.43 | 230.24 | 0.3022 | 825.0 | 674.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -5.41 | 229.54 | 13.00 | 228.78 | 0.2990 | 715.0 | 559.4 | |
| 2.89 | 5.06 | 1.51 | 2.65 | -7.58 | 229.12 | 12.58 | 222.78 | 0.3193 | 995.4 | 787.3 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -4.52 | 228.83 | 12.29 | 229.50 | 0.2803 | -792.0 | -722.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -2.08 | 228.49 | 11.95 | 236.05 | 0.2506 | -764.0 | -554.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -3.83 | 228.48 | 11.94 | 230.59 | 0.2683 | -795.0 | -596.4 | |
| 0.00 | 2.80 | 0.00 | 1.46 | -7.05 | 228.01 | 11.47 | 221.28 | 0.3004 | 1022.0 | 764.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -13.95 | 227.21 | 10.67 | 207.82 | 0.3866 | -798.0 | -634.9 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -12.85 | 227.10 | 10.56 | 208.99 | 0.3702 | -759.0 | -522.6 | |
| 4.70 | 23.33 | 2.43 | 12.08 | -7.33 | 226.64 | 10.10 | 217.10 | 0.2897 | 746.1 | 294.8 | |
| 7.96 | -36.00 | 4.12 | -36.00 | -7.61 | 226.40 | 9.86 | 215.86 | 0.2910 | 864.3 | 999999 | |
| 3.80 | 8.86 | 1.96 | 4.57 | -6.61 | 226.38 | 9.84 | 217.93 | 0.2774 | 1033.0 | 803.7 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -5.64 | 226.33 | 9.79 | 220.04 | 0.2642 | 946.0 | 755.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -4.86 | 226.10 | 9.56 | 221.35 | 0.2517 | 857.0 | 644.9 | |
| 0.00 | 9.86 | 0.00 | 5.08 | -6.97 | 225.73 | 9.19 | 215.28 | 0.2758 | 847.0 | 697.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -6.69 | 225.61 | 9.06 | 215.49 | 0.2707 | 973.0 | 780.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -8.59 | 225.46 | 8.92 | 211.33 | 0.2961 | 820.0 | 592.4 | |
| 0.00 | 2.44 | 0.00 | 1.26 | -7.27 | 224.69 | 8.14 | 211.49 | 0.2703 | 856.0 | 615.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -19.20 | 223.79 | 7.25 | 195.62 | 0.4441 | -751.0 | -606.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -3.91 | 222.31 | 5.77 | 210.15 | 0.2005 | -834.0 | -531.3 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -12.67 | 222.18 | 5.64 | 196.64 | 0.3362 | -739.0 | -604.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -3.29 | 221.88 | 5.34 | 209.82 | 0.1876 | -842.0 | -693.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -11.54 | 221.25 | 4.71 | 194.92 | 0.3140 | -866.0 | -681.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -11.51 | 221.10 | 4.56 | 194.47 | 0.3128 | -920.0 | -743.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.94 | 220.61 | 4.07 | 198.76 | 0.2202 | 717.0 | 577.4 | |
| 0.00 | 1.27 | 0.00 | 0.63 | -1.12 | 220.35 | 3.81 | 208.00 | 0.1420 | -960.0 | -791.3 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -11.28 | 220.41 | 3.87 | 192.52 | 0.3064 | -834.0 | -548.3 | |
| 0.99 | 2.26 | 0.50 | 1.15 | -5.53 | 220.24 | 3.70 | 197.73 | 0.2117 | -754.7 | -412.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -7.43 | 220.22 | 3.68 | 195.26 | 0.2427 | 820.0 | 639.2 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -5.96 | 220.18 | 3.64 | 196.86 | 0.2185 | 1094.0 | 779.4 | |
| 0.00 | 2.26 | 0.00 | 1.18 | -11.82 | 219.92 | 3.38 | 190.64 | 0.3136 | -648.0 | -571.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.52 | 219.38 | 2.84 | 193.80 | 0.2076 | -806.0 | -562.8 | |
| 3.35 | 16.64 | 1.68 | 8.37 | -3.54 | 219.10 | 2.56 | 194.96 | 0.1734 | -1110.6 | -739.4 | |
| 2.98 | -59.00 | 1.50 | -59.00 | -3.48 | 218.98 | 2.44 | 194.37 | 0.1718 | -1216.6 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -6.67 | 218.86 | 2.32 | 190.35 | 0.2250 | -712.0 | -532.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -15.46 | 218.89 | 2.35 | 186.15 | 0.3705 | -743.0 | -506.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.45 | 218.65 | 2.11 | 189.58 | 0.2206 | -959.0 | -741.2 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -5.70 | 218.65 | 2.11 | 190.17 | 0.2080 | -824.0 | -672.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -15.76 | 218.58 | 2.04 | 185.26 | 0.3748 | -688.0 | -599.4 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -15.95 | 218.36 | 1.82 | 184.65 | 0.3776 | -797.0 | -654.4 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -15.59 | 218.36 | 1.82 | 184.73 | 0.3718 | -784.0 | -673.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -15.95 | 218.11 | 1.57 | 184.01 | 0.3773 | -764.0 | -571.5 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -6.07 | 218.04 | 1.49 | 187.03 | 0.2128 | -957.0 | -784.4 | |
| 5.06 | 7.23 | 2.56 | 3.66 | -5.17 | 217.55 | 1.00 | 185.12 | 0.1965 | 995.9 | 682.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
