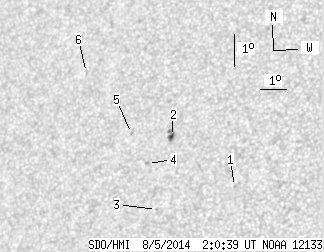

SDO HMI 2014-08-05 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 12.11 | 1.26 | 7.39 | 17.77 | 182.10 | -34.45 | 67.75 | 0.5841 | -310.1 | -377.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.48 | 16.59 | 185.19 | -31.35 | 68.39 | 0.5384 | -600.0 | -551.6 | |
| 2.08 | 6.51 | 1.26 | 3.95 | 18.01 | 182.52 | -34.03 | 67.16 | 0.5796 | -1000.1 | -696.3 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 15.73 | 182.41 | -34.14 | 71.06 | 0.5732 | -582.0 | -431.2 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 17.12 | 181.78 | -34.76 | 68.94 | 0.5861 | -665.0 | -526.9 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 18.01 | 180.95 | -35.59 | 67.80 | 0.5999 | 584.0 | 427.8 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 19.79 | 178.69 | -37.85 | 65.90 | 0.6347 | 582.0 | 462.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
