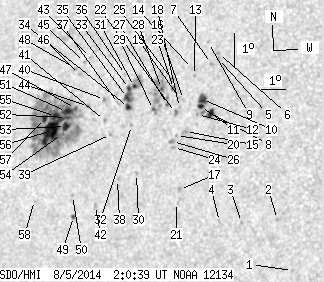

SDO HMI 2014-08-05 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.40 | 387.98 | 50.90 | 265.14 | 9.30 | 172.82 | -43.72 | 82.83 | 0.6893 | 250.0 | 193.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.60 | 5.27 | 181.24 | -35.30 | 89.46 | 0.5776 | -534.0 | -439.2 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 6.78 | 180.56 | -35.98 | 86.81 | 0.5865 | -756.0 | -618.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 6.60 | 179.20 | -37.34 | 87.06 | 0.6055 | -606.0 | -468.2 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 6.58 | 178.35 | -38.19 | 87.06 | 0.6173 | -505.0 | -484.2 | |
| 0.00 | 1.72 | 0.00 | 1.09 | 11.52 | 177.69 | -38.85 | 79.13 | 0.6282 | -815.0 | -695.2 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 11.68 | 177.66 | -38.88 | 78.89 | 0.6287 | -776.0 | -640.7 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 11.36 | 177.43 | -39.11 | 79.43 | 0.6313 | -663.0 | -609.7 | |
| 4.16 | 6.15 | 2.64 | 3.90 | 9.83 | 177.62 | -38.92 | 81.83 | 0.6276 | -954.2 | -669.1 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 11.99 | 177.21 | -39.33 | 78.46 | 0.6351 | -550.0 | -494.1 | |
| 5.06 | 12.39 | 3.23 | 7.91 | 10.24 | 177.25 | -39.29 | 81.21 | 0.6329 | -887.6 | -726.4 | |
| 2.26 | -10.00 | 1.44 | -10.00 | 10.02 | 177.20 | -39.34 | 81.56 | 0.6334 | -893.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 9.77 | 177.11 | -39.43 | 81.96 | 0.6344 | -594.0 | -508.4 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 10.95 | 176.82 | -39.72 | 80.14 | 0.6391 | -707.0 | -554.9 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 11.15 | 176.70 | -39.84 | 79.83 | 0.6408 | -566.0 | -538.4 | |
| 0.00 | 2.89 | 0.00 | 1.86 | 9.22 | 176.71 | -39.83 | 82.85 | 0.6395 | -766.0 | -642.3 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 10.19 | 176.49 | -40.05 | 81.35 | 0.6429 | -552.0 | -581.0 | |
| 0.00 | 2.08 | 0.00 | 1.34 | 7.45 | 176.68 | -39.86 | 85.63 | 0.6396 | -517.0 | -493.2 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 9.94 | 176.36 | -40.18 | 81.75 | 0.6444 | -773.0 | -613.1 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 10.24 | 176.32 | -40.22 | 81.29 | 0.6452 | -498.0 | -447.7 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 9.08 | 176.36 | -40.18 | 83.09 | 0.6440 | -524.0 | -426.7 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 7.05 | 176.60 | -39.94 | 86.26 | 0.6407 | -366.0 | -446.5 | |
| 0.00 | 1.99 | 0.00 | 1.29 | 9.77 | 176.23 | -40.32 | 82.02 | 0.6461 | -808.0 | -691.8 | |
| 0.81 | 3.53 | 0.53 | 2.29 | 10.50 | 176.04 | -40.51 | 80.91 | 0.6491 | -725.3 | -572.1 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 8.71 | 176.29 | -40.25 | 83.67 | 0.6449 | -600.0 | -412.8 | |
| 0.00 | 2.35 | 0.00 | 1.53 | 10.77 | 175.95 | -40.59 | 80.50 | 0.6503 | -723.0 | -509.6 | |
| 0.00 | 2.89 | 0.00 | 1.87 | 8.89 | 176.23 | -40.31 | 83.39 | 0.6458 | -536.0 | -431.0 | |
| 0.63 | 44.76 | 0.41 | 29.31 | 9.99 | 175.87 | -40.67 | 81.70 | 0.6509 | -616.6 | -57.6 | |
| 0.90 | -27.00 | 0.59 | -27.00 | 10.46 | 175.55 | -40.99 | 81.00 | 0.6554 | -303.3 | 999999 | |
| 0.81 | -27.00 | 0.53 | -27.00 | 9.80 | 175.32 | -41.22 | 82.02 | 0.6579 | -352.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 7.82 | 174.89 | -41.65 | 85.05 | 0.6632 | -510.0 | -364.3 | |
| 1.36 | 27.40 | 0.90 | 18.25 | 10.45 | 174.43 | -42.11 | 81.10 | 0.6698 | 1015.6 | 667.1 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 9.26 | 174.49 | -42.05 | 82.88 | 0.6685 | 616.0 | 523.4 | |
| 1.63 | -31.00 | 1.09 | -31.00 | 10.37 | 174.23 | -42.31 | 81.22 | 0.6722 | 920.2 | 999999 | |
| 2.35 | -31.00 | 1.57 | -31.00 | 9.79 | 174.29 | -42.26 | 82.08 | 0.6713 | 1006.9 | 999999 | |
| 3.89 | -31.00 | 2.60 | -31.00 | 10.09 | 174.20 | -42.34 | 81.64 | 0.6726 | 850.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.97 | 10.79 | 174.00 | -42.54 | 80.62 | 0.6755 | 557.0 | 488.4 | |
| 0.00 | 1.27 | 0.00 | 0.85 | 9.89 | 173.85 | -42.69 | 81.97 | 0.6769 | 566.0 | 569.2 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 7.58 | 174.13 | -42.41 | 85.39 | 0.6730 | 723.0 | 567.7 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 8.92 | 173.66 | -42.88 | 83.40 | 0.6790 | 593.0 | 472.8 | |
| 0.00 | 1.63 | 0.00 | 1.10 | 9.97 | 173.25 | -43.30 | 81.88 | 0.6846 | 801.0 | 661.6 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 9.33 | 173.35 | -43.19 | 82.81 | 0.6831 | 706.0 | 585.4 | |
| 0.00 | 2.17 | 0.00 | 1.47 | 6.73 | 173.31 | -43.23 | 86.63 | 0.6837 | 530.0 | 442.5 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 11.20 | 172.43 | -44.12 | 80.14 | 0.6954 | 636.0 | 547.1 | |
| 0.00 | 2.08 | 0.00 | 1.42 | 9.71 | 172.60 | -43.94 | 82.28 | 0.6925 | 750.0 | 653.4 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 11.03 | 172.20 | -44.34 | 80.40 | 0.6981 | 613.0 | 479.6 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 10.65 | 172.05 | -44.49 | 80.95 | 0.6997 | 746.0 | 572.3 | |
| 0.81 | 239.74 | 0.56 | 168.04 | 9.61 | 172.06 | -44.48 | 82.44 | 0.6992 | 921.6 | 324.8 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 10.82 | 171.84 | -44.70 | 80.72 | 0.7023 | 722.0 | 610.7 | |
| 1.09 | 1.90 | 0.75 | 1.31 | 6.33 | 172.42 | -44.13 | 87.16 | 0.6951 | -489.6 | -420.6 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 6.96 | 172.30 | -44.24 | 86.25 | 0.6963 | 575.0 | 439.6 | |
| 5.15 | -47.00 | 3.58 | -47.00 | 9.49 | 171.69 | -44.86 | 82.62 | 0.7038 | 921.6 | 999999 | |
| 1.63 | -47.00 | 1.13 | -47.00 | 9.31 | 171.72 | -44.83 | 82.88 | 0.7034 | 965.8 | 999999 | |
| 5.06 | -47.00 | 3.52 | -47.00 | 9.03 | 171.72 | -44.83 | 83.28 | 0.7033 | 945.6 | 999999 | |
| 0.45 | -47.00 | 0.31 | -47.00 | 8.81 | 171.62 | -44.92 | 83.59 | 0.7045 | 769.6 | 999999 | |
| 4.88 | -47.00 | 3.42 | -47.00 | 9.30 | 171.23 | -45.31 | 82.90 | 0.7093 | 809.5 | 999999 | |
| 28.03 | -47.00 | 19.67 | -47.00 | 8.86 | 171.13 | -45.41 | 83.52 | 0.7105 | 863.7 | 999999 | |
| 3.44 | -47.00 | 2.43 | -47.00 | 9.21 | 170.76 | -45.78 | 83.04 | 0.7149 | 557.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 6.69 | 170.68 | -45.86 | 86.56 | 0.7164 | 431.0 | 381.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
