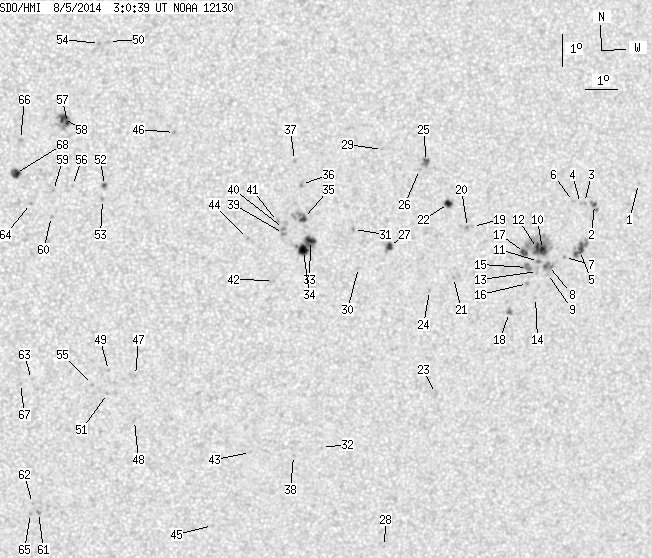

SDO HMI 2014-08-05 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.88 | 226.30 | 28.77 | 119.10 | -7.48 | 228.86 | 12.86 | 220.81 | 0.3293 | 223.3 | 312.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.64 | -5.88 | 237.07 | 21.08 | 240.78 | 0.4116 | 625.0 | 530.8 | |
| 0.90 | 4.34 | 0.49 | 2.34 | -6.48 | 235.65 | 19.66 | 237.72 | 0.3971 | 991.1 | 733.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -6.41 | 235.33 | 19.33 | 237.44 | 0.3920 | 819.0 | 621.7 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -6.43 | 235.20 | 19.21 | 237.21 | 0.3905 | 606.0 | 497.4 | |
| 5.25 | 15.38 | 2.84 | 8.32 | -7.90 | 235.23 | 19.24 | 234.18 | 0.4042 | 909.6 | 743.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.36 | 234.97 | 18.98 | 237.04 | 0.3868 | 774.0 | 639.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -8.11 | 234.75 | 18.76 | 233.07 | 0.3999 | 894.0 | 732.3 | |
| 0.00 | 7.42 | 0.00 | 4.00 | -8.34 | 234.24 | 18.25 | 231.84 | 0.3958 | 1053.0 | 780.9 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -8.59 | 234.22 | 18.23 | 231.31 | 0.3980 | 416.0 | 379.5 | |
| 6.51 | 48.93 | 3.50 | 26.24 | -7.83 | 234.03 | 18.03 | 232.54 | 0.3880 | 1042.7 | 514.3 | |
| 0.45 | 1.81 | 0.24 | 0.97 | -8.20 | 233.91 | 17.92 | 231.60 | 0.3903 | 1044.6 | 837.5 | |
| 4.25 | -10.00 | 2.28 | -10.00 | -7.79 | 233.86 | 17.87 | 232.36 | 0.3856 | 1143.6 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.12 | -8.51 | 233.90 | 17.90 | 230.94 | 0.3932 | 600.0 | 610.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -9.33 | 233.87 | 17.88 | 229.31 | 0.4012 | 694.0 | 590.2 | |
| 0.00 | 6.24 | 0.00 | 3.35 | -8.38 | 233.57 | 17.57 | 230.69 | 0.3877 | 1018.0 | 915.6 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -8.88 | 233.59 | 17.60 | 229.73 | 0.3931 | 782.0 | 578.4 | |
| 3.08 | -10.00 | 1.65 | -10.00 | -7.90 | 233.45 | 17.46 | 231.47 | 0.3814 | 1100.9 | 999999 | |
| 0.90 | 3.80 | 0.49 | 2.05 | -9.78 | 233.05 | 17.06 | 227.13 | 0.3962 | -857.0 | -642.0 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -7.04 | 231.75 | 15.76 | 230.43 | 0.3512 | 788.0 | 627.1 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -7.06 | 231.59 | 15.60 | 230.08 | 0.3495 | 867.0 | 780.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.62 | 231.20 | 15.21 | 226.08 | 0.3617 | 930.0 | 761.9 | |
| 3.44 | 4.97 | 1.81 | 2.61 | -6.29 | 230.96 | 14.97 | 230.66 | 0.3335 | -835.9 | -685.2 | |
| 0.00 | 2.53 | 0.00 | 1.37 | -12.28 | 230.80 | 14.81 | 218.74 | 0.4009 | 667.0 | 464.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -9.00 | 230.45 | 14.46 | 223.86 | 0.3575 | 778.0 | 662.2 | |
| 1.63 | 5.06 | 0.85 | 2.64 | -4.97 | 230.24 | 14.24 | 232.49 | 0.3104 | -510.1 | -168.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -5.21 | 230.02 | 14.03 | 231.44 | 0.3101 | 865.0 | 729.1 | |
| 2.80 | 6.69 | 1.47 | 3.51 | -7.59 | 229.14 | 13.15 | 224.02 | 0.3258 | 1022.5 | 768.2 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -17.22 | 229.47 | 13.48 | 209.56 | 0.4532 | -658.0 | -449.6 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -4.56 | 228.85 | 12.86 | 230.66 | 0.2880 | -765.0 | -576.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -8.22 | 228.18 | 12.19 | 220.53 | 0.3230 | 696.0 | 564.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -7.03 | 227.99 | 12.00 | 222.62 | 0.3061 | 979.0 | 851.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -13.93 | 227.24 | 11.24 | 209.10 | 0.3907 | -649.0 | -558.8 | |
| 4.79 | 23.88 | 2.48 | 12.38 | -7.34 | 226.66 | 10.66 | 218.58 | 0.2956 | 769.5 | 316.4 | |
| 6.96 | -33.00 | 3.61 | -33.00 | -7.65 | 226.44 | 10.45 | 217.38 | 0.2975 | 899.8 | 999999 | |
| 2.53 | 9.95 | 1.31 | 5.14 | -6.65 | 226.42 | 10.43 | 219.47 | 0.2841 | 978.9 | 885.5 | |
| 0.00 | 2.35 | 0.00 | 1.21 | -5.59 | 226.34 | 10.35 | 221.75 | 0.2697 | 919.0 | 714.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -4.84 | 226.11 | 10.12 | 223.03 | 0.2577 | 676.0 | 574.1 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -14.17 | 226.35 | 10.36 | 206.87 | 0.3875 | -673.0 | -585.2 | |
| 0.00 | 2.35 | 0.00 | 1.21 | -7.10 | 225.81 | 9.82 | 216.78 | 0.2838 | 781.0 | 682.7 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -6.95 | 225.81 | 9.81 | 217.11 | 0.2817 | 990.0 | 858.5 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -6.73 | 225.62 | 9.62 | 217.05 | 0.2768 | 936.0 | 777.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.57 | 225.53 | 9.54 | 213.11 | 0.3013 | 660.0 | 579.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -14.04 | 224.98 | 8.99 | 203.87 | 0.3762 | -648.0 | -507.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -7.24 | 224.69 | 8.70 | 213.25 | 0.2750 | 739.0 | 583.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -16.41 | 223.86 | 7.87 | 199.01 | 0.4050 | -639.0 | -478.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -3.91 | 222.40 | 6.41 | 212.84 | 0.2064 | -956.0 | -810.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -11.51 | 221.30 | 5.30 | 196.71 | 0.3163 | -761.0 | -631.8 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -12.95 | 221.29 | 5.30 | 195.46 | 0.3392 | -765.0 | -580.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -11.34 | 220.45 | 4.46 | 194.31 | 0.3098 | -877.0 | -669.4 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -1.09 | 220.38 | 4.38 | 211.59 | 0.1466 | -725.0 | -625.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -12.08 | 220.43 | 4.44 | 193.67 | 0.3216 | -727.0 | -581.8 | |
| 0.72 | 2.08 | 0.37 | 1.06 | -5.53 | 220.27 | 4.28 | 200.30 | 0.2149 | -901.0 | -466.3 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -5.96 | 220.21 | 4.22 | 199.37 | 0.2216 | 1044.0 | 726.7 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -1.15 | 220.10 | 4.11 | 209.76 | 0.1450 | -911.0 | -731.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.79 | 219.96 | 3.97 | 192.47 | 0.3151 | -784.0 | -690.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.52 | 219.29 | 3.30 | 195.92 | 0.2096 | -826.0 | -489.6 | |
| 2.17 | 15.38 | 1.09 | 7.74 | -3.57 | 219.13 | 3.14 | 198.09 | 0.1767 | -1064.8 | -745.9 | |
| 3.89 | -57.00 | 1.96 | -57.00 | -3.45 | 219.01 | 3.02 | 197.64 | 0.1740 | -1205.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.67 | 218.71 | 2.72 | 193.06 | 0.2097 | -903.0 | -677.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.48 | 218.65 | 2.66 | 191.98 | 0.2230 | -848.0 | -738.1 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -15.92 | 218.32 | 2.32 | 185.95 | 0.3779 | -826.0 | -677.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -15.62 | 218.12 | 2.13 | 185.54 | 0.3728 | -727.0 | -594.4 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -11.61 | 218.06 | 2.07 | 186.64 | 0.3070 | -658.0 | -585.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.07 | 218.01 | 2.01 | 189.44 | 0.2140 | -988.0 | -797.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.95 | 218.06 | 2.07 | 185.30 | 0.3780 | -803.0 | -650.5 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -4.09 | 217.70 | 1.71 | 189.56 | 0.1795 | -881.0 | -690.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -11.74 | 217.72 | 1.73 | 185.52 | 0.3085 | -788.0 | -644.0 | |
| 4.61 | 7.24 | 2.33 | 3.66 | -5.14 | 217.55 | 1.55 | 187.91 | 0.1970 | 1075.6 | 758.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
