SDO HMI 2014-08-05 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.57 | 218.53 | 25.56 | 115.09 | -7.48 | 228.67 | 13.23 | 221.87 | 0.3326 | 297.1 | 312.8 | |
|
previous
or next observation for the same group /

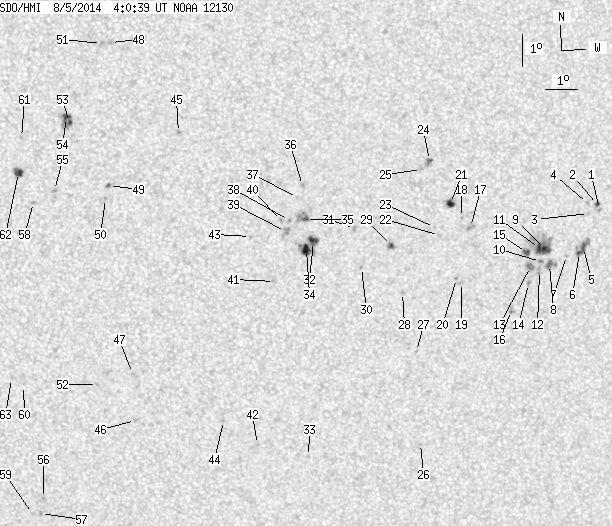

back to the solar disc SDO HMI 2014-08-05 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.93 | -6.66 | 235.77 | 20.33 | 238.20 | 0.4076 | 647.0 | 623.4 | |
| 1.09 | 2.26 | 0.59 | 1.22 | -6.51 | 235.70 | 20.25 | 238.44 | 0.4053 | 896.8 | 740.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -6.78 | 235.41 | 19.97 | 237.51 | 0.4038 | 821.0 | 584.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.46 | 235.37 | 19.93 | 238.11 | 0.4005 | 789.0 | 778.3 | |
| 2.62 | 12.84 | 1.42 | 6.98 | -7.83 | 235.30 | 19.86 | 235.18 | 0.4116 | 930.7 | 746.7 | |
| 1.81 | -5.00 | 0.98 | -5.00 | -7.99 | 235.18 | 19.73 | 234.71 | 0.4114 | 877.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -8.06 | 234.76 | 19.31 | 233.96 | 0.4067 | 791.0 | 652.6 | |
| 2.17 | 5.88 | 1.17 | 3.18 | -8.33 | 234.22 | 18.77 | 232.65 | 0.4023 | 1012.6 | 755.3 | |
| 5.88 | 42.97 | 3.17 | 23.12 | -7.85 | 234.06 | 18.62 | 233.38 | 0.3958 | 1040.9 | 582.4 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -8.22 | 233.92 | 18.48 | 232.41 | 0.3975 | 1014.0 | 921.2 | |
| 4.16 | -9.00 | 2.24 | -9.00 | -7.81 | 233.87 | 18.42 | 233.17 | 0.3929 | 1180.7 | 999999 | |
| 0.00 | 4.25 | 0.00 | 2.30 | -8.50 | 233.90 | 18.46 | 231.82 | 0.4000 | 635.0 | 629.1 | |
| 0.00 | 5.16 | 0.00 | 2.78 | -8.37 | 233.60 | 18.16 | 231.63 | 0.3949 | 1060.0 | 931.5 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -8.90 | 233.56 | 18.12 | 230.52 | 0.3998 | 825.0 | 599.8 | |
| 2.80 | -9.00 | 1.51 | -9.00 | -7.92 | 233.45 | 18.01 | 232.30 | 0.3886 | 1129.9 | 999999 | |
| 0.00 | 3.53 | 0.00 | 1.91 | -9.73 | 233.06 | 17.61 | 228.12 | 0.4023 | -848.0 | -616.3 | |
| 0.00 | 3.35 | 0.00 | 1.77 | -7.08 | 231.62 | 16.18 | 231.07 | 0.3569 | 882.0 | 800.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.76 | 231.32 | 15.88 | 231.26 | 0.3499 | -334.0 | -348.6 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -8.80 | 231.40 | 15.96 | 227.09 | 0.3725 | 681.0 | 513.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -8.67 | 231.24 | 15.79 | 227.05 | 0.3691 | 890.0 | 782.8 | |
| 3.80 | 5.43 | 2.00 | 2.86 | -6.31 | 230.96 | 15.52 | 231.62 | 0.3406 | -927.5 | -716.1 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -7.30 | 230.64 | 15.20 | 228.81 | 0.3470 | 732.0 | 563.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -7.04 | 230.47 | 15.03 | 229.05 | 0.3422 | 749.0 | 552.4 | |
| 1.09 | 5.07 | 0.57 | 2.65 | -4.96 | 230.26 | 14.82 | 233.61 | 0.3178 | -657.1 | -181.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -5.23 | 230.01 | 14.57 | 232.46 | 0.3173 | 891.0 | 775.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -13.90 | 230.36 | 14.91 | 216.47 | 0.4221 | -318.0 | -415.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -10.94 | 230.06 | 14.62 | 220.59 | 0.3824 | 746.0 | 578.8 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -9.06 | 229.53 | 14.09 | 223.00 | 0.3540 | 826.0 | 621.9 | |
| 1.81 | 4.25 | 0.95 | 2.23 | -7.57 | 229.13 | 13.69 | 225.21 | 0.3319 | 1078.7 | 755.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.23 | 228.20 | 12.76 | 221.80 | 0.3294 | 892.0 | 737.6 | |
| 0.00 | 2.26 | 0.00 | 1.18 | -7.01 | 227.95 | 12.50 | 223.84 | 0.3116 | 968.0 | 722.2 | |
| 4.52 | 25.60 | 2.35 | 13.30 | -7.35 | 226.67 | 11.23 | 220.01 | 0.3017 | 720.6 | 439.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -14.22 | 226.77 | 11.33 | 208.90 | 0.3955 | -627.0 | -495.7 | |
| 6.33 | -32.00 | 3.29 | -32.00 | -7.63 | 226.46 | 11.02 | 218.88 | 0.3031 | 980.9 | 999999 | |
| 1.72 | 10.49 | 0.89 | 5.43 | -6.69 | 226.41 | 10.96 | 220.78 | 0.2904 | 997.2 | 870.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -5.63 | 226.29 | 10.85 | 223.00 | 0.2759 | 941.0 | 701.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -6.00 | 226.14 | 10.70 | 221.70 | 0.2788 | 861.0 | 677.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.71 | 225.91 | 10.47 | 219.42 | 0.2854 | 968.0 | 749.6 | |
| 0.00 | 5.25 | 0.00 | 2.71 | -7.05 | 225.79 | 10.35 | 218.35 | 0.2886 | 762.0 | 714.1 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -6.71 | 225.66 | 10.22 | 218.75 | 0.2827 | 925.0 | 742.9 | |
| 0.00 | 2.71 | 0.00 | 1.41 | -8.61 | 225.49 | 10.04 | 214.39 | 0.3065 | 613.0 | 537.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -13.80 | 225.12 | 9.68 | 205.76 | 0.3773 | -160.0 | -233.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.19 | 224.71 | 9.26 | 215.01 | 0.2795 | 641.0 | 480.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.00 | 224.02 | 8.57 | 204.04 | 0.3581 | -819.0 | -546.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -3.92 | 222.44 | 7.00 | 215.14 | 0.2121 | -973.0 | -834.5 | |
| 0.00 | 2.44 | 0.00 | 1.29 | -12.96 | 221.25 | 5.80 | 196.84 | 0.3416 | -796.0 | -643.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -11.45 | 221.12 | 5.68 | 197.88 | 0.3172 | -845.0 | -664.1 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -1.13 | 220.35 | 4.91 | 214.40 | 0.1520 | -885.0 | -702.1 | |
| 0.63 | 2.35 | 0.32 | 1.19 | -5.53 | 220.31 | 4.86 | 202.79 | 0.2187 | -817.7 | -538.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.94 | 220.22 | 4.77 | 201.73 | 0.2245 | 949.0 | 729.9 | |
| 0.00 | 1.72 | 0.00 | 0.86 | -1.15 | 220.07 | 4.63 | 212.77 | 0.1498 | -785.0 | -698.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.79 | 220.04 | 4.59 | 194.35 | 0.3177 | -830.0 | -696.2 | |
| 1.45 | 13.48 | 0.73 | 6.79 | -3.57 | 219.10 | 3.66 | 200.84 | 0.1798 | -1047.7 | -839.5 | |
| 2.71 | -53.00 | 1.37 | -53.00 | -3.42 | 219.01 | 3.57 | 200.67 | 0.1768 | -1213.5 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -5.68 | 218.65 | 3.21 | 195.31 | 0.2118 | -962.0 | -796.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -15.46 | 218.40 | 2.95 | 187.71 | 0.3718 | -876.0 | -762.6 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -15.96 | 218.31 | 2.87 | 187.31 | 0.3796 | -775.0 | -664.8 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -6.04 | 218.01 | 2.57 | 191.99 | 0.2154 | -956.0 | -736.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -15.95 | 218.06 | 2.61 | 186.67 | 0.3790 | -812.0 | -606.9 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -11.81 | 217.73 | 2.29 | 187.26 | 0.3107 | -559.0 | -546.8 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -4.03 | 217.64 | 2.20 | 192.30 | 0.1802 | -881.0 | -632.4 | |
| 3.98 | 7.06 | 2.01 | 3.57 | -5.11 | 217.55 | 2.11 | 190.69 | 0.1981 | 1094.0 | 861.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -11.58 | 217.36 | 1.92 | 186.17 | 0.3063 | -742.0 | -604.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
