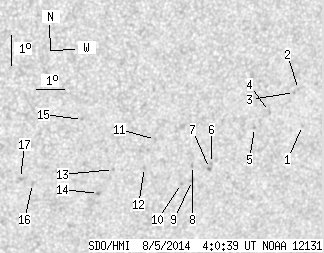

SDO HMI 2014-08-05 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.65 | 0.00 | 14.20 | -18.86 | 239.65 | 24.21 | 223.07 | 0.5697 | 260.3 | 220.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.56 | -18.11 | 244.08 | 28.63 | 228.90 | 0.6066 | 342.0 | 320.6 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -16.90 | 243.72 | 28.28 | 230.16 | 0.5926 | 544.0 | 391.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -17.00 | 243.59 | 28.15 | 229.91 | 0.5920 | 698.0 | 518.3 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -17.58 | 242.79 | 27.35 | 228.32 | 0.5885 | 687.0 | 499.7 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -18.09 | 242.33 | 26.89 | 227.18 | 0.5883 | 581.0 | 491.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -19.22 | 240.98 | 25.54 | 224.28 | 0.5852 | 753.0 | 530.0 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -19.39 | 240.94 | 25.49 | 224.02 | 0.5864 | 693.0 | 577.5 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -19.26 | 240.31 | 24.86 | 223.49 | 0.5790 | 833.0 | 704.9 | |
| 0.00 | 2.26 | 0.00 | 1.38 | -19.76 | 240.39 | 24.95 | 222.95 | 0.5848 | 732.0 | 629.1 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -19.85 | 240.01 | 24.57 | 222.42 | 0.5820 | 782.0 | 714.4 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -18.32 | 238.86 | 23.42 | 223.00 | 0.5554 | 771.0 | 571.6 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -19.24 | 238.61 | 23.17 | 221.52 | 0.5625 | 523.0 | 425.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -19.26 | 237.53 | 22.09 | 220.17 | 0.5524 | -610.0 | -496.7 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -20.05 | 237.12 | 21.68 | 218.69 | 0.5572 | -773.0 | -641.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -17.54 | 236.24 | 20.79 | 220.67 | 0.5214 | -779.0 | -542.8 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -19.62 | 234.78 | 19.34 | 216.09 | 0.5316 | -646.0 | -515.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -19.44 | 234.35 | 18.91 | 215.70 | 0.5257 | -706.0 | -579.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
