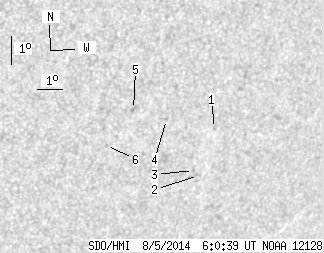

SDO HMI 2014-08-05 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.60 | 0.00 | 5.81 | -20.37 | 248.67 | 34.32 | 230.99 | 0.6822 | 596.8 | 496.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.62 | -20.03 | 250.40 | 36.05 | 232.71 | 0.6972 | 587.0 | 482.3 | |
| 0.00 | 1.99 | 0.00 | 1.39 | -21.61 | 250.19 | 35.84 | 230.67 | 0.7060 | 654.0 | 570.0 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -21.43 | 249.93 | 35.58 | 230.70 | 0.7023 | 635.0 | 513.9 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -19.60 | 248.39 | 34.04 | 231.72 | 0.6740 | 530.0 | 382.0 | |
| 0.00 | 2.17 | 0.00 | 1.42 | -19.18 | 247.01 | 32.66 | 231.14 | 0.6569 | 666.0 | 519.3 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -20.34 | 246.24 | 31.89 | 229.05 | 0.6582 | 509.0 | 438.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
