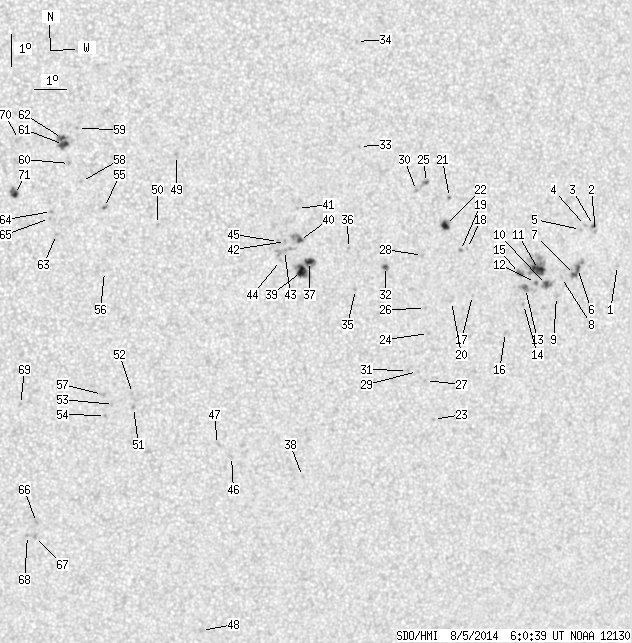

SDO HMI 2014-08-05 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.11 | 221.41 | 25.42 | 117.08 | -7.63 | 228.38 | 14.03 | 223.54 | 0.3436 | 223.1 | 276.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.70 | -7.80 | 236.64 | 22.29 | 238.32 | 0.4435 | 574.0 | 464.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -6.71 | 235.86 | 21.51 | 239.57 | 0.4241 | 796.0 | 591.3 | |
| 0.90 | 1.90 | 0.49 | 1.04 | -6.52 | 235.78 | 21.44 | 239.87 | 0.4216 | 951.2 | 775.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -6.51 | 235.52 | 21.17 | 239.58 | 0.4179 | 809.0 | 682.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -6.63 | 235.36 | 21.01 | 239.14 | 0.4167 | 649.0 | 613.0 | |
| 2.08 | 11.40 | 1.14 | 6.24 | -7.84 | 235.32 | 20.97 | 236.63 | 0.4264 | 917.5 | 742.3 | |
| 1.81 | -6.00 | 0.99 | -6.00 | -8.03 | 235.23 | 20.88 | 236.15 | 0.4268 | 835.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -8.10 | 234.81 | 20.46 | 235.45 | 0.4219 | 836.0 | 722.3 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -8.70 | 234.68 | 20.33 | 234.12 | 0.4256 | 660.0 | 437.2 | |
| 2.53 | 8.14 | 1.38 | 4.44 | -8.30 | 234.33 | 19.98 | 234.41 | 0.4175 | 903.1 | 696.1 | |
| 9.59 | 40.98 | 5.20 | 22.20 | -7.82 | 234.04 | 19.69 | 234.97 | 0.4094 | 1098.2 | 586.2 | |
| 0.36 | 1.45 | 0.20 | 0.79 | -8.23 | 233.97 | 19.62 | 234.05 | 0.4122 | 1024.8 | 922.5 | |
| 0.00 | 6.97 | 0.00 | 3.78 | -8.40 | 233.65 | 19.30 | 233.26 | 0.4097 | 1014.0 | 868.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -8.91 | 233.61 | 19.26 | 232.22 | 0.4141 | 782.0 | 688.6 | |
| 1.90 | -11.00 | 1.03 | -11.00 | -7.93 | 233.43 | 19.08 | 233.90 | 0.4024 | 1156.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -9.77 | 233.07 | 18.72 | 229.78 | 0.4160 | -842.0 | -639.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -8.56 | 231.94 | 17.59 | 230.33 | 0.3898 | 687.0 | 602.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -7.08 | 231.71 | 17.36 | 233.05 | 0.3722 | 841.0 | 626.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -7.14 | 231.49 | 17.14 | 232.57 | 0.3699 | 909.0 | 810.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.73 | 231.27 | 16.92 | 228.90 | 0.3834 | 891.0 | 665.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -5.48 | 231.08 | 16.74 | 235.67 | 0.3486 | 579.0 | 487.2 | |
| 4.43 | 7.06 | 2.35 | 3.74 | -6.34 | 230.98 | 16.63 | 233.49 | 0.3555 | -973.4 | -726.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -12.46 | 230.89 | 16.54 | 221.56 | 0.4209 | 802.0 | 620.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.72 | 230.57 | 16.23 | 225.79 | 0.3859 | 705.0 | 484.8 | |
| 0.63 | 4.07 | 0.33 | 2.14 | -4.99 | 230.34 | 15.99 | 235.62 | 0.3339 | -816.7 | -388.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.92 | 230.44 | 16.09 | 227.08 | 0.3755 | 664.0 | 533.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -11.21 | 230.56 | 16.21 | 223.07 | 0.4026 | 654.0 | 527.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -7.26 | 230.28 | 15.93 | 230.24 | 0.3557 | 898.0 | 707.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -10.91 | 230.28 | 15.93 | 223.10 | 0.3962 | 752.0 | 643.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -5.22 | 230.03 | 15.68 | 234.50 | 0.3320 | 881.0 | 679.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -10.87 | 229.96 | 15.61 | 222.58 | 0.3922 | 815.0 | 720.3 | |
| 1.45 | 3.08 | 0.76 | 1.62 | -7.56 | 229.11 | 14.76 | 227.40 | 0.3447 | 1120.1 | 871.2 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -3.81 | 228.20 | 13.85 | 234.79 | 0.2937 | -753.0 | -606.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -0.58 | 228.08 | 13.73 | 244.57 | 0.2640 | -675.0 | -569.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -8.26 | 228.19 | 13.84 | 224.07 | 0.3418 | 841.0 | 678.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -6.97 | 227.92 | 13.57 | 226.29 | 0.3237 | 958.0 | 693.9 | |
| 4.25 | 26.51 | 2.22 | 13.83 | -7.34 | 226.71 | 12.36 | 222.76 | 0.3140 | 796.8 | 347.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -14.18 | 226.76 | 12.42 | 211.23 | 0.4037 | -739.0 | -543.8 | |
| 7.42 | -37.00 | 3.87 | -37.00 | -7.65 | 226.46 | 12.12 | 221.53 | 0.3151 | 960.4 | 999999 | |
| 2.08 | 9.23 | 1.08 | 4.79 | -6.68 | 226.38 | 12.03 | 223.46 | 0.3022 | 1054.4 | 929.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.68 | 226.29 | 11.94 | 225.63 | 0.2893 | 879.0 | 701.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -6.70 | 225.94 | 11.59 | 222.34 | 0.2975 | 904.0 | 776.9 | |
| 0.00 | 9.86 | 0.00 | 5.12 | -6.98 | 225.91 | 11.57 | 221.65 | 0.3007 | 964.0 | 664.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -7.29 | 225.80 | 11.45 | 220.68 | 0.3033 | 708.0 | 568.8 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -6.70 | 225.72 | 11.37 | 221.81 | 0.2950 | 954.0 | 673.7 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -13.48 | 224.46 | 10.11 | 207.14 | 0.3759 | -710.0 | -604.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -13.08 | 224.00 | 9.65 | 206.56 | 0.3668 | -721.0 | -665.2 | |
| 0.00 | 2.35 | 0.00 | 1.31 | -19.20 | 223.78 | 9.43 | 199.99 | 0.4546 | -655.0 | -532.5 | |
| 0.00 | 2.08 | 0.00 | 1.06 | -3.97 | 222.52 | 8.17 | 219.29 | 0.2248 | -959.0 | -721.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.09 | 221.95 | 7.61 | 212.09 | 0.2488 | 783.0 | 604.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -11.85 | 221.32 | 6.97 | 201.15 | 0.3306 | -762.0 | -619.0 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -11.40 | 221.28 | 6.93 | 201.54 | 0.3234 | -759.0 | -622.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -11.75 | 220.69 | 6.34 | 199.50 | 0.3254 | -495.0 | -504.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -12.10 | 220.45 | 6.10 | 198.46 | 0.3295 | -743.0 | -567.2 | |
| 0.45 | 2.17 | 0.23 | 1.10 | -5.54 | 220.32 | 5.97 | 207.27 | 0.2269 | -802.6 | -595.1 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -7.54 | 220.34 | 5.99 | 203.78 | 0.2577 | 684.0 | 441.0 | |
| 0.00 | 2.89 | 0.00 | 1.51 | -11.42 | 220.34 | 5.99 | 198.83 | 0.3184 | -826.0 | -706.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.73 | 219.60 | 5.26 | 206.03 | 0.2090 | -856.0 | -572.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -3.09 | 219.47 | 5.12 | 209.32 | 0.1830 | -911.0 | -682.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -4.17 | 219.23 | 4.88 | 205.58 | 0.1976 | -794.0 | -634.1 | |
| 4.25 | 13.03 | 2.14 | 6.57 | -3.58 | 219.05 | 4.70 | 206.04 | 0.1871 | -1083.7 | -852.1 | |
| 1.63 | -61.00 | 0.82 | -61.00 | -3.39 | 219.02 | 4.67 | 206.33 | 0.1839 | -1178.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.37 | 218.85 | 4.50 | 199.93 | 0.2298 | -928.0 | -711.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.65 | 218.69 | 4.34 | 200.38 | 0.2174 | -1029.0 | -772.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.87 | 218.63 | 4.28 | 199.78 | 0.2205 | -794.0 | -680.3 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.53 | 218.35 | 4.00 | 190.35 | 0.3757 | -866.0 | -747.4 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -15.99 | 218.32 | 3.98 | 190.07 | 0.3829 | -749.0 | -609.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.96 | 218.07 | 3.72 | 189.45 | 0.3817 | -875.0 | -656.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -11.72 | 217.79 | 3.44 | 190.90 | 0.3123 | -896.0 | -707.3 | |
| 0.00 | 3.26 | 0.00 | 1.64 | -3.41 | 217.67 | 3.32 | 199.37 | 0.1753 | -745.0 | -684.4 | |
| 2.35 | 6.60 | 1.19 | 3.34 | -5.11 | 217.59 | 3.24 | 196.19 | 0.2027 | 1113.1 | 927.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
