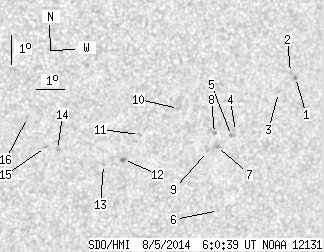

SDO HMI 2014-08-05 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.18 | 0.00 | 12.84 | -19.27 | 238.98 | 24.63 | 223.06 | 0.5777 | 168.1 | 117.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.67 | -17.58 | 242.89 | 28.54 | 229.51 | 0.6011 | 790.0 | 706.0 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -17.40 | 242.68 | 28.33 | 229.54 | 0.5974 | 592.0 | 555.4 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -18.04 | 242.35 | 28.00 | 228.37 | 0.5995 | 642.0 | 552.0 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -19.28 | 241.01 | 26.66 | 225.41 | 0.5969 | 621.0 | 568.4 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -19.40 | 240.89 | 26.54 | 225.12 | 0.5969 | 718.0 | 591.4 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -21.95 | 240.90 | 26.55 | 222.06 | 0.6211 | 596.0 | 508.4 | |
| 0.00 | 2.71 | 0.00 | 1.67 | -19.75 | 240.41 | 26.06 | 224.18 | 0.5955 | 758.0 | 573.3 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -19.31 | 240.26 | 25.91 | 224.58 | 0.5898 | 791.0 | 626.3 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -19.90 | 240.11 | 25.76 | 223.67 | 0.5941 | 768.0 | 663.0 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -18.40 | 238.83 | 24.49 | 224.14 | 0.5668 | 765.0 | 566.4 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -19.21 | 237.58 | 23.24 | 221.64 | 0.5628 | -699.0 | -541.6 | |
| 0.00 | 2.80 | 0.00 | 1.68 | -20.03 | 237.15 | 22.80 | 220.10 | 0.5673 | -834.0 | -645.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -20.17 | 236.47 | 22.12 | 219.10 | 0.5625 | -636.0 | -535.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -19.59 | 234.79 | 20.44 | 217.62 | 0.5410 | -708.0 | -633.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -19.51 | 234.36 | 20.01 | 217.15 | 0.5363 | -788.0 | -647.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -18.48 | 233.62 | 19.27 | 217.37 | 0.5177 | -687.0 | -510.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
