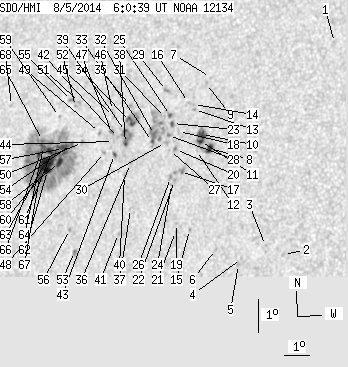

SDO HMI 2014-08-05 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.39 | 407.88 | 52.50 | 269.48 | 9.37 | 172.74 | -41.61 | 82.67 | 0.6624 | 225.5 | 178.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.48 | 13.36 | 181.82 | -32.53 | 74.72 | 0.5445 | -697.0 | -589.3 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 6.80 | 180.68 | -33.67 | 86.84 | 0.5534 | -642.0 | -581.3 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 7.04 | 180.00 | -34.35 | 86.41 | 0.5633 | -559.0 | -471.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 6.59 | 179.14 | -35.21 | 87.17 | 0.5757 | -607.0 | -511.8 | |
| 0.00 | 2.17 | 0.00 | 1.31 | 6.40 | 179.04 | -35.31 | 87.50 | 0.5771 | -461.0 | -391.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 6.81 | 178.13 | -36.21 | 86.77 | 0.5898 | -661.0 | -552.8 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 12.02 | 177.31 | -37.04 | 78.07 | 0.6044 | -595.0 | -465.0 | |
| 4.25 | 22.26 | 2.62 | 13.78 | 9.86 | 177.58 | -36.77 | 81.63 | 0.5983 | -972.4 | -667.5 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 11.83 | 177.18 | -37.17 | 78.41 | 0.6059 | -482.0 | -432.5 | |
| 5.16 | -8.00 | 3.20 | -8.00 | 10.26 | 177.21 | -37.13 | 80.99 | 0.6037 | -971.1 | 999999 | |
| 2.71 | -8.00 | 1.68 | -8.00 | 10.05 | 177.20 | -37.14 | 81.35 | 0.6036 | -956.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 9.77 | 177.09 | -37.26 | 81.83 | 0.6050 | -595.0 | -536.3 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 11.01 | 176.84 | -37.51 | 79.81 | 0.6095 | -885.0 | -783.7 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 11.16 | 176.77 | -37.57 | 79.57 | 0.6105 | -688.0 | -578.5 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 7.35 | 177.09 | -37.26 | 85.83 | 0.6043 | -664.0 | -502.0 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 11.20 | 176.57 | -37.78 | 79.52 | 0.6134 | -641.0 | -552.6 | |
| 0.00 | 5.07 | 0.00 | 3.17 | 9.09 | 176.55 | -37.80 | 82.98 | 0.6120 | -748.0 | -655.6 | |
| 0.00 | 1.99 | 0.00 | 1.25 | 10.30 | 176.31 | -38.04 | 81.02 | 0.6160 | -472.0 | -463.3 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 7.50 | 176.57 | -37.78 | 85.58 | 0.6114 | -555.0 | -485.5 | |
| 0.00 | 1.81 | 0.00 | 1.14 | 9.74 | 176.27 | -38.08 | 81.92 | 0.6162 | -825.0 | -644.8 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 7.26 | 176.55 | -37.79 | 85.98 | 0.6116 | -423.0 | -410.4 | |
| 0.00 | 1.72 | 0.00 | 1.08 | 8.80 | 176.35 | -38.00 | 83.46 | 0.6146 | -793.0 | -675.6 | |
| 0.90 | 2.08 | 0.57 | 1.31 | 10.53 | 176.04 | -38.31 | 80.68 | 0.6198 | -680.2 | -592.7 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 8.67 | 176.25 | -38.10 | 83.67 | 0.6160 | -618.0 | -490.3 | |
| 0.72 | 1.81 | 0.46 | 1.14 | 10.76 | 175.93 | -38.42 | 80.30 | 0.6216 | -627.0 | -522.8 | |
| 0.00 | 2.35 | 0.00 | 1.48 | 8.88 | 176.18 | -38.17 | 83.33 | 0.6169 | -626.0 | -475.1 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 9.70 | 176.04 | -38.31 | 82.02 | 0.6193 | -528.0 | -442.7 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 10.15 | 175.94 | -38.41 | 81.29 | 0.6210 | -727.0 | -627.6 | |
| 0.00 | 2.26 | 0.00 | 1.43 | 11.51 | 175.65 | -38.70 | 79.13 | 0.6261 | -713.0 | -526.0 | |
| 0.00 | 1.99 | 0.00 | 1.26 | 9.93 | 175.85 | -38.50 | 81.65 | 0.6220 | -587.0 | -479.8 | |
| 0.00 | 1.81 | 0.00 | 1.14 | 10.69 | 175.74 | -38.61 | 80.44 | 0.6241 | -218.0 | -180.6 | |
| 2.08 | 32.03 | 1.32 | 20.34 | 10.15 | 175.38 | -38.97 | 81.35 | 0.6284 | 222.8 | -47.4 | |
| 1.00 | -32.00 | 0.63 | -32.00 | 9.93 | 175.33 | -39.02 | 81.70 | 0.6289 | -352.5 | 999999 | |
| 4.34 | 13.75 | 2.80 | 8.85 | 10.48 | 174.37 | -39.98 | 80.90 | 0.6421 | 1000.6 | 631.7 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 10.97 | 174.29 | -40.06 | 80.15 | 0.6435 | 847.0 | 672.9 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 9.20 | 174.55 | -39.80 | 82.89 | 0.6390 | 771.0 | 657.7 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 7.84 | 174.72 | -39.63 | 85.03 | 0.6365 | -334.0 | -304.8 | |
| 1.36 | 12.30 | 0.88 | 7.94 | 9.80 | 174.27 | -40.08 | 81.97 | 0.6430 | 968.1 | 687.1 | |
| 1.81 | -38.00 | 1.17 | -38.00 | 10.16 | 174.21 | -40.14 | 81.41 | 0.6439 | 999.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 8.83 | 174.36 | -39.99 | 83.49 | 0.6414 | -493.0 | -284.1 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 7.05 | 174.32 | -40.03 | 86.27 | 0.6419 | 743.0 | 614.0 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 9.96 | 173.96 | -40.39 | 81.74 | 0.6472 | 850.0 | 773.5 | |
| 0.90 | 2.17 | 0.59 | 1.41 | 9.44 | 173.87 | -40.48 | 82.56 | 0.6481 | 712.3 | 553.5 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 9.83 | 173.77 | -40.57 | 81.96 | 0.6495 | 628.0 | 451.3 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 10.59 | 173.66 | -40.69 | 80.80 | 0.6515 | 465.0 | 371.1 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 10.76 | 173.59 | -40.76 | 80.53 | 0.6525 | 506.0 | 513.1 | |
| 0.00 | 2.26 | 0.00 | 1.47 | 10.12 | 173.65 | -40.70 | 81.51 | 0.6513 | 889.0 | 765.0 | |
| 0.00 | 1.72 | 0.00 | 1.12 | 9.47 | 173.46 | -40.89 | 82.53 | 0.6535 | 770.0 | 529.1 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 10.06 | 173.17 | -41.18 | 81.63 | 0.6576 | 859.0 | 660.9 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 9.71 | 172.52 | -41.83 | 82.20 | 0.6658 | 762.0 | 702.6 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 10.92 | 172.20 | -42.15 | 80.41 | 0.6706 | 754.0 | 599.3 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 10.78 | 172.05 | -42.30 | 80.62 | 0.6723 | 717.0 | 584.3 | |
| 0.36 | 3.08 | 0.24 | 2.03 | 6.38 | 172.60 | -41.75 | 87.22 | 0.6648 | -721.0 | -550.8 | |
| 0.81 | 254.76 | 0.54 | 172.27 | 9.62 | 172.07 | -42.28 | 82.36 | 0.6715 | 940.2 | 305.3 | |
| 0.00 | 2.17 | 0.00 | 1.45 | 10.95 | 171.85 | -42.50 | 80.38 | 0.6750 | 705.0 | 684.0 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 7.04 | 172.33 | -42.02 | 86.23 | 0.6681 | 678.0 | 654.5 | |
| 7.69 | -54.00 | 5.15 | -54.00 | 9.47 | 171.76 | -42.59 | 82.59 | 0.6754 | 959.5 | 999999 | |
| 4.43 | -54.00 | 2.97 | -54.00 | 9.04 | 171.65 | -42.69 | 83.24 | 0.6766 | 986.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 10.43 | 171.43 | -42.91 | 81.18 | 0.6799 | 589.0 | 473.3 | |
| 2.89 | -54.00 | 1.95 | -54.00 | 8.98 | 171.33 | -43.02 | 83.32 | 0.6808 | 1042.3 | 999999 | |
| 9.41 | -54.00 | 6.35 | -54.00 | 9.32 | 171.28 | -43.07 | 82.83 | 0.6815 | 854.5 | 999999 | |
| 5.52 | -54.00 | 3.73 | -54.00 | 8.76 | 171.19 | -43.16 | 83.65 | 0.6825 | 982.9 | 999999 | |
| 10.31 | -54.00 | 6.99 | -54.00 | 8.96 | 171.03 | -43.32 | 83.36 | 0.6845 | 880.9 | 999999 | |
| 2.53 | -54.00 | 1.72 | -54.00 | 9.48 | 170.91 | -43.44 | 82.61 | 0.6861 | 593.1 | 999999 | |
| 0.72 | -54.00 | 0.49 | -54.00 | 9.65 | 170.84 | -43.51 | 82.35 | 0.6871 | 546.8 | 999999 | |
| 4.79 | -54.00 | 3.26 | -54.00 | 9.25 | 170.82 | -43.53 | 82.94 | 0.6873 | 592.9 | 999999 | |
| 4.70 | -54.00 | 3.19 | -54.00 | 8.56 | 170.88 | -43.47 | 83.96 | 0.6864 | 687.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 10.62 | 169.33 | -45.02 | 81.03 | 0.7061 | 484.0 | 398.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
