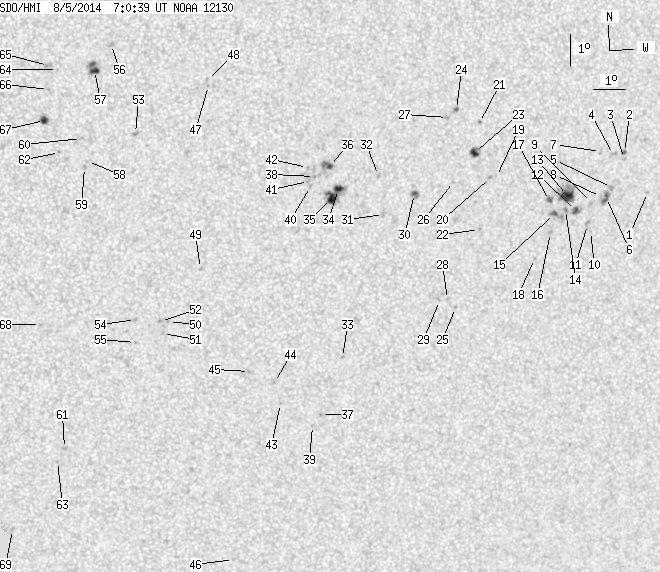

SDO HMI 2014-08-05 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.33 | 204.72 | 23.51 | 108.56 | -7.73 | 228.19 | 14.39 | 224.00 | 0.3497 | 148.2 | 170.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.70 | -7.83 | 236.69 | 22.89 | 238.96 | 0.4516 | 773.0 | 494.5 | |
| 0.63 | 2.17 | 0.35 | 1.19 | -6.54 | 235.86 | 22.06 | 240.55 | 0.4303 | 919.6 | 737.9 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -6.76 | 235.87 | 22.07 | 240.12 | 0.4321 | 715.0 | 542.5 | |
| 0.00 | 3.80 | 0.00 | 2.08 | -6.59 | 235.50 | 21.70 | 240.04 | 0.4257 | 700.0 | 543.7 | |
| 0.00 | 2.35 | 0.00 | 1.29 | -7.62 | 235.49 | 21.68 | 237.95 | 0.4339 | 729.0 | 645.7 | |
| 2.35 | 6.60 | 1.29 | 3.63 | -7.92 | 235.34 | 21.54 | 237.17 | 0.4345 | 848.7 | 776.5 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -6.48 | 235.07 | 21.27 | 239.76 | 0.4189 | 638.0 | 630.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -7.88 | 235.14 | 21.34 | 237.00 | 0.4315 | 711.0 | 581.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.06 | 234.85 | 21.05 | 236.30 | 0.4292 | 834.0 | 619.2 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -8.97 | 234.87 | 21.07 | 234.57 | 0.4376 | -488.0 | -340.9 | |
| 0.00 | 3.17 | 0.00 | 1.74 | -8.75 | 234.76 | 20.95 | 234.85 | 0.4341 | 581.0 | 534.4 | |
| 2.17 | 5.52 | 1.19 | 3.02 | -8.29 | 234.33 | 20.53 | 235.18 | 0.4246 | 912.1 | 707.9 | |
| 10.04 | 26.87 | 5.47 | 14.62 | -7.81 | 234.05 | 20.25 | 235.75 | 0.4165 | 1102.9 | 634.3 | |
| 0.45 | 1.72 | 0.25 | 0.94 | -8.25 | 234.00 | 20.20 | 234.82 | 0.4199 | 1059.6 | 890.1 | |
| 1.18 | 7.24 | 0.64 | 3.94 | -8.36 | 233.65 | 19.85 | 234.12 | 0.4164 | 1043.4 | 770.5 | |
| 0.00 | 2.35 | 0.00 | 1.28 | -8.95 | 233.55 | 19.75 | 232.83 | 0.4207 | 971.0 | 645.8 | |
| 1.18 | 3.80 | 0.64 | 2.06 | -7.94 | 233.47 | 19.67 | 234.69 | 0.4102 | 1181.2 | 949.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -9.75 | 233.07 | 19.27 | 230.63 | 0.4225 | -806.0 | -650.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -7.13 | 231.71 | 17.91 | 233.80 | 0.3797 | 823.0 | 648.8 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -7.15 | 231.52 | 17.72 | 233.45 | 0.3775 | 937.0 | 731.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -5.43 | 231.11 | 17.31 | 236.69 | 0.3559 | 698.0 | 559.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -8.77 | 231.23 | 17.43 | 229.66 | 0.3901 | 873.0 | 697.0 | |
| 3.62 | 8.14 | 1.92 | 4.33 | -6.36 | 230.98 | 17.18 | 234.34 | 0.3627 | -1018.9 | -747.4 | |
| 0.63 | 1.99 | 0.33 | 1.05 | -5.00 | 230.36 | 16.56 | 236.53 | 0.3419 | -792.6 | -651.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -11.22 | 230.59 | 16.79 | 224.05 | 0.4092 | 708.0 | 547.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -7.24 | 230.33 | 16.53 | 231.33 | 0.3631 | 775.0 | 643.1 | |
| 0.00 | 2.08 | 0.00 | 1.10 | -5.24 | 230.08 | 16.28 | 235.49 | 0.3403 | 819.0 | 619.5 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -10.96 | 230.31 | 16.51 | 224.04 | 0.4031 | 814.0 | 599.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -10.98 | 230.06 | 16.26 | 223.55 | 0.4006 | 747.0 | 636.6 | |
| 1.27 | 4.16 | 0.67 | 2.20 | -7.58 | 229.10 | 15.30 | 228.40 | 0.3513 | 1086.8 | 837.9 | |
| 0.00 | 2.62 | 0.00 | 1.38 | -8.21 | 228.14 | 14.34 | 225.20 | 0.3469 | 769.0 | 446.3 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -6.98 | 227.94 | 14.14 | 227.44 | 0.3307 | 988.0 | 705.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -12.71 | 227.03 | 13.23 | 214.96 | 0.3913 | -853.0 | -620.9 | |
| 4.43 | 25.60 | 2.32 | 13.39 | -7.35 | 226.69 | 12.89 | 223.94 | 0.3202 | 839.0 | 382.8 | |
| 7.33 | -34.00 | 3.83 | -34.00 | -7.66 | 226.48 | 12.68 | 222.81 | 0.3215 | 1024.7 | 999999 | |
| 1.99 | 9.14 | 1.04 | 4.75 | -6.66 | 226.39 | 12.59 | 224.82 | 0.3085 | 1052.9 | 918.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -14.54 | 226.43 | 12.63 | 211.19 | 0.4103 | -723.0 | -726.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.96 | 225.93 | 12.13 | 223.06 | 0.3068 | 866.0 | 774.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.89 | 226.19 | 12.39 | 210.26 | 0.4132 | -781.0 | -579.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -7.27 | 225.81 | 12.01 | 222.09 | 0.3092 | 687.0 | 565.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -7.11 | 225.74 | 11.94 | 222.28 | 0.3065 | 768.0 | 674.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -6.67 | 225.70 | 11.90 | 223.16 | 0.3007 | 809.0 | 636.9 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -14.15 | 225.12 | 11.32 | 208.98 | 0.3945 | -766.0 | -657.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -13.47 | 224.90 | 11.10 | 209.37 | 0.3832 | -892.0 | -744.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -13.09 | 224.09 | 10.28 | 208.03 | 0.3717 | -927.0 | -734.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.27 | 223.89 | 10.09 | 201.19 | 0.4593 | -752.0 | -589.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -4.06 | 222.58 | 8.78 | 221.07 | 0.2329 | -774.0 | -614.0 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -3.88 | 222.55 | 8.75 | 221.49 | 0.2301 | -839.0 | -604.8 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -9.78 | 222.43 | 8.63 | 208.55 | 0.3109 | -641.0 | -612.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -11.44 | 221.48 | 7.68 | 203.57 | 0.3288 | -780.0 | -611.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -11.82 | 221.30 | 7.50 | 202.63 | 0.3334 | -745.0 | -627.7 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -11.44 | 221.23 | 7.43 | 202.89 | 0.3271 | -845.0 | -733.3 | |
| 0.00 | 2.44 | 0.00 | 1.24 | -5.52 | 220.35 | 6.55 | 209.55 | 0.2312 | -850.0 | -611.7 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -11.36 | 220.44 | 6.64 | 200.77 | 0.3211 | -959.0 | -802.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -12.10 | 220.46 | 6.66 | 200.02 | 0.3326 | -740.0 | -588.7 | |
| 0.00 | 2.99 | 0.00 | 1.50 | -2.76 | 219.59 | 5.79 | 213.40 | 0.1840 | -839.0 | -681.4 | |
| 3.62 | 11.31 | 1.83 | 5.71 | -3.55 | 219.08 | 5.28 | 208.83 | 0.1912 | -1120.1 | -960.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -6.37 | 218.88 | 5.08 | 202.26 | 0.2334 | -1009.0 | -798.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.56 | 218.79 | 4.99 | 201.61 | 0.2358 | -935.0 | -830.7 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -5.65 | 218.69 | 4.89 | 202.70 | 0.2208 | -913.0 | -628.1 | |
| 0.00 | 2.62 | 0.00 | 1.40 | -15.50 | 218.30 | 4.50 | 191.63 | 0.3767 | -953.0 | -658.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.08 | 218.02 | 4.22 | 199.19 | 0.2236 | -848.0 | -615.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.93 | 218.09 | 4.29 | 190.88 | 0.3828 | -771.0 | -607.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -3.51 | 217.95 | 4.15 | 203.47 | 0.1820 | -834.0 | -628.4 | |
| 0.00 | 3.44 | 0.00 | 1.73 | -3.38 | 217.67 | 3.87 | 202.33 | 0.1782 | -866.0 | -743.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -4.12 | 217.67 | 3.87 | 200.86 | 0.1900 | -903.0 | -725.9 | |
| 3.44 | 5.25 | 1.74 | 2.66 | -5.08 | 217.56 | 3.75 | 198.65 | 0.2049 | 1106.8 | 803.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.49 | 217.49 | 3.68 | 191.80 | 0.3094 | -702.0 | -539.5 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -18.17 | 216.70 | 2.90 | 186.67 | 0.4149 | 172.0 | 125.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
