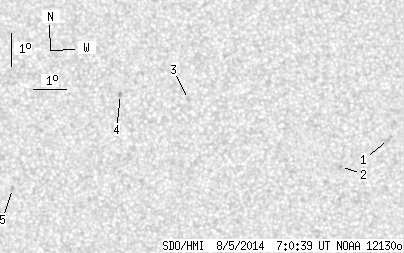

SDO HMI 2014-08-05 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.04 | 0.00 | 5.01 | 6.91 | 209.79 | -4.01 | 172.35 | 0.0841 | 205.6 | 14.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.89 | 0.00 | 1.93 | 6.89 | 214.55 | 0.75 | 317.94 | 0.0194 | -808.0 | -704.5 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 6.07 | 213.08 | -0.72 | 89.82 | 0.0126 | -1024.0 | -853.7 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 8.09 | 208.40 | -5.40 | 69.04 | 0.1002 | 848.0 | 556.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.22 | 206.30 | -7.50 | 73.46 | 0.1355 | 1014.0 | 829.1 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 5.31 | 203.00 | -10.80 | 93.50 | 0.1878 | 998.0 | 695.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
