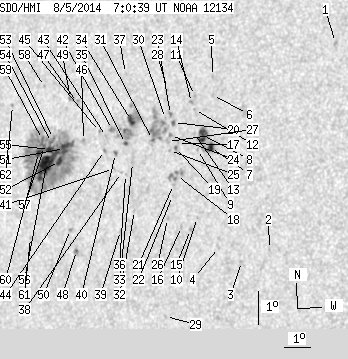

SDO HMI 2014-08-05 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.78 | 395.30 | 47.83 | 258.67 | 9.39 | 172.84 | -40.96 | 82.61 | 0.6541 | 186.8 | 196.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.06 | 13.33 | 181.79 | -32.01 | 74.62 | 0.5371 | -762.0 | -684.0 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 6.90 | 180.09 | -33.71 | 86.67 | 0.5541 | -683.0 | -582.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 6.47 | 179.08 | -34.72 | 87.40 | 0.5687 | -575.0 | -482.2 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 6.85 | 178.19 | -35.61 | 86.72 | 0.5813 | -672.0 | -446.0 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 12.03 | 177.34 | -36.46 | 77.96 | 0.5966 | -623.0 | -476.3 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 11.45 | 177.42 | -36.38 | 78.92 | 0.5945 | -669.0 | -624.6 | |
| 4.25 | 21.89 | 2.61 | 13.46 | 9.86 | 177.56 | -36.24 | 81.58 | 0.5909 | -944.6 | -698.4 | |
| 8.05 | -7.00 | 4.96 | -7.00 | 10.21 | 177.21 | -36.59 | 81.03 | 0.5961 | -960.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 9.77 | 177.08 | -36.73 | 81.77 | 0.5976 | -565.0 | -470.8 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 7.71 | 177.31 | -36.49 | 85.24 | 0.5936 | -590.0 | -499.6 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 11.41 | 176.73 | -37.07 | 79.09 | 0.6040 | -717.0 | -546.0 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 10.98 | 176.79 | -37.01 | 79.79 | 0.6026 | -847.0 | -765.2 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 10.25 | 176.90 | -36.90 | 80.99 | 0.6005 | -524.0 | -465.1 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 11.19 | 176.65 | -37.15 | 79.47 | 0.6048 | -730.0 | -590.9 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 7.33 | 177.08 | -36.72 | 85.88 | 0.5968 | -692.0 | -474.3 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 7.40 | 176.72 | -37.08 | 85.76 | 0.6017 | -601.0 | -506.4 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 9.91 | 176.28 | -37.52 | 81.62 | 0.6086 | -706.0 | -572.2 | |
| 0.00 | 9.41 | 0.00 | 5.85 | 8.93 | 176.37 | -37.44 | 83.22 | 0.6069 | -646.0 | -589.2 | |
| 0.45 | 1.63 | 0.28 | 1.02 | 9.78 | 176.22 | -37.58 | 81.83 | 0.6094 | -764.8 | -596.3 | |
| 0.90 | 2.62 | 0.57 | 1.64 | 10.53 | 176.04 | -37.76 | 80.61 | 0.6125 | -642.9 | -533.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 8.65 | 176.28 | -37.52 | 83.69 | 0.6080 | -683.0 | -532.1 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 8.32 | 176.28 | -37.52 | 84.24 | 0.6079 | -462.0 | -363.2 | |
| 0.00 | 2.35 | 0.00 | 1.47 | 10.77 | 175.89 | -37.91 | 80.24 | 0.6147 | -613.0 | -503.4 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 10.13 | 175.98 | -37.82 | 81.27 | 0.6130 | -715.0 | -616.4 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 9.67 | 176.00 | -37.80 | 82.02 | 0.6123 | -547.0 | -423.8 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 7.61 | 176.16 | -37.64 | 85.41 | 0.6095 | -570.0 | -447.1 | |
| 0.00 | 1.81 | 0.00 | 1.13 | 9.94 | 175.89 | -37.92 | 81.59 | 0.6141 | -599.0 | -493.7 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 11.52 | 175.65 | -38.15 | 79.05 | 0.6187 | -630.0 | -523.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 4.63 | 176.33 | -37.47 | 90.33 | 0.6087 | -403.0 | -351.4 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 10.64 | 175.71 | -38.09 | 80.48 | 0.6170 | -297.0 | -239.0 | |
| 0.36 | 32.75 | 0.23 | 20.65 | 9.97 | 175.29 | -38.51 | 81.60 | 0.6221 | -409.5 | -25.4 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 7.77 | 174.85 | -38.95 | 85.15 | 0.6274 | -407.0 | -402.6 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 9.22 | 174.60 | -39.20 | 82.84 | 0.6311 | 713.0 | 549.3 | |
| 4.61 | 19.27 | 2.95 | 12.31 | 10.49 | 174.38 | -39.42 | 80.84 | 0.6347 | 1011.7 | 581.6 | |
| 0.81 | 16.38 | 0.52 | 10.50 | 9.77 | 174.24 | -39.56 | 81.98 | 0.6361 | 950.4 | 721.2 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 8.83 | 174.37 | -39.43 | 83.46 | 0.6340 | -544.0 | -500.5 | |
| 0.00 | 0.72 | 0.00 | 0.47 | 11.90 | 173.91 | -39.90 | 78.68 | 0.6423 | 629.0 | 462.0 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 8.88 | 174.20 | -39.60 | 83.38 | 0.6362 | -464.0 | -328.2 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 7.12 | 174.36 | -39.44 | 86.17 | 0.6340 | 712.0 | 560.5 | |
| 0.63 | 2.17 | 0.41 | 1.40 | 9.45 | 173.89 | -39.92 | 82.52 | 0.6407 | 776.0 | 624.6 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 8.99 | 173.87 | -39.93 | 83.24 | 0.6407 | 373.0 | 302.3 | |
| 0.00 | 3.35 | 0.00 | 2.16 | 10.17 | 173.66 | -40.14 | 81.41 | 0.6440 | 822.0 | 743.3 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 9.94 | 173.45 | -40.35 | 81.78 | 0.6466 | 694.0 | 629.5 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 9.51 | 173.43 | -40.37 | 82.44 | 0.6467 | 623.0 | 510.8 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 10.07 | 173.15 | -40.66 | 81.59 | 0.6507 | 706.0 | 569.6 | |
| 0.00 | 1.81 | 0.00 | 1.19 | 9.75 | 172.54 | -41.26 | 82.11 | 0.6585 | 785.0 | 611.3 | |
| 0.00 | 2.26 | 0.00 | 1.50 | 10.89 | 172.11 | -41.69 | 80.42 | 0.6647 | 464.0 | 615.6 | |
| 0.63 | 3.17 | 0.41 | 2.08 | 6.40 | 172.66 | -41.14 | 87.23 | 0.6568 | -672.9 | -526.2 | |
| 0.00 | 2.44 | 0.00 | 1.62 | 10.99 | 171.80 | -42.00 | 80.29 | 0.6687 | 712.0 | 653.8 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 7.02 | 172.35 | -41.45 | 86.27 | 0.6606 | 687.0 | 567.6 | |
| 6.51 | 231.42 | 4.32 | 155.17 | 9.46 | 171.79 | -42.01 | 82.59 | 0.6680 | 994.9 | 329.4 | |
| 4.16 | -51.00 | 2.77 | -51.00 | 9.05 | 171.65 | -42.16 | 83.21 | 0.6698 | 1016.7 | 999999 | |
| 0.54 | -51.00 | 0.36 | -51.00 | 9.73 | 171.29 | -42.51 | 82.21 | 0.6745 | 599.2 | 999999 | |
| 0.72 | -51.00 | 0.48 | -51.00 | 9.60 | 171.23 | -42.57 | 82.40 | 0.6752 | 651.6 | 999999 | |
| 4.79 | -51.00 | 3.21 | -51.00 | 9.38 | 171.18 | -42.62 | 82.72 | 0.6758 | 790.8 | 999999 | |
| 29.31 | -51.00 | 19.66 | -51.00 | 8.92 | 171.12 | -42.68 | 83.41 | 0.6765 | 887.7 | 999999 | |
| 1.18 | -51.00 | 0.79 | -51.00 | 9.46 | 170.96 | -42.85 | 82.62 | 0.6787 | 626.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 11.28 | 170.65 | -43.15 | 79.96 | 0.6835 | 595.0 | 473.5 | |
| 0.72 | -51.00 | 0.49 | -51.00 | 9.67 | 170.84 | -42.96 | 82.32 | 0.6802 | 558.1 | 999999 | |
| 4.16 | -51.00 | 2.81 | -51.00 | 9.26 | 170.73 | -43.07 | 82.92 | 0.6814 | 618.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 6.66 | 170.73 | -43.07 | 86.74 | 0.6817 | 427.0 | 406.3 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 10.61 | 169.39 | -44.41 | 81.02 | 0.6986 | 562.0 | 482.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
