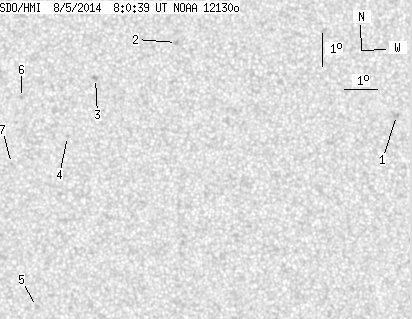

SDO HMI 2014-08-05 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.77 | 0.00 | 6.39 | 5.52 | 205.50 | -7.75 | 90.80 | 0.1399 | 499.9 | 274.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.90 | 0.00 | 1.43 | 6.07 | 213.08 | -0.17 | 89.68 | 0.0030 | -889.0 | -752.2 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 8.26 | 206.31 | -6.95 | 71.99 | 0.1264 | 1026.0 | 714.8 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 7.13 | 203.82 | -9.44 | 83.04 | 0.1646 | 909.0 | 763.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 5.35 | 202.98 | -10.27 | 93.52 | 0.1787 | 896.0 | 656.0 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 0.15 | 202.06 | -11.19 | 117.51 | 0.2199 | 29.0 | 62.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 6.51 | 201.52 | -11.73 | 87.22 | 0.2031 | 868.0 | 700.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 4.50 | 201.25 | -12.00 | 96.93 | 0.2098 | 660.0 | 602.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
