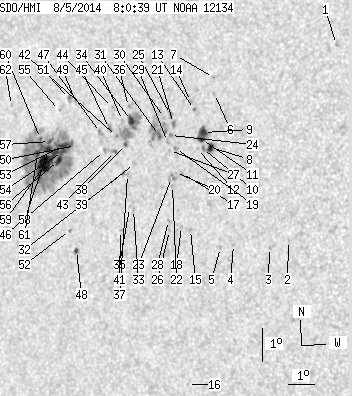

SDO HMI 2014-08-05 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.47 | 402.29 | 45.94 | 261.66 | 9.39 | 172.74 | -40.51 | 82.60 | 0.6481 | 200.8 | 209.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.84 | 13.26 | 181.80 | -31.45 | 74.56 | 0.5289 | -717.0 | -633.4 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 7.21 | 180.73 | -32.53 | 86.11 | 0.5368 | -725.0 | -539.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 6.96 | 180.05 | -33.20 | 86.57 | 0.5466 | -731.0 | -640.6 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 6.97 | 178.72 | -34.53 | 86.53 | 0.5659 | -497.0 | -389.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 6.85 | 178.24 | -35.01 | 86.73 | 0.5727 | -599.0 | -468.1 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 11.51 | 177.49 | -35.77 | 78.71 | 0.5862 | -671.0 | -670.6 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 12.00 | 177.37 | -35.88 | 77.90 | 0.5885 | -686.0 | -550.5 | |
| 3.71 | 5.43 | 2.26 | 3.30 | 9.86 | 177.55 | -35.70 | 81.52 | 0.5834 | -982.8 | -780.4 | |
| 4.52 | 12.39 | 2.77 | 7.58 | 10.30 | 177.23 | -36.02 | 80.80 | 0.5883 | -944.1 | -751.1 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 9.82 | 177.26 | -36.00 | 81.63 | 0.5876 | -780.0 | -657.9 | |
| 2.90 | -9.00 | 1.77 | -9.00 | 10.09 | 177.18 | -36.07 | 81.18 | 0.5888 | -872.2 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 9.80 | 177.07 | -36.19 | 81.67 | 0.5902 | -655.0 | -535.1 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 10.98 | 176.79 | -36.46 | 79.71 | 0.5951 | -766.0 | -677.3 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 11.22 | 176.60 | -36.65 | 79.35 | 0.5980 | -765.0 | -618.4 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 7.33 | 177.07 | -36.19 | 85.88 | 0.5893 | -723.0 | -542.1 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 2.61 | 177.25 | -36.01 | 93.91 | 0.5908 | -609.0 | -506.0 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 9.01 | 176.55 | -36.71 | 83.05 | 0.5969 | -948.0 | -716.8 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 7.40 | 176.72 | -36.54 | 85.76 | 0.5942 | -594.0 | -476.9 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 9.75 | 176.22 | -37.03 | 81.83 | 0.6018 | -900.0 | -749.1 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 9.02 | 176.31 | -36.94 | 83.04 | 0.6001 | -642.0 | -631.5 | |
| 0.54 | 2.99 | 0.34 | 1.85 | 10.51 | 176.05 | -37.21 | 80.60 | 0.6049 | -658.3 | -552.1 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 8.62 | 176.24 | -37.01 | 83.72 | 0.6009 | -507.0 | -446.4 | |
| 0.00 | 4.43 | 0.00 | 2.74 | 8.86 | 176.18 | -37.07 | 83.32 | 0.6019 | -453.0 | -526.8 | |
| 0.00 | 1.72 | 0.00 | 1.07 | 10.13 | 175.98 | -37.27 | 81.22 | 0.6055 | -714.0 | -620.7 | |
| 0.00 | 3.08 | 0.00 | 1.91 | 10.77 | 175.89 | -37.36 | 80.17 | 0.6073 | -567.0 | -426.5 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 7.25 | 176.27 | -36.98 | 86.01 | 0.6004 | -492.0 | -414.5 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 9.68 | 176.00 | -37.25 | 81.97 | 0.6048 | -496.0 | -375.2 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 7.55 | 176.20 | -37.05 | 85.50 | 0.6013 | -590.0 | -517.3 | |
| 0.00 | 2.08 | 0.00 | 1.29 | 9.95 | 175.89 | -37.36 | 81.54 | 0.6066 | -565.0 | -479.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 10.67 | 175.67 | -37.58 | 80.37 | 0.6101 | -384.0 | -280.5 | |
| 1.45 | 29.67 | 0.90 | 18.57 | 10.11 | 175.55 | -37.70 | 81.30 | 0.6113 | -344.9 | -56.0 | |
| 0.00 | 1.99 | 0.00 | 1.26 | 9.20 | 174.69 | -38.56 | 82.84 | 0.6224 | 341.0 | 358.5 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 7.80 | 174.82 | -38.44 | 85.10 | 0.6204 | -447.0 | -349.8 | |
| 4.07 | 16.28 | 2.58 | 10.32 | 10.49 | 174.39 | -38.86 | 80.78 | 0.6272 | 1027.6 | 644.1 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 7.85 | 174.65 | -38.60 | 85.02 | 0.6226 | -315.0 | -270.3 | |
| 0.00 | 0.63 | 0.00 | 0.40 | 10.91 | 174.21 | -39.04 | 80.14 | 0.6300 | 764.0 | 619.1 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 8.84 | 174.46 | -38.79 | 83.42 | 0.6254 | -701.0 | -505.5 | |
| 0.63 | 15.83 | 0.40 | 10.07 | 9.75 | 174.26 | -38.99 | 81.98 | 0.6285 | 955.7 | 696.0 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 8.86 | 174.26 | -39.00 | 83.40 | 0.6281 | -539.0 | -417.7 | |
| 0.00 | 2.08 | 0.00 | 1.33 | 10.47 | 174.04 | -39.22 | 80.85 | 0.6320 | 661.0 | 461.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 7.13 | 174.37 | -38.88 | 86.17 | 0.6265 | 792.0 | 684.0 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 9.97 | 173.87 | -39.38 | 81.66 | 0.6338 | 788.0 | 705.6 | |
| 0.54 | 3.98 | 0.35 | 2.55 | 9.51 | 173.89 | -39.36 | 82.38 | 0.6333 | 792.3 | 440.2 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 10.84 | 173.58 | -39.67 | 80.31 | 0.6384 | 787.0 | 640.2 | |
| 0.00 | 3.26 | 0.00 | 2.09 | 10.19 | 173.56 | -39.70 | 81.33 | 0.6382 | 873.0 | 706.2 | |
| 0.00 | 1.90 | 0.00 | 1.22 | 9.51 | 173.45 | -39.80 | 82.40 | 0.6392 | 719.0 | 529.7 | |
| 0.00 | 2.99 | 0.00 | 1.93 | 10.05 | 173.21 | -40.04 | 81.58 | 0.6426 | 629.0 | 596.3 | |
| 1.27 | 2.53 | 0.82 | 1.65 | 6.41 | 172.69 | -40.57 | 87.25 | 0.6493 | -603.8 | -458.4 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 10.95 | 172.05 | -41.20 | 80.28 | 0.6584 | 789.0 | 676.6 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 9.59 | 172.26 | -40.99 | 82.35 | 0.6548 | 736.0 | 615.4 | |
| 0.00 | 2.90 | 0.00 | 1.91 | 11.00 | 171.79 | -41.46 | 80.24 | 0.6618 | 830.0 | 662.7 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 6.99 | 172.34 | -40.91 | 86.33 | 0.6536 | 693.0 | 544.9 | |
| 4.79 | 247.62 | 3.16 | 164.70 | 9.55 | 171.77 | -41.48 | 82.42 | 0.6612 | 968.1 | 318.6 | |
| 3.71 | -53.00 | 2.44 | -53.00 | 9.37 | 171.76 | -41.49 | 82.70 | 0.6613 | 988.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 10.60 | 171.44 | -41.81 | 80.86 | 0.6660 | 673.0 | 498.0 | |
| 4.07 | -53.00 | 2.69 | -53.00 | 9.09 | 171.64 | -41.62 | 83.14 | 0.6628 | 1025.6 | 999999 | |
| 1.72 | -53.00 | 1.14 | -53.00 | 9.64 | 171.18 | -42.07 | 82.33 | 0.6689 | 662.2 | 999999 | |
| 5.16 | -53.00 | 3.43 | -53.00 | 9.39 | 171.18 | -42.08 | 82.69 | 0.6688 | 806.4 | 999999 | |
| 27.77 | -53.00 | 18.47 | -53.00 | 8.96 | 171.11 | -42.14 | 83.34 | 0.6695 | 894.6 | 999999 | |
| 0.72 | -53.00 | 0.48 | -53.00 | 9.70 | 170.79 | -42.46 | 82.24 | 0.6738 | 522.5 | 999999 | |
| 2.90 | -53.00 | 1.94 | -53.00 | 9.24 | 170.74 | -42.51 | 82.94 | 0.6744 | 628.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 10.62 | 169.41 | -43.84 | 80.97 | 0.6917 | 506.0 | 455.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
