SDO HMI 2014-08-05 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.51 | 117.59 | 17.39 | 75.97 | -7.34 | 250.25 | 37.55 | 250.67 | 0.6422 | 305.6 | 298.8 | |
|
previous
or next observation for the same group /

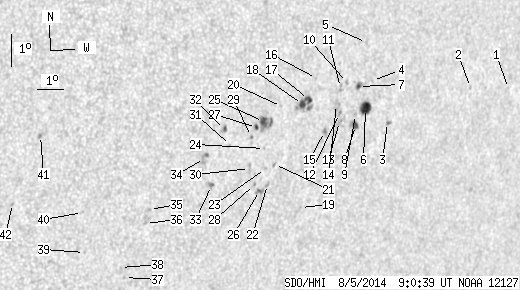

back to the solar disc SDO HMI 2014-08-05 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.54 | -6.68 | 259.22 | 46.52 | 255.38 | 0.7471 | 609.0 | 478.9 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -6.52 | 257.53 | 44.83 | 255.02 | 0.7273 | 562.0 | 460.7 | |
| 0.36 | 2.08 | 0.25 | 1.42 | -7.35 | 254.13 | 41.42 | 252.58 | 0.6900 | 656.5 | 499.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -5.99 | 253.38 | 40.67 | 254.19 | 0.6760 | -585.0 | -507.0 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -4.79 | 253.04 | 40.34 | 255.79 | 0.6677 | 583.0 | 446.8 | |
| 9.32 | 11.94 | 6.25 | 8.01 | -6.85 | 253.18 | 40.47 | 252.88 | 0.6766 | 805.7 | 481.3 | |
| 1.54 | 3.98 | 1.02 | 2.65 | -6.14 | 252.83 | 40.12 | 253.75 | 0.6697 | -459.6 | -268.9 | |
| 2.62 | 5.61 | 1.75 | 3.75 | -7.35 | 252.83 | 40.12 | 252.01 | 0.6742 | 640.6 | 583.4 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -7.01 | 252.79 | 40.09 | 252.49 | 0.6725 | 665.0 | 521.7 | |
| 0.00 | 1.90 | 0.00 | 1.25 | -5.98 | 252.37 | 39.67 | 253.79 | 0.6634 | 623.0 | 495.5 | |
| 0.00 | 2.71 | 0.00 | 1.79 | -6.12 | 252.11 | 39.40 | 253.47 | 0.6606 | 437.0 | 476.2 | |
| 0.00 | 1.99 | 0.00 | 1.32 | -6.93 | 252.14 | 39.44 | 252.31 | 0.6642 | 548.0 | 480.8 | |
| 0.00 | 2.44 | 0.00 | 1.62 | -7.18 | 252.17 | 39.46 | 251.96 | 0.6655 | -131.0 | -47.3 | |
| 0.00 | 5.34 | 0.00 | 3.52 | -6.64 | 251.99 | 39.29 | 252.67 | 0.6612 | 696.0 | 542.6 | |
| 0.00 | 2.71 | 0.00 | 1.78 | -7.45 | 251.60 | 38.90 | 251.31 | 0.6595 | 680.0 | 537.1 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -5.77 | 251.13 | 38.43 | 253.56 | 0.6470 | 426.0 | 416.0 | |
| 2.99 | 16.37 | 1.93 | 10.59 | -6.41 | 250.87 | 38.17 | 252.50 | 0.6462 | 775.6 | 652.5 | |
| 3.53 | -17.00 | 2.28 | -17.00 | -6.55 | 250.65 | 37.95 | 252.19 | 0.6439 | 899.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -9.79 | 250.93 | 38.23 | 247.63 | 0.6617 | -532.0 | -446.2 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -6.56 | 249.84 | 37.13 | 251.79 | 0.6336 | 598.0 | 515.1 | |
| 0.00 | 1.72 | 0.00 | 1.11 | -8.36 | 249.74 | 37.04 | 249.05 | 0.6404 | 607.0 | 466.3 | |
| 0.00 | 2.35 | 0.00 | 1.51 | -8.97 | 249.54 | 36.84 | 248.05 | 0.6408 | -311.0 | -264.3 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -8.46 | 249.41 | 36.70 | 248.72 | 0.6367 | 610.0 | 493.4 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -7.83 | 249.30 | 36.60 | 249.60 | 0.6324 | 635.0 | 476.8 | |
| 4.52 | 14.11 | 2.87 | 8.97 | -6.98 | 249.18 | 36.48 | 250.82 | 0.6270 | 950.1 | 684.7 | |
| 0.54 | 3.71 | 0.35 | 2.38 | -9.14 | 249.26 | 36.55 | 247.64 | 0.6381 | -773.3 | -581.7 | |
| 1.09 | 2.17 | 0.69 | 1.37 | -7.15 | 248.93 | 36.23 | 250.43 | 0.6246 | 891.8 | 815.8 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -8.94 | 249.04 | 36.34 | 247.81 | 0.6344 | -637.0 | -556.4 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -7.42 | 248.77 | 36.06 | 249.93 | 0.6237 | 619.0 | 616.1 | |
| 0.00 | 3.80 | 0.00 | 2.42 | -8.42 | 248.79 | 36.09 | 248.44 | 0.6287 | 467.0 | 331.1 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -7.65 | 247.99 | 35.29 | 249.16 | 0.6149 | 676.0 | 593.1 | |
| 0.00 | 2.89 | 0.00 | 1.80 | -7.13 | 247.72 | 35.02 | 249.80 | 0.6089 | 856.0 | 764.8 | |
| 0.00 | 3.26 | 0.00 | 2.04 | -8.87 | 247.40 | 34.70 | 246.96 | 0.6134 | -847.0 | -687.0 | |
| 0.00 | 5.43 | 0.00 | 3.37 | -8.00 | 247.05 | 34.35 | 248.08 | 0.6045 | 686.0 | 766.2 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -9.48 | 245.17 | 32.46 | 244.56 | 0.5885 | -566.0 | -421.6 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -9.92 | 245.07 | 32.37 | 243.81 | 0.5898 | -659.0 | -579.5 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -11.60 | 244.50 | 31.80 | 240.84 | 0.5932 | -690.0 | -546.8 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -11.27 | 244.31 | 31.61 | 241.19 | 0.5888 | -497.0 | -432.0 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -10.71 | 242.95 | 30.24 | 240.97 | 0.5681 | -473.0 | -399.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -9.44 | 242.74 | 30.04 | 242.83 | 0.5572 | -589.0 | -482.5 | |
| 0.00 | 2.53 | 0.00 | 1.47 | -6.93 | 241.06 | 28.36 | 245.74 | 0.5192 | -874.0 | -657.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -9.02 | 240.24 | 27.54 | 241.44 | 0.5219 | -534.0 | -466.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
