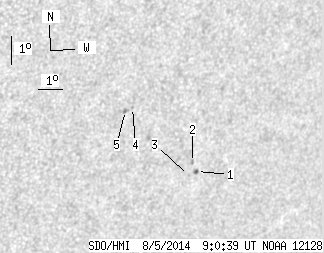

SDO HMI 2014-08-05 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 7.23 | 0.45 | 5.02 | -20.50 | 248.88 | 36.17 | 232.22 | 0.7012 | 646.2 | 572.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 1.81 | 0.45 | 1.29 | -21.53 | 250.40 | 37.70 | 232.10 | 0.7232 | 653.7 | 568.8 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -21.21 | 250.14 | 37.44 | 232.29 | 0.7186 | 731.0 | 666.5 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -21.65 | 250.11 | 37.40 | 231.76 | 0.7211 | 449.0 | 423.2 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -19.16 | 247.18 | 34.48 | 232.61 | 0.6753 | 578.0 | 452.4 | |
| 0.00 | 2.35 | 0.00 | 1.57 | -19.24 | 246.93 | 34.22 | 232.31 | 0.6733 | 816.0 | 608.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
