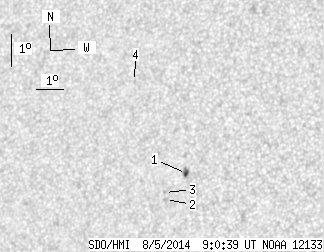

SDO HMI 2014-08-05 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 7.97 | 1.11 | 4.67 | 18.10 | 181.91 | -30.79 | 65.46 | 0.5372 | -583.7 | -512.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 4.43 | 1.11 | 2.58 | 17.94 | 182.47 | -30.23 | 65.40 | 0.5289 | -943.3 | -691.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 17.10 | 181.85 | -30.86 | 67.25 | 0.5336 | -768.0 | -639.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 17.31 | 181.77 | -30.93 | 66.90 | 0.5356 | -685.0 | -552.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 20.70 | 179.91 | -32.79 | 62.10 | 0.5755 | 101.0 | 92.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
