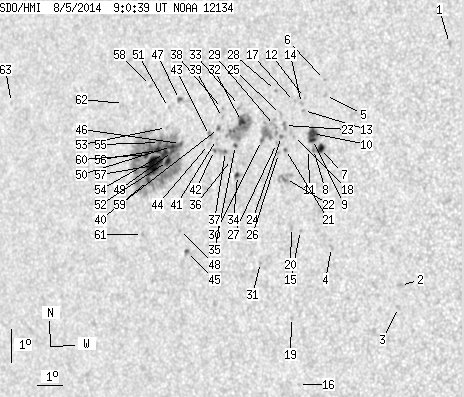

SDO HMI 2014-08-05 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.67 | 399.81 | 45.64 | 257.42 | 9.38 | 172.90 | -39.81 | 82.58 | 0.6388 | 195.3 | 206.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.26 | 0.00 | 1.31 | 13.32 | 181.87 | -30.84 | 74.24 | 0.5203 | -775.0 | -621.7 | |
| 0.00 | 3.35 | 0.00 | 1.95 | 5.87 | 180.85 | -31.85 | 88.66 | 0.5272 | -91.0 | -177.3 | |
| 0.00 | 2.08 | 0.00 | 1.21 | 5.20 | 180.82 | -31.88 | 89.93 | 0.5281 | -686.0 | -573.2 | |
| 0.00 | 2.08 | 0.00 | 1.25 | 6.88 | 178.25 | -34.45 | 86.68 | 0.5647 | -569.0 | -401.3 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 11.49 | 177.51 | -35.19 | 78.66 | 0.5782 | -788.0 | -649.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 11.97 | 177.41 | -35.30 | 77.84 | 0.5804 | -740.0 | -536.2 | |
| 4.34 | 6.15 | 2.63 | 3.72 | 9.86 | 177.54 | -35.17 | 81.47 | 0.5760 | -978.5 | -727.0 | |
| 0.00 | 1.99 | 0.00 | 1.21 | 9.82 | 177.28 | -35.43 | 81.57 | 0.5796 | -815.0 | -718.0 | |
| 2.99 | 12.21 | 1.81 | 7.42 | 10.12 | 177.20 | -35.50 | 81.06 | 0.5809 | -968.8 | -682.4 | |
| 5.25 | -9.00 | 3.19 | -9.00 | 10.30 | 177.18 | -35.52 | 80.75 | 0.5814 | -960.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 9.81 | 177.09 | -35.61 | 81.61 | 0.5822 | -629.0 | -523.0 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 11.38 | 176.73 | -35.98 | 78.97 | 0.5889 | -686.0 | -445.8 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 10.98 | 176.74 | -35.96 | 79.65 | 0.5882 | -860.0 | -716.4 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 11.19 | 176.64 | -36.07 | 79.31 | 0.5899 | -830.0 | -687.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 7.33 | 177.05 | -35.65 | 85.89 | 0.5818 | -702.0 | -543.2 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 2.65 | 177.26 | -35.44 | 93.97 | 0.5829 | -644.0 | -574.1 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 11.23 | 176.36 | -36.34 | 79.27 | 0.5938 | -468.0 | -346.1 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 10.17 | 176.47 | -36.23 | 81.06 | 0.5911 | -734.0 | -519.7 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 4.67 | 176.91 | -35.80 | 90.45 | 0.5852 | -727.0 | -559.9 | |
| 0.00 | 2.08 | 0.00 | 1.27 | 7.40 | 176.70 | -36.00 | 85.76 | 0.5867 | -614.0 | -436.0 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 9.75 | 176.22 | -36.49 | 81.78 | 0.5943 | -865.0 | -618.9 | |
| 0.00 | 10.86 | 0.00 | 6.66 | 8.87 | 176.32 | -36.38 | 83.26 | 0.5923 | -667.0 | -573.6 | |
| 0.00 | 3.35 | 0.00 | 2.06 | 10.48 | 176.08 | -36.62 | 80.57 | 0.5968 | -733.0 | -573.0 | |
| 0.00 | 1.81 | 0.00 | 1.12 | 10.14 | 176.01 | -36.69 | 81.15 | 0.5975 | -712.0 | -604.2 | |
| 0.00 | 2.44 | 0.00 | 1.51 | 10.80 | 175.88 | -36.82 | 80.06 | 0.5999 | -560.0 | -425.0 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 9.61 | 175.96 | -36.74 | 82.04 | 0.5977 | -506.0 | -431.5 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 9.91 | 175.85 | -36.86 | 81.55 | 0.5995 | -517.0 | -463.2 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 11.52 | 175.58 | -37.12 | 78.90 | 0.6048 | -529.0 | -466.6 | |
| 0.00 | 6.97 | 0.00 | 4.31 | 10.46 | 175.70 | -37.01 | 80.66 | 0.6021 | -319.0 | -276.9 | |
| 0.45 | 14.29 | 0.28 | 8.88 | 9.97 | 175.26 | -37.45 | 81.51 | 0.6077 | -400.2 | 26.4 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 6.26 | 175.62 | -37.09 | 87.65 | 0.6021 | -594.0 | -487.8 | |
| 3.26 | 40.62 | 2.05 | 25.59 | 10.50 | 174.40 | -38.30 | 80.72 | 0.6198 | 1049.8 | 637.0 | |
| 0.00 | 2.08 | 0.00 | 1.31 | 10.98 | 174.25 | -38.46 | 79.97 | 0.6223 | 616.0 | 535.6 | |
| 1.45 | 2.71 | 0.91 | 1.71 | 8.85 | 174.46 | -38.24 | 83.39 | 0.6179 | -630.2 | -480.3 | |
| 0.72 | -32.00 | 0.46 | -32.00 | 9.75 | 174.27 | -38.44 | 81.94 | 0.6210 | 847.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.09 | 9.32 | 174.17 | -38.54 | 82.65 | 0.6222 | 364.0 | 285.4 | |
| 0.63 | 7.15 | 0.40 | 4.54 | 9.55 | 173.90 | -38.81 | 82.30 | 0.6259 | 698.0 | 367.9 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 10.84 | 173.59 | -39.11 | 80.25 | 0.6309 | 742.0 | 613.0 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 10.57 | 173.63 | -39.07 | 80.68 | 0.6301 | 736.0 | 620.7 | |
| 0.72 | 2.53 | 0.46 | 1.61 | 10.23 | 173.52 | -39.18 | 81.24 | 0.6313 | 860.2 | 730.2 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 9.89 | 173.49 | -39.21 | 81.78 | 0.6315 | 727.0 | 564.7 | |
| 0.36 | -37.00 | 0.23 | -37.00 | 9.55 | 173.46 | -39.24 | 82.32 | 0.6318 | 631.5 | 999999 | |
| 0.00 | 4.07 | 0.00 | 2.61 | 9.99 | 173.20 | -39.51 | 81.64 | 0.6355 | 751.0 | 638.3 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 9.71 | 173.20 | -39.51 | 82.07 | 0.6354 | 565.0 | 467.2 | |
| 1.00 | 2.80 | 0.64 | 1.81 | 6.41 | 172.70 | -40.00 | 87.27 | 0.6418 | -658.8 | -464.5 | |
| 0.63 | 230.51 | 0.41 | 152.06 | 9.67 | 172.07 | -40.63 | 82.20 | 0.6502 | 852.9 | 334.6 | |
| 1.00 | 2.89 | 0.65 | 1.89 | 11.00 | 171.82 | -40.88 | 80.17 | 0.6543 | 748.4 | 665.3 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 7.03 | 172.36 | -40.35 | 86.29 | 0.6462 | 651.0 | 517.7 | |
| 1.54 | -46.00 | 1.00 | -46.00 | 9.41 | 171.78 | -40.92 | 82.62 | 0.6539 | 1021.6 | 999999 | |
| 3.89 | -46.00 | 2.54 | -46.00 | 9.55 | 171.72 | -40.98 | 82.40 | 0.6548 | 970.3 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.42 | 10.73 | 171.41 | -41.29 | 80.63 | 0.6594 | 628.0 | 526.9 | |
| 3.89 | -46.00 | 2.55 | -46.00 | 9.09 | 171.62 | -41.08 | 83.12 | 0.6559 | 1041.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 10.12 | 171.43 | -41.27 | 81.56 | 0.6588 | 712.0 | 582.3 | |
| 4.89 | -46.00 | 3.21 | -46.00 | 9.32 | 171.47 | -41.24 | 82.76 | 0.6580 | 963.6 | 999999 | |
| 2.26 | -46.00 | 1.49 | -46.00 | 9.64 | 171.21 | -41.49 | 82.29 | 0.6614 | 657.9 | 999999 | |
| 3.80 | -46.00 | 2.50 | -46.00 | 9.39 | 171.17 | -41.54 | 82.67 | 0.6619 | 811.9 | 999999 | |
| 22.53 | -46.00 | 14.87 | -46.00 | 8.93 | 171.07 | -41.64 | 83.38 | 0.6630 | 902.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 11.35 | 170.56 | -42.15 | 79.77 | 0.6708 | 604.0 | 436.6 | |
| 1.72 | -46.00 | 1.14 | -46.00 | 8.46 | 170.92 | -41.78 | 84.09 | 0.6648 | 748.1 | 999999 | |
| 3.35 | -46.00 | 2.22 | -46.00 | 9.24 | 170.73 | -41.97 | 82.91 | 0.6674 | 627.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 6.81 | 170.87 | -41.83 | 86.58 | 0.6657 | 701.0 | 604.4 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 10.72 | 169.53 | -43.18 | 80.77 | 0.6834 | 159.0 | 177.8 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 10.39 | 164.61 | -48.09 | 81.47 | 0.7425 | 399.0 | 414.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
