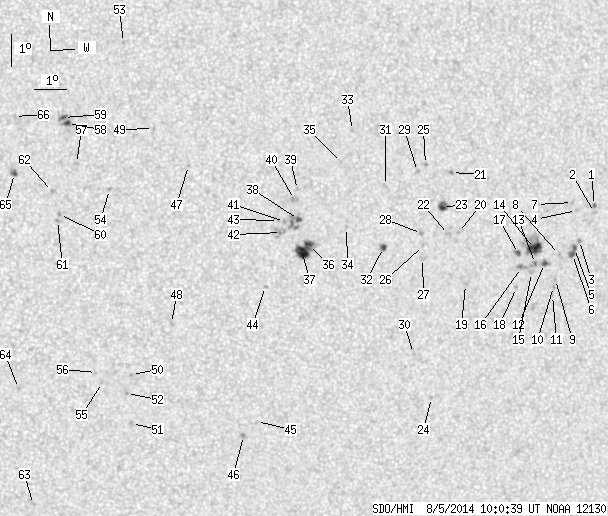

SDO HMI 2014-08-05 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.87 | 195.61 | 25.12 | 104.58 | -7.37 | 228.73 | 16.57 | 229.34 | 0.3689 | 325.9 | 289.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 1.81 | 0.30 | 1.01 | -6.56 | 235.98 | 23.82 | 242.41 | 0.4546 | 812.7 | 682.4 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -6.78 | 235.99 | 23.84 | 241.99 | 0.4564 | 420.0 | 439.8 | |
| 0.00 | 2.17 | 0.00 | 1.21 | -7.63 | 235.54 | 23.38 | 239.87 | 0.4566 | 858.0 | 637.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -6.69 | 235.39 | 23.23 | 241.54 | 0.4474 | 827.0 | 607.9 | |
| 1.18 | 6.87 | 0.65 | 3.82 | -7.87 | 235.38 | 23.23 | 239.24 | 0.4565 | 914.5 | 770.3 | |
| 2.35 | -5.00 | 1.31 | -5.00 | -8.06 | 235.33 | 23.17 | 238.82 | 0.4572 | 849.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -6.43 | 235.24 | 23.08 | 241.89 | 0.4435 | 899.0 | 639.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -8.04 | 234.89 | 22.74 | 238.37 | 0.4513 | 929.0 | 749.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -8.82 | 234.81 | 22.65 | 236.80 | 0.4566 | 697.0 | 549.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -9.04 | 234.75 | 22.60 | 236.34 | 0.4578 | -57.0 | -83.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -9.32 | 234.74 | 22.58 | 235.81 | 0.4600 | 605.0 | 496.0 | |
| 1.81 | 3.89 | 1.00 | 2.15 | -8.30 | 234.41 | 22.25 | 237.31 | 0.4471 | 918.0 | 659.3 | |
| 0.45 | 3.35 | 0.25 | 1.85 | -8.29 | 234.11 | 21.95 | 236.98 | 0.4430 | 1014.2 | 849.6 | |
| 11.67 | 29.13 | 6.43 | 16.02 | -7.82 | 234.05 | 21.89 | 237.81 | 0.4383 | 1090.6 | 537.5 | |
| 0.00 | 2.35 | 0.00 | 1.30 | -8.57 | 233.99 | 21.84 | 236.31 | 0.4439 | 680.0 | 625.5 | |
| 0.00 | 4.61 | 0.00 | 2.54 | -8.40 | 233.65 | 21.49 | 236.21 | 0.4380 | 862.0 | 825.8 | |
| 1.45 | 4.07 | 0.79 | 2.23 | -7.95 | 233.53 | 21.37 | 236.91 | 0.4325 | 1115.8 | 851.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -9.02 | 233.52 | 21.37 | 234.87 | 0.4418 | 822.0 | 592.2 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -8.86 | 231.83 | 19.68 | 232.91 | 0.4189 | 662.0 | 569.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -7.22 | 231.53 | 19.37 | 235.76 | 0.3997 | 953.0 | 799.6 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -5.34 | 231.23 | 19.07 | 239.44 | 0.3794 | 906.0 | 627.7 | |
| 0.00 | 2.89 | 0.00 | 1.56 | -7.27 | 231.20 | 19.05 | 235.20 | 0.3959 | 722.0 | 709.8 | |
| 3.08 | 7.51 | 1.65 | 4.03 | -6.42 | 230.97 | 18.82 | 236.69 | 0.3852 | -980.6 | -852.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -12.41 | 230.95 | 18.79 | 225.28 | 0.4446 | 705.0 | 574.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -5.06 | 230.38 | 18.23 | 238.92 | 0.3653 | -796.0 | -765.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -7.58 | 230.41 | 18.25 | 233.37 | 0.3885 | 756.0 | 594.1 | |
| 0.00 | 2.71 | 0.00 | 1.46 | -7.99 | 230.39 | 18.24 | 232.51 | 0.3922 | 841.0 | 757.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -7.21 | 230.33 | 18.17 | 234.04 | 0.3838 | 985.0 | 801.2 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -5.27 | 230.13 | 17.97 | 238.07 | 0.3636 | 762.0 | 579.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -10.98 | 230.26 | 18.11 | 226.64 | 0.4214 | 828.0 | 668.6 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -5.67 | 229.12 | 16.96 | 235.58 | 0.3534 | 710.0 | 546.8 | |
| 2.08 | 3.62 | 1.11 | 1.93 | -7.60 | 229.12 | 16.96 | 231.28 | 0.3722 | 1064.1 | 842.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -3.93 | 228.02 | 15.87 | 238.12 | 0.3227 | -833.0 | -585.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.94 | 227.91 | 15.76 | 230.63 | 0.3502 | 822.0 | 582.6 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -4.91 | 227.70 | 15.54 | 235.03 | 0.3271 | 747.0 | 629.4 | |
| 4.70 | 24.88 | 2.48 | 13.11 | -7.47 | 226.72 | 14.57 | 227.23 | 0.3412 | 578.8 | 335.1 | |
| 11.22 | -36.00 | 5.91 | -36.00 | -7.68 | 226.54 | 14.38 | 226.40 | 0.3414 | 906.0 | 999999 | |
| 1.72 | 12.48 | 0.90 | 6.54 | -6.64 | 226.38 | 14.22 | 228.37 | 0.3279 | 1042.6 | 803.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.71 | 226.32 | 14.17 | 230.47 | 0.3171 | 1021.0 | 784.9 | |
| 0.00 | 4.43 | 0.00 | 2.32 | -6.02 | 226.24 | 14.08 | 229.55 | 0.3193 | 967.0 | 852.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -6.69 | 225.94 | 13.78 | 227.35 | 0.3231 | 1066.0 | 857.7 | |
| 0.00 | 3.26 | 0.00 | 1.71 | -7.03 | 225.86 | 13.70 | 226.41 | 0.3260 | 715.0 | 716.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -6.66 | 225.75 | 13.59 | 227.04 | 0.3204 | 970.0 | 740.6 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -8.71 | 225.40 | 13.25 | 221.90 | 0.3406 | 717.0 | 524.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -13.00 | 225.31 | 13.15 | 214.37 | 0.3943 | -426.0 | -342.2 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -13.45 | 224.91 | 12.76 | 212.93 | 0.3967 | -1014.0 | -783.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -4.88 | 222.90 | 10.74 | 224.63 | 0.2655 | -765.0 | -612.5 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -9.81 | 222.48 | 10.32 | 212.99 | 0.3257 | -759.0 | -607.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -3.71 | 221.80 | 9.64 | 224.77 | 0.2384 | -673.0 | -542.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -11.41 | 221.27 | 9.12 | 207.45 | 0.3385 | -817.0 | -705.6 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -12.98 | 221.33 | 9.17 | 205.54 | 0.3618 | -879.0 | -729.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -12.01 | 221.14 | 8.98 | 206.28 | 0.3463 | -820.0 | -721.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -1.05 | 220.86 | 8.70 | 230.93 | 0.1957 | -828.0 | -582.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -5.58 | 220.46 | 8.31 | 215.60 | 0.2481 | -803.0 | -581.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -11.65 | 220.37 | 8.21 | 204.77 | 0.3355 | -775.0 | -692.8 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -11.32 | 220.17 | 8.02 | 204.65 | 0.3293 | -736.0 | -696.3 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -4.76 | 219.43 | 7.28 | 214.03 | 0.2267 | -957.0 | -699.5 | |
| 1.72 | 7.78 | 0.87 | 3.94 | -3.52 | 219.15 | 6.99 | 216.24 | 0.2065 | -1155.4 | -836.6 | |
| 1.27 | -58.00 | 0.64 | -58.00 | -3.33 | 219.02 | 6.87 | 216.29 | 0.2026 | -1178.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -6.33 | 218.93 | 6.77 | 208.70 | 0.2451 | -1018.0 | -788.3 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -6.52 | 218.87 | 6.71 | 208.13 | 0.2474 | -1016.0 | -770.3 | |
| 0.00 | 2.17 | 0.00 | 1.11 | -5.61 | 218.70 | 6.55 | 209.35 | 0.2326 | -904.0 | -771.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -15.56 | 218.31 | 6.15 | 195.67 | 0.3839 | -783.0 | -721.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -11.80 | 217.75 | 5.59 | 197.28 | 0.3223 | -829.0 | -670.8 | |
| 1.63 | 4.88 | 0.83 | 2.48 | -5.04 | 217.53 | 5.38 | 205.90 | 0.2147 | 1142.6 | 861.4 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -3.28 | 217.52 | 5.37 | 209.96 | 0.1878 | -833.0 | -632.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
