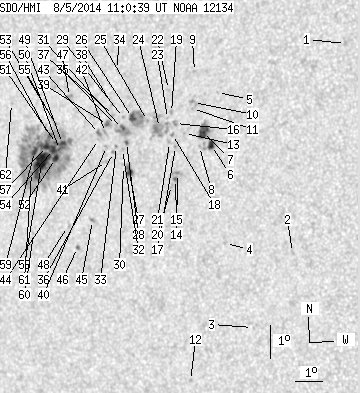

SDO HMI 2014-08-05 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.45 | 396.73 | 46.03 | 252.11 | 9.42 | 172.74 | -38.87 | 82.45 | 0.6264 | 246.8 | 223.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.93 | 13.23 | 182.02 | -29.59 | 73.97 | 0.5021 | -736.0 | -611.6 | |
| 0.00 | 1.72 | 0.00 | 0.99 | 6.78 | 180.77 | -30.83 | 86.95 | 0.5117 | -623.0 | -577.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 4.42 | 179.48 | -32.13 | 91.37 | 0.5325 | -483.0 | -538.5 | |
| 0.00 | 1.72 | 0.00 | 1.02 | 6.92 | 178.34 | -33.27 | 86.64 | 0.5476 | -454.0 | -356.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 11.49 | 177.55 | -34.05 | 78.45 | 0.5622 | -762.0 | -634.2 | |
| 3.98 | 8.50 | 2.38 | 5.08 | 9.86 | 177.53 | -34.07 | 81.34 | 0.5605 | -941.8 | -682.8 | |
| 8.68 | 14.65 | 5.21 | 8.79 | 10.27 | 177.18 | -34.42 | 80.66 | 0.5658 | -953.2 | -559.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 9.81 | 177.09 | -34.52 | 81.49 | 0.5667 | -584.0 | -501.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 12.08 | 176.60 | -35.01 | 77.60 | 0.5765 | -584.0 | -530.8 | |
| 0.00 | 3.53 | 0.00 | 2.13 | 11.13 | 176.70 | -34.91 | 79.22 | 0.5738 | -668.0 | -686.8 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 10.95 | 176.68 | -34.92 | 79.55 | 0.5737 | -810.0 | -694.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 2.68 | 177.28 | -34.33 | 94.14 | 0.5669 | -651.0 | -482.6 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 10.17 | 176.48 | -35.12 | 80.93 | 0.5757 | -618.0 | -536.8 | |
| 0.00 | 3.44 | 0.00 | 2.08 | 8.94 | 176.36 | -35.25 | 83.08 | 0.5764 | -814.0 | -699.3 | |
| 0.45 | 1.54 | 0.27 | 0.93 | 8.75 | 176.31 | -35.30 | 83.41 | 0.5771 | -832.8 | -724.6 | |
| 0.00 | 2.71 | 0.00 | 1.65 | 10.45 | 176.10 | -35.50 | 80.48 | 0.5812 | -748.0 | -611.8 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 9.76 | 176.19 | -35.42 | 81.68 | 0.5794 | -779.0 | -693.1 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 10.11 | 176.03 | -35.57 | 81.08 | 0.5819 | -711.0 | -596.0 | |
| 0.00 | 2.17 | 0.00 | 1.32 | 10.78 | 175.91 | -35.70 | 79.95 | 0.5843 | -658.0 | -458.8 | |
| 0.00 | 1.81 | 0.00 | 1.10 | 8.56 | 176.17 | -35.43 | 83.75 | 0.5789 | -623.0 | -490.2 | |
| 0.00 | 2.44 | 0.00 | 1.49 | 9.86 | 175.95 | -35.66 | 81.52 | 0.5828 | -604.0 | -466.3 | |
| 0.00 | 1.72 | 0.00 | 1.05 | 11.47 | 175.70 | -35.91 | 78.80 | 0.5882 | -601.0 | -435.5 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 10.59 | 175.78 | -35.83 | 80.29 | 0.5859 | -268.0 | -244.9 | |
| 0.00 | 22.34 | 0.00 | 13.68 | 10.30 | 175.51 | -36.09 | 80.82 | 0.5893 | 123.0 | -47.7 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 10.48 | 175.03 | -36.58 | 80.57 | 0.5962 | -232.0 | -33.7 | |
| 3.80 | 19.99 | 2.36 | 12.38 | 10.54 | 174.44 | -37.17 | 80.54 | 0.6044 | 996.5 | 545.5 | |
| 3.35 | 8.23 | 2.07 | 5.10 | 8.86 | 174.54 | -37.07 | 83.32 | 0.6019 | -664.0 | -166.1 | |
| 0.72 | 13.39 | 0.45 | 8.33 | 9.76 | 174.31 | -37.30 | 81.83 | 0.6055 | 910.9 | 685.1 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 10.51 | 174.09 | -37.52 | 80.61 | 0.6091 | 685.0 | 592.6 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 9.03 | 174.28 | -37.32 | 83.05 | 0.6054 | 189.0 | 150.6 | |
| 1.54 | -28.00 | 0.96 | -28.00 | 10.18 | 174.10 | -37.51 | 81.17 | 0.6087 | 1041.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 9.54 | 174.18 | -37.43 | 82.21 | 0.6071 | 617.0 | 560.4 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 9.62 | 173.94 | -37.67 | 82.10 | 0.6105 | 606.0 | 522.1 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 11.96 | 173.59 | -38.01 | 78.33 | 0.6174 | 538.0 | 522.8 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 10.25 | 173.85 | -37.75 | 81.06 | 0.6121 | 579.0 | 595.5 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 9.43 | 173.84 | -37.76 | 82.42 | 0.6117 | 759.0 | 679.3 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 10.55 | 173.69 | -37.91 | 80.60 | 0.6145 | 602.0 | 510.0 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 10.88 | 173.60 | -38.00 | 80.07 | 0.6161 | 817.0 | 640.6 | |
| 0.99 | 4.25 | 0.63 | 2.67 | 10.26 | 173.50 | -38.11 | 81.08 | 0.6169 | 920.5 | 764.5 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 9.59 | 173.55 | -38.06 | 82.17 | 0.6158 | 392.0 | 392.6 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 9.14 | 173.61 | -38.00 | 82.91 | 0.6148 | 582.0 | 503.7 | |
| 0.00 | 2.53 | 0.00 | 1.59 | 10.02 | 173.45 | -38.15 | 81.49 | 0.6174 | 706.0 | 594.2 | |
| 0.00 | 3.44 | 0.00 | 2.17 | 9.97 | 173.22 | -38.38 | 81.58 | 0.6204 | 796.0 | 670.2 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 9.79 | 173.21 | -38.40 | 81.88 | 0.6205 | 574.0 | 527.0 | |
| 0.00 | 2.26 | 0.00 | 1.42 | 7.31 | 173.26 | -38.34 | 85.88 | 0.6192 | 725.0 | 593.2 | |
| 0.54 | 1.72 | 0.34 | 1.09 | 6.46 | 172.75 | -38.85 | 87.25 | 0.6263 | -685.2 | -503.2 | |
| 0.00 | 3.53 | 0.00 | 2.27 | 11.02 | 171.87 | -39.74 | 80.04 | 0.6394 | 782.0 | 684.7 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 7.07 | 172.30 | -39.31 | 86.26 | 0.6322 | 494.0 | 475.8 | |
| 3.08 | 237.89 | 1.98 | 154.48 | 9.57 | 171.80 | -39.80 | 82.31 | 0.6392 | 977.4 | 328.1 | |
| 0.27 | -49.00 | 0.17 | -49.00 | 9.38 | 171.71 | -39.90 | 82.62 | 0.6404 | 1016.3 | 999999 | |
| 2.17 | -49.00 | 1.40 | -49.00 | 9.56 | 171.56 | -40.04 | 82.35 | 0.6424 | 883.8 | 999999 | |
| 3.53 | -49.00 | 2.27 | -49.00 | 9.10 | 171.58 | -40.02 | 83.06 | 0.6419 | 996.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 10.16 | 171.43 | -40.17 | 81.42 | 0.6444 | 796.0 | 639.3 | |
| 4.52 | -49.00 | 2.92 | -49.00 | 9.37 | 171.47 | -40.14 | 82.65 | 0.6436 | 952.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 10.30 | 171.29 | -40.32 | 81.20 | 0.6464 | 545.0 | 504.9 | |
| 1.72 | -49.00 | 1.11 | -49.00 | 9.78 | 171.25 | -40.36 | 82.02 | 0.6467 | 641.5 | 999999 | |
| 3.08 | -49.00 | 1.99 | -49.00 | 9.44 | 171.17 | -40.43 | 82.55 | 0.6475 | 833.7 | 999999 | |
| 25.78 | -49.00 | 16.75 | -49.00 | 8.91 | 171.04 | -40.56 | 83.38 | 0.6490 | 873.4 | 999999 | |
| 3.71 | -49.00 | 2.42 | -49.00 | 9.25 | 170.71 | -40.90 | 82.86 | 0.6535 | 617.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 6.76 | 170.97 | -40.64 | 86.69 | 0.6501 | 583.0 | 498.0 | |
| 0.54 | -49.00 | 0.35 | -49.00 | 8.61 | 170.67 | -40.93 | 83.85 | 0.6538 | 434.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 10.64 | 169.54 | -42.06 | 80.81 | 0.6692 | 547.0 | 463.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
