SDO HMI 2014-08-05 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.01 | 125.36 | 23.42 | 82.84 | -7.38 | 250.23 | 39.18 | 251.44 | 0.6627 | 283.9 | 304.5 | |
|
previous
or next observation for the same group /

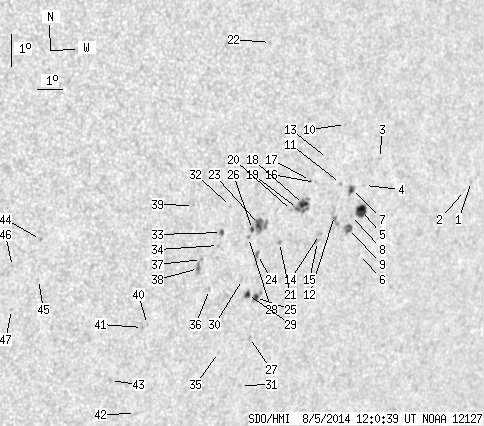

back to the solar disc SDO HMI 2014-08-05 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.81 | -6.28 | 258.01 | 46.96 | 256.04 | 0.7508 | 598.0 | 478.4 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -6.54 | 257.73 | 46.67 | 255.62 | 0.7484 | 476.0 | 408.7 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -5.25 | 253.92 | 42.87 | 256.06 | 0.7003 | 723.0 | 603.7 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -6.05 | 253.37 | 42.31 | 254.75 | 0.6962 | -601.0 | -484.0 | |
| 9.32 | 12.21 | 6.43 | 8.42 | -6.82 | 253.32 | 42.27 | 253.66 | 0.6982 | 753.7 | 461.1 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -8.20 | 253.40 | 42.35 | 251.80 | 0.7042 | 420.0 | 351.3 | |
| 2.26 | 5.52 | 1.54 | 3.76 | -6.13 | 252.84 | 41.78 | 254.43 | 0.6900 | -449.1 | -185.1 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -6.95 | 252.92 | 41.87 | 253.32 | 0.6939 | 599.0 | 501.5 | |
| 3.71 | 6.78 | 2.55 | 4.65 | -7.35 | 252.84 | 41.79 | 252.74 | 0.6944 | 630.5 | 461.9 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -4.09 | 252.43 | 41.38 | 257.17 | 0.6785 | 494.0 | 393.9 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -5.91 | 252.37 | 41.31 | 254.55 | 0.6835 | 666.0 | 581.3 | |
| 0.00 | 8.14 | 0.00 | 5.52 | -6.90 | 252.22 | 41.16 | 253.11 | 0.6852 | 431.0 | 513.5 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -5.09 | 251.77 | 40.72 | 255.49 | 0.6734 | 624.0 | 609.7 | |
| 0.00 | 2.53 | 0.00 | 1.71 | -7.45 | 251.67 | 40.61 | 252.10 | 0.6806 | 699.0 | 457.4 | |
| 0.00 | 2.35 | 0.00 | 1.59 | -7.66 | 251.61 | 40.56 | 251.77 | 0.6807 | 4.0 | 58.8 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -5.81 | 251.35 | 40.29 | 254.30 | 0.6706 | -112.0 | -130.9 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -5.73 | 251.14 | 40.08 | 254.32 | 0.6677 | 448.0 | 417.7 | |
| 4.43 | 16.55 | 2.94 | 10.98 | -6.46 | 250.92 | 39.87 | 253.18 | 0.6677 | 858.8 | 650.1 | |
| 1.27 | -18.00 | 0.84 | -18.00 | -6.57 | 250.69 | 39.64 | 252.92 | 0.6652 | 797.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -6.61 | 250.46 | 39.40 | 252.75 | 0.6625 | 710.0 | 616.6 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -7.59 | 250.08 | 39.02 | 251.18 | 0.6617 | 673.0 | 573.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -1.35 | 249.34 | 38.29 | 260.25 | 0.6308 | 543.0 | 418.3 | |
| 5.25 | 18.09 | 3.40 | 11.74 | -6.97 | 249.23 | 38.17 | 251.68 | 0.6485 | 863.8 | 611.0 | |
| 0.90 | 2.89 | 0.59 | 1.89 | -7.90 | 249.25 | 38.19 | 250.32 | 0.6527 | 682.2 | 501.4 | |
| 2.53 | 5.79 | 1.67 | 3.81 | -9.26 | 249.33 | 38.27 | 248.41 | 0.6598 | -617.6 | -307.4 | |
| 1.27 | -23.00 | 0.82 | -23.00 | -7.10 | 248.97 | 37.91 | 251.35 | 0.6458 | 805.6 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.20 | -10.51 | 249.27 | 38.21 | 246.60 | 0.6649 | -560.0 | -490.2 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -7.34 | 248.84 | 37.78 | 250.93 | 0.6452 | 800.0 | 630.6 | |
| 2.44 | 3.71 | 1.60 | 2.43 | -9.14 | 249.00 | 37.95 | 248.40 | 0.6552 | -786.7 | -600.6 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -8.65 | 248.75 | 37.69 | 248.97 | 0.6498 | 504.0 | 339.5 | |
| 0.00 | 1.45 | 0.00 | 0.96 | -12.03 | 249.15 | 38.09 | 244.43 | 0.6711 | -646.0 | -462.1 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -6.33 | 248.05 | 36.99 | 252.07 | 0.6309 | 582.0 | 358.2 | |
| 1.18 | 2.80 | 0.75 | 1.79 | -7.12 | 247.77 | 36.72 | 250.73 | 0.6307 | 795.6 | 591.8 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -7.52 | 247.70 | 36.64 | 250.09 | 0.6315 | 738.0 | 632.6 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -10.91 | 248.11 | 37.05 | 245.38 | 0.6531 | -498.0 | -410.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -8.88 | 247.50 | 36.44 | 247.96 | 0.6354 | -791.0 | -656.1 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -7.92 | 247.09 | 36.03 | 249.17 | 0.6256 | 797.0 | 718.5 | |
| 0.45 | 5.16 | 0.29 | 3.27 | -8.19 | 247.00 | 35.95 | 248.71 | 0.6258 | 864.4 | 708.1 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -6.20 | 246.63 | 35.58 | 251.55 | 0.6119 | 801.0 | 695.2 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -9.84 | 245.26 | 34.20 | 245.18 | 0.6125 | -508.0 | -486.9 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -9.92 | 245.08 | 34.03 | 244.94 | 0.6107 | -615.0 | -516.2 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -12.66 | 245.19 | 34.13 | 241.00 | 0.6282 | -450.0 | -398.5 | |
| 0.00 | 1.81 | 0.00 | 1.13 | -11.54 | 244.09 | 33.04 | 241.85 | 0.6081 | -282.0 | -267.5 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -6.93 | 241.10 | 30.04 | 247.01 | 0.5420 | -854.0 | -702.0 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -8.18 | 241.12 | 30.07 | 244.92 | 0.5497 | -606.0 | -445.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -7.72 | 240.17 | 29.11 | 244.96 | 0.5342 | -654.0 | -527.7 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -9.08 | 240.24 | 29.19 | 242.75 | 0.5438 | -663.0 | -545.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
