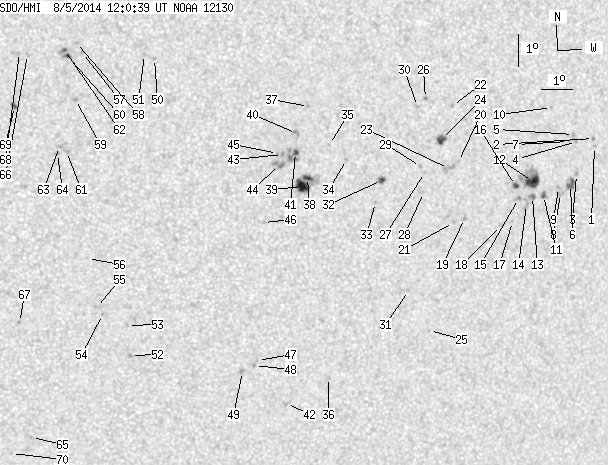

SDO HMI 2014-08-05 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.15 | 210.95 | 23.35 | 113.66 | -7.69 | 228.85 | 17.80 | 231.01 | 0.3874 | 254.7 | 269.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.86 | -6.83 | 236.11 | 25.05 | 243.09 | 0.4734 | 645.0 | 476.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -6.58 | 236.06 | 25.01 | 243.52 | 0.4710 | 770.0 | 625.9 | |
| 0.00 | 1.90 | 0.00 | 1.07 | -7.68 | 235.55 | 24.49 | 240.94 | 0.4719 | 751.0 | 576.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -6.65 | 235.49 | 24.43 | 242.85 | 0.4637 | 812.0 | 653.8 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -6.42 | 235.38 | 24.32 | 243.17 | 0.4605 | 889.0 | 733.1 | |
| 3.62 | 7.96 | 2.03 | 4.47 | -7.98 | 235.37 | 24.31 | 240.19 | 0.4718 | 831.5 | 667.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -6.63 | 235.22 | 24.17 | 242.60 | 0.4599 | 626.0 | 515.9 | |
| 0.00 | 3.71 | 0.00 | 2.08 | -8.25 | 235.05 | 23.99 | 239.36 | 0.4696 | 780.0 | 615.1 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -8.06 | 234.97 | 23.91 | 239.63 | 0.4670 | 1010.0 | 789.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -5.55 | 234.60 | 23.55 | 244.15 | 0.4437 | -510.0 | -389.1 | |
| 1.54 | 3.80 | 0.86 | 2.12 | -8.29 | 234.48 | 23.42 | 238.67 | 0.4623 | 887.8 | 700.2 | |
| 11.40 | 30.75 | 6.33 | 17.06 | -7.83 | 234.08 | 23.03 | 239.10 | 0.4535 | 1015.5 | 546.7 | |
| 0.00 | 3.71 | 0.00 | 2.06 | -8.30 | 234.11 | 23.05 | 238.24 | 0.4576 | 997.0 | 859.0 | |
| 0.00 | 5.25 | 0.00 | 2.92 | -8.55 | 233.92 | 22.87 | 237.57 | 0.4572 | 720.0 | 560.5 | |
| 0.00 | 2.62 | 0.00 | 1.45 | -8.35 | 233.64 | 22.59 | 237.62 | 0.4518 | 937.0 | 806.5 | |
| 2.08 | 3.62 | 1.15 | 2.00 | -7.93 | 233.52 | 22.46 | 238.27 | 0.4468 | 1038.3 | 771.6 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -9.06 | 233.49 | 22.43 | 236.11 | 0.4559 | 698.0 | 509.9 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -9.17 | 233.13 | 22.07 | 235.47 | 0.4522 | 794.0 | 593.2 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -8.90 | 231.89 | 20.83 | 234.40 | 0.4339 | 733.0 | 603.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.10 | 231.60 | 20.54 | 237.57 | 0.4143 | 758.0 | 537.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -9.01 | 231.53 | 20.48 | 233.72 | 0.4304 | 792.0 | 602.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -5.35 | 231.33 | 20.28 | 240.97 | 0.3963 | 765.0 | 650.4 | |
| 0.00 | 6.78 | 0.00 | 3.68 | -7.31 | 231.28 | 20.22 | 236.73 | 0.4118 | 737.0 | 718.1 | |
| 4.43 | 6.78 | 2.39 | 3.66 | -6.39 | 231.01 | 19.96 | 238.29 | 0.4004 | -979.2 | -711.5 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -12.42 | 230.97 | 19.92 | 226.93 | 0.4573 | 618.0 | 439.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -5.10 | 230.45 | 19.39 | 240.41 | 0.3819 | -758.0 | -668.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -7.40 | 230.50 | 19.44 | 235.48 | 0.4024 | 700.0 | 539.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -8.03 | 230.50 | 19.44 | 234.20 | 0.4081 | 776.0 | 626.8 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -7.21 | 230.36 | 19.31 | 235.68 | 0.3988 | 906.0 | 692.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -5.34 | 230.19 | 19.14 | 239.53 | 0.3803 | 784.0 | 603.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -11.11 | 230.19 | 19.13 | 227.98 | 0.4346 | 936.0 | 746.1 | |
| 2.26 | 4.25 | 1.21 | 2.28 | -7.60 | 229.12 | 18.06 | 233.03 | 0.3862 | 1052.7 | 786.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.29 | 228.95 | 17.90 | 231.38 | 0.3909 | 843.0 | 638.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -6.91 | 227.96 | 16.91 | 232.68 | 0.3646 | 847.0 | 626.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -6.42 | 227.40 | 16.35 | 232.82 | 0.3525 | 673.0 | 586.6 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -13.82 | 227.76 | 16.70 | 219.72 | 0.4385 | -606.0 | -528.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -5.22 | 226.70 | 15.65 | 234.45 | 0.3315 | 862.0 | 647.7 | |
| 2.89 | 28.85 | 1.53 | 15.29 | -7.43 | 226.74 | 15.68 | 229.41 | 0.3544 | 865.4 | 211.6 | |
| 10.40 | -38.00 | 5.51 | -38.00 | -7.71 | 226.59 | 15.53 | 228.54 | 0.3556 | 930.1 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.66 | -6.05 | 226.34 | 15.29 | 231.81 | 0.3350 | 948.0 | 844.1 | |
| 1.72 | 11.67 | 0.91 | 6.14 | -6.64 | 226.33 | 15.27 | 230.41 | 0.3410 | 980.1 | 798.7 | |
| 0.00 | 3.44 | 0.00 | 1.89 | -14.62 | 226.44 | 15.39 | 216.29 | 0.4356 | -732.0 | -612.4 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -6.69 | 225.92 | 14.86 | 229.52 | 0.3363 | 1005.0 | 862.3 | |
| 0.00 | 6.42 | 0.00 | 3.38 | -7.00 | 225.83 | 14.78 | 228.66 | 0.3386 | 898.0 | 753.7 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -6.65 | 225.76 | 14.70 | 229.29 | 0.3340 | 862.0 | 774.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -8.80 | 225.39 | 14.33 | 223.98 | 0.3538 | 750.0 | 640.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -13.19 | 225.41 | 14.35 | 216.45 | 0.4079 | -786.0 | -639.4 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -13.35 | 225.32 | 14.27 | 216.05 | 0.4091 | -930.0 | -744.3 | |
| 0.00 | 2.62 | 0.00 | 1.42 | -13.54 | 224.95 | 13.89 | 215.06 | 0.4080 | -1004.0 | -847.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -3.61 | 221.85 | 10.79 | 228.32 | 0.2513 | -866.0 | -731.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -3.48 | 221.53 | 10.48 | 227.87 | 0.2459 | -904.0 | -647.5 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -12.93 | 221.34 | 10.28 | 208.23 | 0.3693 | -921.0 | -787.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -11.97 | 221.20 | 10.15 | 209.23 | 0.3545 | -819.0 | -710.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -11.60 | 220.40 | 9.35 | 207.77 | 0.3430 | -940.0 | -727.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -11.37 | 220.21 | 9.15 | 207.58 | 0.3382 | -757.0 | -521.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.81 | 219.88 | 8.82 | 209.02 | 0.3129 | -635.0 | -374.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -3.38 | 219.62 | 8.56 | 222.34 | 0.2217 | -866.0 | -686.1 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -3.07 | 219.43 | 8.38 | 222.67 | 0.2156 | -698.0 | -685.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -4.83 | 219.42 | 8.36 | 217.61 | 0.2385 | -1035.0 | -836.3 | |
| 1.18 | 7.78 | 0.60 | 3.95 | -3.47 | 219.16 | 8.10 | 220.50 | 0.2176 | -1095.2 | -776.6 | |
| 0.00 | 2.44 | 0.00 | 1.25 | -6.44 | 219.16 | 8.10 | 213.01 | 0.2583 | -715.0 | -624.4 | |
| 0.54 | -60.00 | 0.28 | -60.00 | -3.28 | 219.06 | 8.01 | 220.73 | 0.2141 | -1145.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -6.28 | 218.94 | 7.89 | 212.63 | 0.2540 | -955.0 | -817.1 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -6.50 | 218.88 | 7.83 | 211.98 | 0.2566 | -817.0 | -667.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.54 | 218.29 | 7.24 | 198.27 | 0.3886 | -924.0 | -745.5 | |
| 0.00 | 2.17 | 0.00 | 1.10 | -3.42 | 217.93 | 6.87 | 216.04 | 0.2039 | -900.0 | -696.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -11.81 | 217.81 | 6.75 | 200.58 | 0.3287 | -788.0 | -622.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -3.35 | 217.68 | 6.63 | 215.24 | 0.2005 | -898.0 | -630.4 | |
| 1.09 | 3.17 | 0.55 | 1.61 | -5.02 | 217.54 | 6.48 | 210.41 | 0.2233 | 1038.5 | 857.9 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -16.05 | 217.67 | 6.62 | 196.41 | 0.3936 | -683.0 | -411.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
