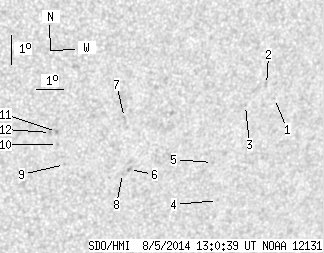

SDO HMI 2014-08-05 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.01 | 0.00 | 9.27 | -19.03 | 237.55 | 27.04 | 225.97 | 0.5989 | -141.6 | -197.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.17 | -17.91 | 242.13 | 31.63 | 231.88 | 0.6365 | 576.0 | 524.3 | |
| 0.00 | 1.90 | 0.00 | 1.21 | -17.43 | 241.74 | 31.23 | 232.17 | 0.6286 | 696.0 | 591.3 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -18.08 | 241.08 | 30.58 | 230.74 | 0.6268 | 705.0 | 519.5 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -21.26 | 240.70 | 30.19 | 226.44 | 0.6490 | 549.0 | 432.0 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -19.94 | 240.22 | 29.72 | 227.60 | 0.6333 | 715.0 | 524.2 | |
| 0.00 | 2.17 | 0.00 | 1.35 | -20.01 | 237.18 | 26.68 | 224.51 | 0.6040 | -745.0 | -585.5 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -18.25 | 236.70 | 26.19 | 226.24 | 0.5826 | -766.0 | -618.1 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -20.14 | 236.95 | 26.45 | 224.12 | 0.6029 | -691.0 | -560.0 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -19.73 | 234.80 | 24.30 | 222.25 | 0.5782 | -542.0 | -464.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -19.04 | 234.45 | 23.94 | 222.70 | 0.5678 | -661.0 | -529.9 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -18.60 | 234.35 | 23.84 | 223.14 | 0.5624 | -768.0 | -661.6 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -18.62 | 234.14 | 23.63 | 222.86 | 0.5606 | -767.0 | -658.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
