SDO HMI 2014-08-05 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.02 | 0.00 | 11.29 | -21.26 | 158.22 | -52.28 | 119.76 | 0.8498 | 398.0 | 314.0 | |
|
previous
or next observation for the same group /

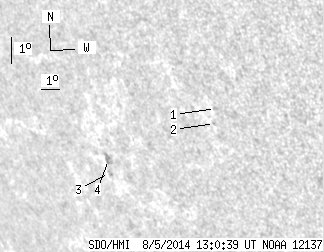

back to the solar disc SDO HMI 2014-08-05 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.94 | -19.43 | 163.22 | -47.28 | 119.90 | 0.8014 | 145.0 | 192.1 | |
| 0.00 | 0.99 | 0.00 | 0.83 | -19.95 | 162.97 | -47.53 | 120.37 | 0.8059 | 495.0 | 411.4 | |
| 0.00 | 2.08 | 0.00 | 2.06 | -22.15 | 156.47 | -54.03 | 119.99 | 0.8674 | 367.0 | 286.2 | |
| 0.00 | 6.60 | 0.00 | 6.46 | -21.70 | 156.67 | -53.83 | 119.57 | 0.8644 | 585.0 | 346.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
