SDO HMI 2014-08-05 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 12.83 | 1.08 | 9.32 | -21.07 | 248.98 | 39.02 | 233.52 | 0.7327 | 502.2 | 301.9 | |
|
previous
or next observation for the same group /

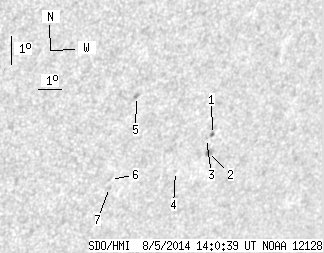

back to the solar disc SDO HMI 2014-08-05 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 1.81 | 0.47 | 1.34 | -20.78 | 250.48 | 40.53 | 234.84 | 0.7454 | 619.3 | 469.5 | |
| 0.81 | 4.70 | 0.61 | 3.51 | -21.39 | 250.46 | 40.51 | 234.12 | 0.7488 | 556.2 | 50.9 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -20.90 | 250.26 | 40.31 | 234.56 | 0.7440 | 550.0 | 502.3 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -21.95 | 249.28 | 39.33 | 232.71 | 0.7411 | 354.0 | 295.0 | |
| 0.00 | 2.53 | 0.00 | 1.75 | -19.25 | 246.87 | 36.91 | 234.29 | 0.7007 | 738.0 | 553.3 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -22.03 | 246.60 | 36.64 | 230.77 | 0.7165 | 526.0 | 462.5 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -22.31 | 246.64 | 36.69 | 230.48 | 0.7188 | 138.0 | 258.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
