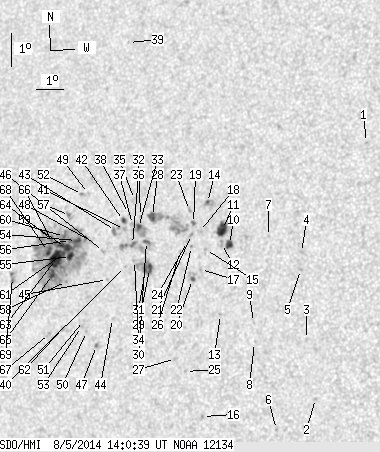

SDO HMI 2014-08-05 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.77 | 416.98 | 46.94 | 258.74 | 9.43 | 172.78 | -37.17 | 82.35 | 0.6033 | 168.5 | 242.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | 13.22 | 182.05 | -27.90 | 73.33 | 0.4775 | -756.0 | -533.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 5.35 | 180.94 | -29.01 | 89.93 | 0.4848 | -742.0 | -557.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 7.12 | 180.52 | -29.43 | 86.26 | 0.4906 | -671.0 | -494.5 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 9.76 | 180.13 | -29.83 | 80.95 | 0.4983 | -750.0 | -609.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 9.24 | 180.14 | -29.81 | 81.99 | 0.4975 | -786.0 | -607.5 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 4.34 | 179.62 | -30.33 | 91.80 | 0.5058 | -682.0 | -576.7 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 10.18 | 178.90 | -31.05 | 80.32 | 0.5171 | -627.0 | -421.2 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 6.94 | 178.69 | -31.27 | 86.63 | 0.5181 | -563.0 | -563.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 7.54 | 178.60 | -31.35 | 85.46 | 0.5194 | -686.0 | -546.7 | |
| 3.98 | 5.79 | 2.33 | 3.39 | 9.86 | 177.51 | -32.44 | 81.14 | 0.5369 | -951.1 | -727.2 | |
| 9.04 | 12.03 | 5.32 | 7.08 | 10.31 | 177.21 | -32.74 | 80.36 | 0.5419 | -950.8 | -625.2 | |
| 0.00 | 2.44 | 0.00 | 1.44 | 9.88 | 177.22 | -32.73 | 81.15 | 0.5412 | -791.0 | -600.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 7.72 | 177.39 | -32.56 | 85.15 | 0.5373 | -620.0 | -480.2 | |
| 0.63 | 5.33 | 0.38 | 3.16 | 11.10 | 176.56 | -33.40 | 79.03 | 0.5523 | -713.1 | -685.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 9.66 | 176.65 | -33.30 | 81.62 | 0.5492 | -839.0 | -607.8 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 4.59 | 176.95 | -33.00 | 90.94 | 0.5451 | -694.0 | -608.9 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 9.05 | 176.54 | -33.42 | 82.76 | 0.5504 | -727.0 | -501.9 | |
| 0.00 | 1.99 | 0.00 | 1.18 | 10.20 | 176.37 | -33.58 | 80.68 | 0.5538 | -672.0 | -558.7 | |
| 0.00 | 2.17 | 0.00 | 1.29 | 10.43 | 176.12 | -33.83 | 80.30 | 0.5576 | -749.0 | -657.8 | |
| 0.99 | 6.24 | 0.59 | 3.71 | 8.73 | 176.27 | -33.68 | 83.36 | 0.5540 | -752.2 | -552.4 | |
| 0.00 | 1.99 | 0.00 | 1.19 | 10.09 | 176.09 | -33.87 | 80.92 | 0.5577 | -685.0 | -566.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 9.73 | 176.13 | -33.83 | 81.57 | 0.5568 | -742.0 | -675.7 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 10.82 | 175.92 | -34.03 | 79.64 | 0.5609 | -583.0 | -468.2 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 9.87 | 175.96 | -33.99 | 81.33 | 0.5593 | -631.0 | -491.8 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 5.92 | 176.25 | -33.70 | 88.44 | 0.5542 | -629.0 | -498.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 9.58 | 175.73 | -34.22 | 81.87 | 0.5623 | -412.0 | -346.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 6.29 | 175.85 | -34.10 | 87.75 | 0.5598 | -463.0 | -386.3 | |
| 3.89 | 38.61 | 2.36 | 23.25 | 10.55 | 174.56 | -35.39 | 80.30 | 0.5798 | 1021.5 | 133.5 | |
| 3.16 | 16.27 | 1.92 | 9.88 | 8.97 | 174.64 | -35.32 | 83.04 | 0.5774 | -737.5 | -96.6 | |
| 1.45 | 5.70 | 0.88 | 3.46 | 9.78 | 174.43 | -35.52 | 81.65 | 0.5809 | 775.2 | 458.7 | |
| 2.08 | -29.00 | 1.26 | -29.00 | 8.96 | 174.49 | -35.47 | 83.07 | 0.5795 | -574.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 10.53 | 174.11 | -35.85 | 80.41 | 0.5861 | 644.0 | 512.1 | |
| 2.17 | 12.39 | 1.32 | 7.55 | 10.19 | 174.07 | -35.88 | 80.99 | 0.5862 | 1040.3 | 660.6 | |
| 0.00 | 1.72 | 0.00 | 1.05 | 9.18 | 174.04 | -35.91 | 82.72 | 0.5859 | 728.0 | 532.7 | |
| 0.00 | 2.71 | 0.00 | 1.66 | 11.03 | 173.81 | -36.15 | 79.59 | 0.5908 | 314.0 | 496.7 | |
| 1.08 | 13.47 | 0.66 | 8.23 | 9.66 | 173.91 | -36.04 | 81.91 | 0.5881 | 900.9 | 608.6 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 10.26 | 173.83 | -36.12 | 80.88 | 0.5896 | 755.0 | 702.8 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 10.59 | 173.64 | -36.32 | 80.36 | 0.5927 | 707.0 | 650.7 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 15.80 | 172.73 | -37.23 | 71.95 | 0.6145 | -505.0 | -392.7 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 8.97 | 173.72 | -36.23 | 83.09 | 0.5902 | 673.0 | 515.8 | |
| 0.00 | 1.99 | 0.00 | 1.22 | 10.09 | 173.55 | -36.40 | 81.20 | 0.5934 | 752.0 | 684.6 | |
| 1.45 | 2.98 | 0.89 | 1.83 | 10.36 | 173.47 | -36.48 | 80.75 | 0.5947 | 867.6 | 791.4 | |
| 0.00 | 5.42 | 0.00 | 3.35 | 10.04 | 173.21 | -36.74 | 81.32 | 0.5981 | 682.0 | 706.6 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 7.37 | 173.39 | -36.56 | 85.82 | 0.5945 | 652.0 | 544.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 8.54 | 173.08 | -36.87 | 83.85 | 0.5990 | -332.0 | -271.7 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 9.38 | 172.83 | -37.12 | 82.47 | 0.6029 | 791.0 | 648.0 | |
| 0.45 | 1.45 | 0.28 | 0.90 | 6.51 | 172.86 | -37.09 | 87.24 | 0.6022 | -525.0 | -435.5 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 9.65 | 172.33 | -37.63 | 82.05 | 0.6099 | 693.0 | 571.0 | |
| 0.00 | 1.72 | 0.00 | 1.08 | 11.10 | 172.01 | -37.95 | 79.71 | 0.6155 | 771.0 | 536.1 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 6.91 | 172.44 | -37.52 | 86.56 | 0.6079 | 538.0 | 455.9 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 7.24 | 172.29 | -37.66 | 86.02 | 0.6098 | 605.0 | 451.0 | |
| 0.00 | 2.08 | 0.00 | 1.31 | 11.06 | 171.78 | -38.18 | 79.81 | 0.6186 | 726.0 | 543.6 | |
| 0.00 | 2.08 | 0.00 | 1.30 | 7.05 | 172.23 | -37.72 | 86.33 | 0.6107 | 107.0 | 130.5 | |
| 3.62 | 225.95 | 2.27 | 143.29 | 9.64 | 171.74 | -38.21 | 82.10 | 0.6179 | 936.2 | 376.5 | |
| 4.07 | -54.00 | 2.56 | -54.00 | 9.14 | 171.57 | -38.38 | 82.92 | 0.6200 | 1013.2 | 999999 | |
| 0.27 | -54.00 | 0.17 | -54.00 | 9.63 | 171.51 | -38.45 | 82.14 | 0.6211 | 773.0 | 999999 | |
| 0.00 | 3.53 | 0.00 | 2.23 | 10.39 | 171.36 | -38.59 | 80.93 | 0.6236 | 666.0 | 620.1 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 8.38 | 171.50 | -38.45 | 84.17 | 0.6206 | 712.0 | 595.5 | |
| 7.41 | -54.00 | 4.69 | -54.00 | 9.40 | 171.34 | -38.61 | 82.51 | 0.6232 | 909.8 | 999999 | |
| 1.27 | -54.00 | 0.80 | -54.00 | 9.74 | 171.25 | -38.70 | 81.99 | 0.6245 | 642.0 | 999999 | |
| 3.35 | -54.00 | 2.12 | -54.00 | 9.22 | 171.28 | -38.67 | 82.82 | 0.6239 | 949.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.25 | 6.94 | 171.50 | -38.45 | 86.49 | 0.6207 | 836.0 | 704.8 | |
| 15.28 | -54.00 | 9.70 | -54.00 | 9.02 | 170.99 | -38.96 | 83.15 | 0.6277 | 902.1 | 999999 | |
| 0.81 | -54.00 | 0.52 | -54.00 | 9.53 | 170.92 | -39.03 | 82.34 | 0.6289 | 612.8 | 999999 | |
| 4.16 | -54.00 | 2.64 | -54.00 | 8.55 | 170.93 | -39.02 | 83.90 | 0.6284 | 776.3 | 999999 | |
| 1.36 | -54.00 | 0.86 | -54.00 | 9.61 | 170.75 | -39.20 | 82.22 | 0.6312 | 518.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 6.76 | 171.00 | -38.95 | 86.77 | 0.6275 | 786.0 | 651.3 | |
| 3.80 | -54.00 | 2.42 | -54.00 | 9.24 | 170.68 | -39.27 | 82.81 | 0.6319 | 661.6 | 999999 | |
| 0.00 | 3.98 | 0.00 | 2.59 | 8.36 | 169.35 | -40.60 | 84.23 | 0.6495 | -537.0 | -509.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
