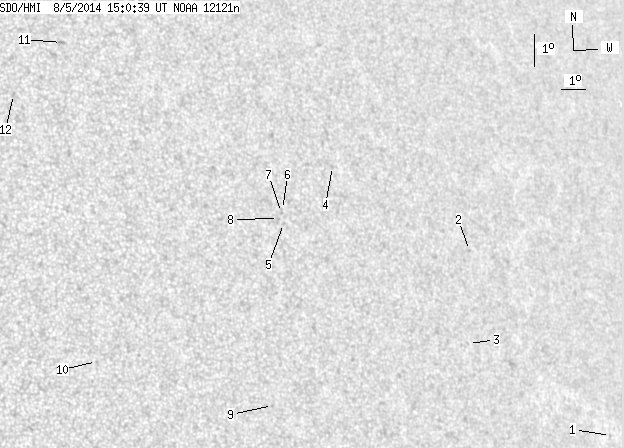

SDO HMI 2014-08-05 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.07 | 0.00 | 9.65 | 16.40 | 247.22 | 37.82 | 289.69 | 0.6258 | 563.9 | 461.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.85 | 8.63 | 260.84 | 51.44 | 276.20 | 0.7798 | 488.0 | 363.2 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 14.75 | 255.61 | 46.21 | 284.64 | 0.7238 | 623.0 | 481.0 | |
| 0.00 | 0.63 | 0.00 | 0.45 | 11.93 | 254.86 | 45.46 | 280.79 | 0.7123 | 402.0 | 372.4 | |
| 0.00 | 1.63 | 0.00 | 1.08 | 17.74 | 250.42 | 41.02 | 289.96 | 0.6674 | 72.0 | 89.8 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 16.13 | 247.98 | 38.58 | 288.18 | 0.6327 | 704.0 | 627.1 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 16.56 | 248.04 | 38.64 | 288.84 | 0.6346 | 551.0 | 489.4 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 16.47 | 247.98 | 38.58 | 288.71 | 0.6336 | 694.0 | 624.1 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 16.29 | 247.81 | 38.41 | 288.49 | 0.6311 | 690.0 | 599.2 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 10.61 | 246.51 | 37.11 | 279.58 | 0.6036 | 625.0 | 450.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 12.33 | 240.15 | 30.75 | 283.89 | 0.5165 | 568.0 | 439.3 | |
| 0.00 | 2.80 | 0.00 | 1.68 | 22.26 | 240.72 | 31.32 | 301.33 | 0.5654 | 719.0 | 628.9 | |
| 0.00 | 1.99 | 0.00 | 1.16 | 20.72 | 238.55 | 29.15 | 300.22 | 0.5293 | 631.0 | 407.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
