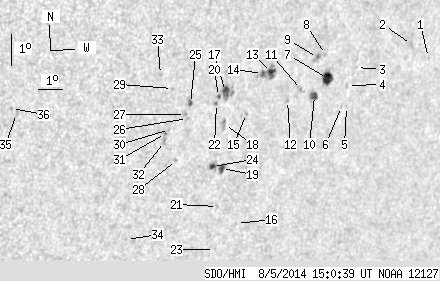

SDO HMI 2014-08-05 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.83 | 99.15 | 19.84 | 67.53 | -7.32 | 250.56 | 41.17 | 252.42 | 0.6864 | 365.6 | 290.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.28 | -6.53 | 257.89 | 48.49 | 256.20 | 0.7684 | 458.0 | 523.0 | |
| 0.00 | 2.98 | 0.00 | 2.26 | -6.05 | 257.05 | 47.65 | 256.55 | 0.7579 | 530.0 | 313.0 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -6.58 | 254.66 | 45.26 | 255.08 | 0.7325 | 517.0 | 478.6 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -7.11 | 254.33 | 44.93 | 254.26 | 0.7304 | 279.0 | 207.2 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -7.77 | 254.37 | 44.97 | 253.41 | 0.7330 | 420.0 | 353.7 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -7.75 | 254.15 | 44.75 | 253.35 | 0.7304 | 484.0 | 472.0 | |
| 9.04 | 13.38 | 6.42 | 9.50 | -6.83 | 253.43 | 44.03 | 254.32 | 0.7191 | 746.4 | 405.0 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -6.07 | 253.26 | 43.86 | 255.28 | 0.7147 | -632.0 | -447.7 | |
| 0.00 | 3.80 | 0.00 | 2.67 | -6.14 | 252.93 | 43.53 | 255.07 | 0.7110 | -440.0 | -330.6 | |
| 3.34 | 5.24 | 2.36 | 3.70 | -7.32 | 252.94 | 43.54 | 253.47 | 0.7150 | 664.0 | 480.0 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -7.09 | 252.36 | 42.96 | 253.56 | 0.7074 | 635.0 | 565.7 | |
| 0.00 | 1.81 | 0.00 | 1.25 | -7.39 | 251.81 | 42.41 | 252.93 | 0.7019 | 641.0 | 504.0 | |
| 4.34 | 14.28 | 2.96 | 9.72 | -6.46 | 251.04 | 41.65 | 253.91 | 0.6895 | 831.2 | 637.3 | |
| 1.36 | -13.00 | 0.92 | -13.00 | -6.47 | 250.68 | 41.28 | 253.75 | 0.6851 | 816.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -7.67 | 250.15 | 40.75 | 251.84 | 0.6832 | 634.0 | 542.6 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -11.14 | 250.24 | 40.84 | 247.13 | 0.6987 | -531.0 | -492.0 | |
| 4.52 | 12.84 | 3.01 | 8.55 | -6.92 | 249.23 | 39.83 | 252.49 | 0.6690 | 896.2 | 581.8 | |
| 0.00 | 4.07 | 0.00 | 2.72 | -7.96 | 249.30 | 39.90 | 251.05 | 0.6739 | 710.0 | 612.3 | |
| 2.53 | 4.61 | 1.71 | 3.11 | -9.34 | 249.35 | 39.95 | 249.14 | 0.6804 | -617.8 | -399.4 | |
| 0.54 | 1.63 | 0.36 | 1.08 | -7.06 | 248.96 | 39.56 | 252.18 | 0.6662 | 833.2 | 847.2 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -10.54 | 249.37 | 39.97 | 247.49 | 0.6859 | -556.0 | -442.3 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -7.27 | 248.90 | 39.50 | 251.84 | 0.6663 | 742.0 | 675.7 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -11.91 | 249.47 | 40.07 | 245.69 | 0.6935 | -329.0 | -377.0 | |
| 2.08 | 5.51 | 1.39 | 3.70 | -9.25 | 248.98 | 39.58 | 249.08 | 0.6755 | -847.0 | -591.0 | |
| 1.08 | 2.89 | 0.71 | 1.89 | -7.20 | 247.87 | 38.47 | 251.47 | 0.6532 | 793.8 | 629.3 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -7.67 | 247.80 | 38.40 | 250.76 | 0.6542 | 580.0 | 525.4 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -7.53 | 247.70 | 38.30 | 250.90 | 0.6525 | 658.0 | 585.4 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -8.96 | 247.51 | 38.11 | 248.74 | 0.6565 | -689.0 | -585.7 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -6.68 | 247.11 | 37.72 | 251.87 | 0.6416 | 524.0 | 447.5 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -7.96 | 247.12 | 37.73 | 249.99 | 0.6472 | 719.0 | 648.7 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -8.08 | 246.98 | 37.58 | 249.75 | 0.6459 | 943.0 | 802.9 | |
| 0.00 | 2.71 | 0.00 | 1.76 | -8.33 | 246.97 | 37.57 | 249.38 | 0.6469 | 679.0 | 628.2 | |
| 0.00 | 2.08 | 0.00 | 1.33 | -6.21 | 246.61 | 37.21 | 252.34 | 0.6332 | 611.0 | 464.1 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -11.35 | 245.89 | 36.49 | 244.42 | 0.6487 | -560.0 | -468.3 | |
| 0.00 | 2.44 | 0.00 | 1.47 | -7.10 | 241.31 | 31.91 | 247.99 | 0.5680 | -486.0 | -576.7 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -6.93 | 241.12 | 31.72 | 248.14 | 0.5645 | -780.0 | -720.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
