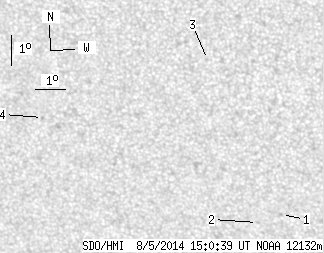

SDO HMI 2014-08-05 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.69 | 0.00 | 2.08 | -17.41 | 193.91 | -15.49 | 147.21 | 0.4745 | -622.2 | -469.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.51 | -19.69 | 196.92 | -12.48 | 154.80 | 0.4798 | -720.0 | -561.4 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -19.98 | 196.10 | -13.30 | 153.65 | 0.4892 | -614.0 | -468.3 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -14.61 | 194.88 | -14.52 | 145.27 | 0.4277 | -586.0 | -394.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -16.69 | 189.23 | -20.17 | 139.06 | 0.5061 | -569.0 | -468.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
