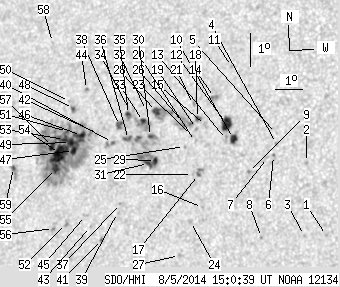

SDO HMI 2014-08-05 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.65 | 432.92 | 47.14 | 266.96 | 9.36 | 172.74 | -36.66 | 82.42 | 0.5961 | 180.4 | 258.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.51 | 7.12 | 181.03 | -28.37 | 86.27 | 0.4744 | -765.0 | -644.3 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 9.30 | 180.16 | -29.24 | 81.79 | 0.4890 | -724.0 | -567.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 7.08 | 180.26 | -29.14 | 86.36 | 0.4861 | -689.0 | -614.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 9.82 | 179.04 | -30.36 | 80.92 | 0.5064 | -500.0 | -438.2 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 10.13 | 179.01 | -30.39 | 80.32 | 0.5072 | -527.0 | -514.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 9.45 | 178.97 | -30.43 | 81.66 | 0.5070 | 650.0 | 523.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 9.38 | 178.76 | -30.64 | 81.83 | 0.5100 | -183.0 | -158.6 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 6.94 | 178.75 | -30.65 | 86.64 | 0.5089 | -644.0 | -577.1 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 8.92 | 178.12 | -31.28 | 82.80 | 0.5190 | -838.0 | -670.8 | |
| 4.16 | 7.41 | 2.42 | 4.32 | 9.89 | 177.48 | -31.92 | 81.02 | 0.5294 | -956.0 | -581.3 | |
| 0.00 | 1.72 | 0.00 | 1.01 | 12.08 | 177.14 | -32.26 | 77.00 | 0.5377 | -659.0 | -417.2 | |
| 9.49 | 12.57 | 5.55 | 7.35 | 10.33 | 177.17 | -32.23 | 80.24 | 0.5344 | -930.7 | -635.4 | |
| 0.00 | 2.35 | 0.00 | 1.37 | 9.85 | 177.23 | -32.17 | 81.14 | 0.5330 | -667.0 | -622.9 | |
| 0.00 | 4.16 | 0.00 | 2.45 | 11.10 | 176.64 | -32.76 | 78.91 | 0.5432 | -830.0 | -729.8 | |
| 0.00 | 3.44 | 0.00 | 2.03 | 10.23 | 176.41 | -32.98 | 80.54 | 0.5452 | -657.0 | -472.4 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 7.73 | 176.56 | -32.84 | 85.14 | 0.5414 | -703.0 | -589.6 | |
| 0.63 | 4.88 | 0.37 | 2.88 | 8.73 | 176.32 | -33.08 | 83.32 | 0.5453 | -762.4 | -695.3 | |
| 1.54 | 3.53 | 0.91 | 2.09 | 10.43 | 176.10 | -33.30 | 80.23 | 0.5501 | -687.2 | -523.2 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 10.12 | 176.09 | -33.30 | 80.79 | 0.5497 | -649.0 | -526.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 9.72 | 176.10 | -33.30 | 81.51 | 0.5492 | -745.0 | -595.6 | |
| 0.00 | 1.81 | 0.00 | 1.07 | 10.84 | 175.90 | -33.50 | 79.51 | 0.5535 | -538.0 | -396.6 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 8.72 | 176.10 | -33.30 | 83.35 | 0.5485 | -469.0 | -387.7 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 9.90 | 175.94 | -33.46 | 81.22 | 0.5518 | -602.0 | -477.6 | |
| 0.00 | 2.08 | 0.00 | 1.23 | 7.29 | 176.15 | -33.24 | 85.97 | 0.5472 | -622.0 | -438.2 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 9.55 | 175.71 | -33.68 | 81.87 | 0.5546 | -430.0 | -417.7 | |
| 0.00 | 17.00 | 0.00 | 10.12 | 10.28 | 175.59 | -33.81 | 80.58 | 0.5571 | -53.0 | -121.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 6.23 | 175.83 | -33.57 | 87.89 | 0.5521 | -598.0 | -432.9 | |
| 3.89 | 17.81 | 2.34 | 10.71 | 10.55 | 174.55 | -34.85 | 80.23 | 0.5722 | 993.4 | 501.6 | |
| 2.44 | 39.05 | 1.47 | 23.58 | 9.06 | 174.69 | -34.71 | 82.84 | 0.5689 | -639.7 | 244.8 | |
| 1.08 | -29.00 | 0.65 | -29.00 | 9.78 | 174.42 | -34.98 | 81.60 | 0.5733 | 850.5 | 999999 | |
| 2.62 | -29.00 | 1.58 | -29.00 | 8.96 | 174.43 | -34.97 | 83.04 | 0.5725 | -575.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 10.56 | 174.17 | -35.23 | 80.27 | 0.5776 | 608.0 | 454.5 | |
| 1.90 | 20.43 | 1.15 | 12.40 | 10.22 | 174.10 | -35.30 | 80.87 | 0.5782 | 998.1 | 685.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 10.49 | 173.57 | -35.83 | 80.46 | 0.5859 | 524.0 | 649.6 | |
| 1.45 | -33.00 | 0.88 | -33.00 | 10.40 | 173.50 | -35.90 | 80.63 | 0.5867 | 883.5 | 999999 | |
| 0.00 | 5.42 | 0.00 | 3.31 | 9.64 | 173.60 | -35.80 | 81.92 | 0.5847 | 874.0 | 707.1 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 7.68 | 173.51 | -35.89 | 85.29 | 0.5852 | 728.0 | 556.5 | |
| 2.62 | 4.97 | 1.61 | 3.05 | 10.04 | 173.20 | -36.20 | 81.27 | 0.5905 | 802.0 | 652.1 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 7.40 | 173.42 | -35.98 | 85.77 | 0.5864 | 595.0 | 515.4 | |
| 0.36 | 4.34 | 0.22 | 2.67 | 9.51 | 173.00 | -36.40 | 82.19 | 0.5929 | 839.5 | 743.0 | |
| 0.00 | 1.72 | 0.00 | 1.06 | 6.54 | 172.89 | -36.51 | 87.21 | 0.5940 | -473.0 | -405.0 | |
| 0.00 | 2.26 | 0.00 | 1.40 | 9.75 | 172.39 | -37.01 | 81.84 | 0.6015 | 660.0 | 549.3 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 6.91 | 172.43 | -36.97 | 86.58 | 0.6003 | 539.0 | 434.8 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 11.06 | 171.78 | -37.62 | 79.74 | 0.6110 | 718.0 | 615.2 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 7.23 | 172.21 | -37.19 | 86.04 | 0.6033 | 593.0 | 536.1 | |
| 2.98 | 235.05 | 1.86 | 147.95 | 9.65 | 171.78 | -37.62 | 82.05 | 0.6098 | 944.5 | 383.5 | |
| 3.62 | -46.00 | 2.26 | -46.00 | 9.18 | 171.53 | -37.87 | 82.85 | 0.6130 | 1020.4 | 999999 | |
| 0.99 | 3.71 | 0.62 | 2.33 | 10.45 | 171.36 | -38.04 | 80.78 | 0.6161 | 760.9 | 673.8 | |
| 4.70 | -46.00 | 2.95 | -46.00 | 9.41 | 171.38 | -38.02 | 82.47 | 0.6151 | 952.7 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 10.65 | 171.17 | -38.23 | 80.47 | 0.6188 | 551.0 | 474.5 | |
| 0.90 | -46.00 | 0.57 | -46.00 | 9.74 | 171.22 | -38.18 | 81.95 | 0.6175 | 673.2 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.58 | 6.94 | 171.50 | -37.90 | 86.50 | 0.6131 | 795.0 | 704.5 | |
| 1.27 | -46.00 | 0.80 | -46.00 | 9.49 | 171.14 | -38.26 | 82.36 | 0.6185 | 865.7 | 999999 | |
| 20.07 | -46.00 | 12.64 | -46.00 | 9.05 | 171.00 | -38.40 | 83.08 | 0.6202 | 912.3 | 999999 | |
| 4.97 | -46.00 | 3.14 | -46.00 | 8.58 | 170.90 | -38.50 | 83.83 | 0.6214 | 791.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 6.76 | 171.01 | -38.39 | 86.78 | 0.6199 | 751.0 | 668.7 | |
| 4.07 | -46.00 | 2.57 | -46.00 | 9.24 | 170.70 | -38.70 | 82.78 | 0.6243 | 664.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 12.40 | 170.21 | -39.19 | 77.80 | 0.6336 | 616.0 | 467.6 | |
| 0.90 | 6.33 | 0.58 | 4.08 | 8.51 | 169.23 | -40.17 | 84.00 | 0.6437 | -623.3 | -541.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
