SDO HMI 2014-08-05 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.25 | 434.33 | 58.21 | 265.93 | 9.32 | 172.75 | -36.09 | 82.47 | 0.5882 | 191.4 | 252.8 | |
|
previous
or next observation for the same group /

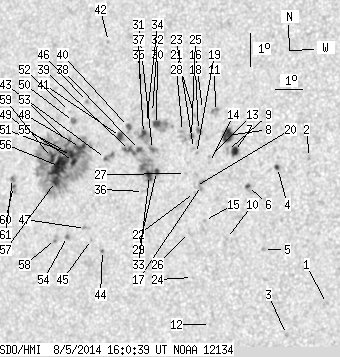

back to the solar disc SDO HMI 2014-08-05 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.21 | 5.41 | 181.06 | -27.79 | 89.94 | 0.4660 | -177.0 | -288.2 | |
| 0.00 | 1.90 | 0.00 | 1.07 | 9.82 | 180.15 | -28.69 | 80.63 | 0.4814 | -682.0 | -649.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 4.40 | 179.71 | -29.13 | 91.88 | 0.4876 | -491.0 | -443.2 | |
| 1.36 | 2.44 | 0.77 | 1.39 | 9.46 | 179.06 | -29.79 | 81.56 | 0.4974 | 706.5 | 546.6 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 6.94 | 178.76 | -30.08 | 86.64 | 0.5004 | -761.0 | -589.6 | |
| 1.08 | 3.98 | 0.62 | 2.29 | 8.83 | 178.04 | -30.80 | 82.94 | 0.5119 | -755.7 | -511.6 | |
| 4.25 | 6.24 | 2.46 | 3.62 | 9.86 | 177.47 | -31.37 | 81.00 | 0.5214 | -976.6 | -741.9 | |
| 9.40 | 13.20 | 5.47 | 7.68 | 10.34 | 177.17 | -31.68 | 80.14 | 0.5264 | -963.2 | -632.0 | |
| 0.00 | 2.35 | 0.00 | 1.37 | 9.88 | 177.22 | -31.63 | 81.00 | 0.5251 | -726.0 | -592.5 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 7.21 | 177.42 | -31.42 | 86.12 | 0.5204 | -613.0 | -528.1 | |
| 0.00 | 6.06 | 0.00 | 3.55 | 11.04 | 176.65 | -32.20 | 78.91 | 0.5350 | -919.0 | -723.1 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 4.56 | 177.01 | -31.83 | 91.15 | 0.5279 | -648.0 | -650.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 9.66 | 176.58 | -32.26 | 81.50 | 0.5341 | -821.0 | -694.9 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 9.48 | 176.60 | -32.24 | 81.84 | 0.5337 | -461.0 | -398.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 7.71 | 176.59 | -32.26 | 85.17 | 0.5329 | -757.0 | -624.7 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 11.08 | 176.16 | -32.68 | 78.94 | 0.5420 | -425.0 | -466.7 | |
| 0.00 | 4.70 | 0.00 | 2.76 | 8.77 | 176.38 | -32.46 | 83.20 | 0.5363 | -559.0 | -703.2 | |
| 0.81 | 3.43 | 0.48 | 2.02 | 10.43 | 176.10 | -32.75 | 80.14 | 0.5421 | -719.2 | -572.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 9.73 | 176.10 | -32.74 | 81.44 | 0.5412 | -746.0 | -609.8 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 8.72 | 176.17 | -32.68 | 83.30 | 0.5394 | -368.0 | -414.2 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 10.88 | 175.89 | -32.95 | 79.35 | 0.5456 | -607.0 | -441.7 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 8.54 | 176.15 | -32.70 | 83.64 | 0.5396 | -542.0 | -413.9 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 9.87 | 175.98 | -32.87 | 81.19 | 0.5432 | -698.0 | -604.1 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 5.96 | 176.28 | -32.56 | 88.46 | 0.5376 | -754.0 | -617.3 | |
| 0.54 | 6.60 | 0.32 | 3.90 | 10.23 | 175.86 | -32.99 | 80.54 | 0.5452 | -640.7 | -281.3 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 7.31 | 176.04 | -32.81 | 85.92 | 0.5409 | -417.0 | -423.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 9.10 | 175.76 | -33.08 | 82.64 | 0.5456 | -512.0 | -400.3 | |
| 0.00 | 1.99 | 0.00 | 1.18 | 10.37 | 175.51 | -33.33 | 80.35 | 0.5504 | 199.0 | 173.7 | |
| 1.90 | 49.80 | 1.13 | 29.94 | 9.10 | 174.69 | -34.16 | 82.73 | 0.5610 | -682.2 | 315.2 | |
| 3.89 | 16.90 | 2.33 | 10.11 | 10.53 | 174.52 | -34.32 | 80.21 | 0.5647 | 972.7 | 539.6 | |
| 0.90 | 19.71 | 0.54 | 11.85 | 9.76 | 174.47 | -34.38 | 81.58 | 0.5647 | 874.2 | 589.1 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 10.88 | 174.33 | -34.52 | 79.61 | 0.5679 | 729.0 | 661.6 | |
| 4.79 | -29.00 | 2.87 | -29.00 | 8.96 | 174.44 | -34.40 | 82.99 | 0.5645 | -566.7 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 10.56 | 174.14 | -34.70 | 80.19 | 0.5701 | 521.0 | 543.0 | |
| 2.80 | -31.00 | 1.69 | -31.00 | 10.22 | 174.07 | -34.77 | 80.80 | 0.5708 | 1048.4 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.30 | 8.46 | 174.27 | -34.58 | 83.89 | 0.5667 | -407.0 | -269.0 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 11.71 | 173.76 | -35.09 | 78.27 | 0.5770 | 422.0 | 469.0 | |
| 1.72 | -29.00 | 1.04 | -29.00 | 9.73 | 173.98 | -34.87 | 81.68 | 0.5716 | 1014.8 | 999999 | |
| 3.43 | -29.00 | 2.08 | -29.00 | 9.68 | 173.61 | -35.24 | 81.81 | 0.5768 | 799.4 | 999999 | |
| 1.81 | 4.52 | 1.10 | 2.74 | 10.40 | 173.48 | -35.36 | 80.56 | 0.5792 | 1015.3 | 772.0 | |
| 3.07 | 5.33 | 1.87 | 3.24 | 10.08 | 173.22 | -35.63 | 81.15 | 0.5826 | 833.1 | 657.9 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 12.94 | 172.33 | -36.51 | 76.45 | 0.5987 | 679.0 | 585.1 | |
| 0.63 | 6.78 | 0.39 | 4.14 | 9.38 | 172.73 | -36.11 | 82.39 | 0.5889 | 790.7 | 726.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 6.58 | 172.90 | -35.95 | 87.17 | 0.5861 | -345.0 | -390.9 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 6.89 | 172.46 | -36.39 | 86.63 | 0.5922 | 364.0 | 389.3 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 11.07 | 171.81 | -37.03 | 79.65 | 0.6030 | 698.0 | 636.4 | |
| 0.00 | 2.62 | 0.00 | 1.61 | 7.21 | 172.20 | -36.65 | 86.09 | 0.5958 | 585.0 | 598.2 | |
| 4.61 | 233.21 | 2.86 | 145.75 | 9.65 | 171.74 | -37.11 | 82.01 | 0.6028 | 948.2 | 372.6 | |
| 3.16 | -48.00 | 1.97 | -48.00 | 9.21 | 171.52 | -37.33 | 82.76 | 0.6056 | 1053.0 | 999999 | |
| 1.18 | 3.43 | 0.73 | 2.14 | 10.43 | 171.36 | -37.49 | 80.76 | 0.6086 | 856.5 | 736.0 | |
| 4.25 | -48.00 | 2.64 | -48.00 | 9.42 | 171.42 | -37.43 | 82.42 | 0.6071 | 987.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 10.72 | 171.16 | -37.68 | 80.30 | 0.6116 | 585.0 | 546.7 | |
| 2.35 | -48.00 | 1.47 | -48.00 | 9.78 | 171.25 | -37.59 | 81.84 | 0.6096 | 612.4 | 999999 | |
| 0.45 | 2.35 | 0.28 | 1.46 | 6.92 | 171.53 | -37.31 | 86.55 | 0.6051 | 819.4 | 693.5 | |
| 2.26 | -48.00 | 1.41 | -48.00 | 9.50 | 171.17 | -37.67 | 82.31 | 0.6105 | 856.0 | 999999 | |
| 22.51 | -48.00 | 14.08 | -48.00 | 9.03 | 171.00 | -37.85 | 83.09 | 0.6126 | 928.6 | 999999 | |
| 5.78 | -48.00 | 3.62 | -48.00 | 8.56 | 170.90 | -37.95 | 83.85 | 0.6139 | 820.5 | 999999 | |
| 0.00 | 3.25 | 0.00 | 2.03 | 6.80 | 171.08 | -37.77 | 86.74 | 0.6114 | 737.0 | 669.9 | |
| 5.24 | -48.00 | 3.29 | -48.00 | 9.28 | 170.65 | -38.19 | 82.70 | 0.6175 | 641.3 | 999999 | |
| 0.54 | 3.43 | 0.35 | 2.20 | 8.30 | 169.27 | -39.58 | 84.31 | 0.6359 | -739.5 | -595.4 | |
| 0.54 | 2.71 | 0.35 | 1.74 | 8.54 | 169.20 | -39.65 | 83.93 | 0.6368 | -673.3 | -601.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
