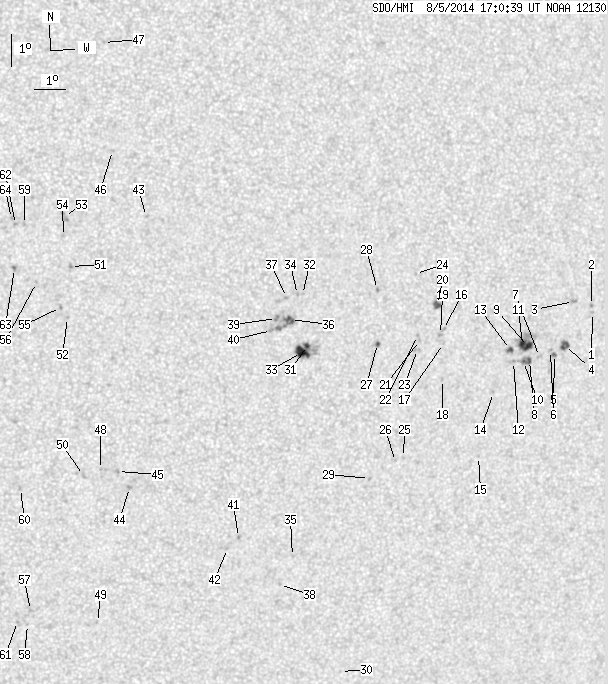

SDO HMI 2014-08-05 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.04 | 170.93 | 21.13 | 93.59 | -7.88 | 228.38 | 20.09 | 234.31 | 0.4186 | 257.2 | 217.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.78 | -6.94 | 236.36 | 28.07 | 245.49 | 0.5153 | 608.0 | 435.5 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -6.72 | 236.31 | 28.02 | 245.85 | 0.5133 | 752.0 | 623.6 | |
| 0.00 | 2.89 | 0.00 | 1.66 | -6.56 | 235.68 | 27.39 | 245.62 | 0.5037 | 899.0 | 772.2 | |
| 4.52 | 6.69 | 2.60 | 3.85 | -7.92 | 235.46 | 27.16 | 243.00 | 0.5095 | 833.0 | 655.2 | |
| 0.81 | 2.17 | 0.47 | 1.24 | -8.19 | 235.13 | 26.84 | 242.24 | 0.5070 | 758.0 | 662.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -8.05 | 234.98 | 26.69 | 242.34 | 0.5041 | 888.0 | 802.1 | |
| 0.00 | 2.35 | 0.00 | 1.34 | -8.22 | 234.62 | 26.32 | 241.71 | 0.5004 | 711.0 | 587.8 | |
| 1.72 | 7.86 | 0.98 | 4.48 | -8.33 | 234.28 | 25.99 | 241.20 | 0.4968 | 872.5 | 824.6 | |
| 5.15 | 23.59 | 2.93 | 13.40 | -7.89 | 234.22 | 25.92 | 241.93 | 0.4927 | 968.6 | 458.5 | |
| 0.63 | -8.00 | 0.36 | -8.00 | -8.35 | 234.08 | 25.79 | 240.97 | 0.4942 | 1043.0 | 999999 | |
| 4.43 | -9.00 | 2.51 | -9.00 | -7.82 | 234.01 | 25.72 | 241.87 | 0.4894 | 1158.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -8.34 | 233.74 | 25.44 | 240.67 | 0.4896 | 869.0 | 683.7 | |
| 2.08 | 3.89 | 1.18 | 2.20 | -7.96 | 233.61 | 25.32 | 241.23 | 0.4851 | 1071.0 | 807.2 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -9.28 | 233.12 | 24.83 | 238.37 | 0.4887 | 691.0 | 595.3 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -11.29 | 232.78 | 24.49 | 234.56 | 0.5009 | 618.0 | 500.5 | |
| 0.00 | 2.26 | 0.00 | 1.25 | -7.22 | 231.31 | 23.02 | 240.24 | 0.4487 | 885.0 | 724.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -7.66 | 231.33 | 23.04 | 239.42 | 0.4524 | 621.0 | 448.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -8.79 | 231.37 | 23.08 | 237.33 | 0.4620 | 799.0 | 605.4 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -7.38 | 231.22 | 22.93 | 239.84 | 0.4486 | 931.0 | 803.5 | |
| 2.98 | 4.97 | 1.64 | 2.74 | -6.44 | 231.07 | 22.78 | 241.54 | 0.4394 | -931.3 | -745.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -7.53 | 230.53 | 22.24 | 238.75 | 0.4406 | 815.0 | 650.9 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -7.38 | 230.45 | 22.16 | 238.98 | 0.4383 | 814.0 | 598.0 | |
| 0.00 | 2.71 | 0.00 | 1.50 | -7.81 | 230.48 | 22.19 | 238.15 | 0.4422 | 670.0 | 618.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -5.44 | 230.30 | 22.01 | 242.76 | 0.4214 | 547.0 | 448.3 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -11.21 | 230.24 | 21.95 | 231.68 | 0.4692 | 769.0 | 561.7 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -11.33 | 229.98 | 21.69 | 231.15 | 0.4672 | 721.0 | 634.1 | |
| 1.08 | 2.26 | 0.59 | 1.23 | -7.57 | 229.14 | 20.85 | 237.00 | 0.4225 | 996.8 | 856.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -5.89 | 229.07 | 20.78 | 240.39 | 0.4076 | 876.0 | 766.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -11.83 | 229.15 | 20.86 | 229.20 | 0.4623 | 714.0 | 629.4 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -18.10 | 228.81 | 20.51 | 219.55 | 0.5251 | -528.0 | -418.7 | |
| 1.99 | 25.04 | 1.07 | 13.48 | -7.55 | 226.86 | 18.57 | 233.90 | 0.3924 | 873.0 | 224.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.95 | 226.64 | 18.35 | 237.02 | 0.3748 | 678.0 | 557.8 | |
| 9.85 | -31.00 | 5.30 | -31.00 | -7.76 | 226.68 | 18.38 | 233.19 | 0.3920 | 936.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.94 | 226.48 | 18.18 | 236.80 | 0.3725 | 1005.0 | 855.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -14.25 | 226.80 | 18.51 | 221.96 | 0.4620 | -736.0 | -592.6 | |
| 2.80 | 14.28 | 1.50 | 7.63 | -6.72 | 226.28 | 17.99 | 234.80 | 0.3769 | 937.0 | 774.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.03 | 226.13 | 17.83 | 236.10 | 0.3685 | 915.0 | 749.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -15.15 | 226.44 | 18.15 | 220.11 | 0.4687 | -695.0 | -564.0 | |
| 0.00 | 2.98 | 0.00 | 1.59 | -6.67 | 225.83 | 17.53 | 234.20 | 0.3705 | 1035.0 | 923.3 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -7.04 | 225.68 | 17.39 | 233.16 | 0.3722 | 772.0 | 675.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -13.57 | 224.97 | 16.68 | 220.04 | 0.4355 | -976.0 | -838.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -13.92 | 224.64 | 16.34 | 218.95 | 0.4363 | -728.0 | -556.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -3.38 | 221.63 | 13.34 | 234.94 | 0.2826 | -937.0 | -742.5 | |
| 0.00 | 2.44 | 0.00 | 1.31 | -11.86 | 221.35 | 13.06 | 215.91 | 0.3787 | -886.0 | -753.8 | |
| 0.00 | 2.44 | 0.00 | 1.30 | -11.34 | 220.95 | 12.65 | 215.88 | 0.3680 | -851.0 | -705.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -1.33 | 220.55 | 12.26 | 239.20 | 0.2483 | -698.0 | -524.1 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 1.98 | 220.28 | 11.99 | 251.55 | 0.2198 | -630.0 | -488.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -11.26 | 220.40 | 12.11 | 214.82 | 0.3619 | -847.0 | -677.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -16.21 | 220.56 | 12.27 | 208.43 | 0.4305 | -757.0 | -613.7 | |
| 0.00 | 2.62 | 0.00 | 1.39 | -11.44 | 219.87 | 11.58 | 213.34 | 0.3595 | -782.0 | -667.9 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -4.87 | 219.28 | 10.99 | 225.28 | 0.2685 | -920.0 | -798.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -6.45 | 219.22 | 10.93 | 221.20 | 0.2872 | -718.0 | -611.4 | |
| 0.00 | 4.61 | 0.00 | 2.36 | -3.32 | 219.08 | 10.78 | 229.15 | 0.2481 | -605.0 | -865.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -3.94 | 219.05 | 10.76 | 227.25 | 0.2548 | -638.0 | -489.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -6.14 | 218.99 | 10.70 | 221.34 | 0.2807 | -871.0 | -765.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -5.34 | 218.23 | 9.94 | 221.17 | 0.2623 | -781.0 | -577.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -15.77 | 218.38 | 10.09 | 204.45 | 0.4089 | -911.0 | -578.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.23 | 218.30 | 10.01 | 203.83 | 0.4150 | -720.0 | -580.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -3.54 | 217.84 | 9.55 | 224.97 | 0.2353 | -834.0 | -586.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -11.81 | 217.90 | 9.60 | 208.10 | 0.3482 | -760.0 | -567.9 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -16.12 | 217.98 | 9.69 | 203.24 | 0.4114 | -624.0 | -485.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -3.54 | 217.56 | 9.27 | 224.13 | 0.2320 | -931.0 | -757.5 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -4.90 | 217.55 | 9.25 | 220.28 | 0.2490 | 1087.0 | 932.3 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -3.35 | 217.44 | 9.15 | 224.31 | 0.2282 | -934.0 | -787.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
