SDO HMI 2014-08-05 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.57 | 472.88 | 60.96 | 287.07 | 9.32 | 172.92 | -35.37 | 82.42 | 0.5781 | 230.6 | 224.3 | |
|
previous
or next observation for the same group /

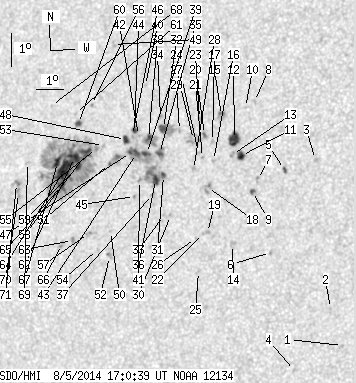

back to the solar disc SDO HMI 2014-08-05 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.70 | 4.27 | 181.41 | -26.88 | 92.56 | 0.4531 | -739.0 | -519.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 5.38 | 180.96 | -27.34 | 90.07 | 0.4591 | -785.0 | -614.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 9.88 | 180.12 | -28.17 | 80.41 | 0.4736 | -734.0 | -607.0 | |
| 0.00 | 2.08 | 0.00 | 1.17 | 3.43 | 179.79 | -28.50 | 94.01 | 0.4795 | -537.0 | -470.7 | |
| 0.99 | 2.89 | 0.56 | 1.64 | 9.52 | 179.06 | -29.23 | 81.35 | 0.4890 | 736.5 | 550.5 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 6.97 | 178.77 | -29.52 | 86.58 | 0.4919 | -780.0 | -639.9 | |
| 0.00 | 2.62 | 0.00 | 1.50 | 9.17 | 178.14 | -30.15 | 82.20 | 0.5025 | -553.0 | -630.7 | |
| 0.00 | 1.72 | 0.00 | 0.99 | 11.53 | 177.78 | -30.51 | 77.60 | 0.5114 | -711.0 | -548.5 | |
| 1.17 | 3.16 | 0.67 | 1.81 | 8.79 | 177.99 | -30.30 | 82.96 | 0.5044 | -862.2 | -681.2 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 11.33 | 177.48 | -30.81 | 78.06 | 0.5154 | -598.0 | -453.3 | |
| 4.16 | 6.06 | 2.40 | 3.49 | 9.87 | 177.50 | -30.79 | 80.91 | 0.5128 | -971.0 | -709.2 | |
| 9.67 | 12.83 | 5.59 | 7.42 | 10.34 | 177.19 | -31.10 | 80.04 | 0.5179 | -999.4 | -660.3 | |
| 0.00 | 2.80 | 0.00 | 1.62 | 9.88 | 177.17 | -31.12 | 80.93 | 0.5177 | -828.0 | -638.1 | |
| 0.00 | 4.52 | 0.00 | 2.60 | 7.15 | 177.41 | -30.88 | 86.24 | 0.5123 | -634.0 | -483.5 | |
| 0.00 | 5.42 | 0.00 | 3.16 | 11.05 | 176.64 | -31.65 | 78.80 | 0.5271 | -813.0 | -751.4 | |
| 0.00 | 1.72 | 0.00 | 1.00 | 9.66 | 176.51 | -31.79 | 81.45 | 0.5272 | -749.0 | -627.3 | |
| 0.00 | 1.72 | 0.00 | 1.00 | 10.24 | 176.41 | -31.88 | 80.37 | 0.5293 | -705.0 | -575.9 | |
| 0.00 | 5.33 | 0.00 | 3.11 | 8.83 | 176.37 | -31.92 | 83.04 | 0.5284 | -718.0 | -716.8 | |
| 0.00 | 2.17 | 0.00 | 1.26 | 7.46 | 176.49 | -31.80 | 85.64 | 0.5261 | -614.0 | -551.2 | |
| 0.54 | 2.35 | 0.32 | 1.38 | 10.43 | 176.09 | -32.20 | 80.05 | 0.5341 | -665.7 | -573.6 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 9.73 | 176.10 | -32.19 | 81.37 | 0.5332 | -749.0 | -547.9 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 7.42 | 176.31 | -31.98 | 85.71 | 0.5287 | -503.0 | -388.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 10.91 | 175.85 | -32.44 | 79.21 | 0.5383 | -522.0 | -383.1 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 9.88 | 175.94 | -32.36 | 81.12 | 0.5357 | -683.0 | -555.4 | |
| 0.00 | 1.90 | 0.00 | 1.11 | 6.26 | 176.25 | -32.04 | 87.92 | 0.5297 | -567.0 | -437.5 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 7.26 | 176.07 | -32.22 | 86.03 | 0.5322 | -604.0 | -492.0 | |
| 0.00 | 9.67 | 0.00 | 5.68 | 10.26 | 175.71 | -32.58 | 80.44 | 0.5394 | -243.0 | -189.2 | |
| 0.00 | 2.26 | 0.00 | 1.32 | 9.35 | 175.81 | -32.48 | 82.12 | 0.5370 | -429.0 | -437.8 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 10.50 | 175.17 | -33.13 | 80.07 | 0.5476 | -292.0 | -190.2 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 7.91 | 175.11 | -33.19 | 84.84 | 0.5465 | -593.0 | -521.3 | |
| 1.72 | 29.83 | 1.02 | 17.77 | 9.10 | 174.73 | -33.56 | 82.68 | 0.5525 | -775.1 | 86.7 | |
| 4.34 | 15.36 | 2.58 | 9.13 | 10.53 | 174.57 | -33.72 | 80.12 | 0.5562 | 993.3 | 608.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 7.89 | 174.85 | -33.44 | 84.88 | 0.5502 | -502.0 | -456.6 | |
| 0.00 | 2.08 | 0.00 | 1.24 | 10.89 | 174.41 | -33.88 | 79.50 | 0.5589 | 888.0 | 740.5 | |
| 2.44 | 38.59 | 1.45 | 23.11 | 9.76 | 174.51 | -33.78 | 81.50 | 0.5562 | 568.1 | 508.4 | |
| 4.97 | -31.00 | 2.96 | -31.00 | 8.97 | 174.45 | -33.84 | 82.95 | 0.5564 | -647.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 8.51 | 174.38 | -33.91 | 83.78 | 0.5571 | -615.0 | -417.5 | |
| 2.98 | 13.29 | 1.78 | 7.94 | 10.20 | 174.05 | -34.24 | 80.79 | 0.5632 | 1049.6 | 683.7 | |
| 2.80 | -35.00 | 1.68 | -35.00 | 9.74 | 174.03 | -34.26 | 81.61 | 0.5630 | 1022.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 11.80 | 173.72 | -34.57 | 78.01 | 0.5699 | 572.0 | 478.4 | |
| 0.00 | 1.99 | 0.00 | 1.19 | 8.90 | 173.86 | -34.43 | 83.11 | 0.5648 | -517.0 | -299.1 | |
| 0.00 | 1.90 | 0.00 | 1.14 | 10.27 | 173.66 | -34.63 | 80.71 | 0.5687 | 841.0 | 785.0 | |
| 3.43 | -35.00 | 2.06 | -35.00 | 9.72 | 173.66 | -34.64 | 81.69 | 0.5683 | 870.3 | 999999 | |
| 1.99 | 3.62 | 1.20 | 2.18 | 10.41 | 173.50 | -34.80 | 80.48 | 0.5712 | 980.2 | 757.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 8.41 | 173.72 | -34.57 | 84.00 | 0.5665 | 672.0 | 599.4 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 10.25 | 173.44 | -34.85 | 80.77 | 0.5719 | 796.0 | 740.4 | |
| 2.35 | -35.00 | 1.42 | -35.00 | 9.73 | 173.43 | -34.86 | 81.68 | 0.5716 | 842.7 | 999999 | |
| 3.34 | 4.79 | 2.02 | 2.90 | 10.12 | 173.19 | -35.10 | 81.03 | 0.5752 | 846.5 | 662.3 | |
| 0.00 | 2.62 | 0.00 | 1.61 | 12.98 | 172.32 | -35.97 | 76.28 | 0.5914 | 567.0 | 558.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 7.29 | 172.93 | -35.36 | 85.97 | 0.5777 | 354.0 | 365.2 | |
| 0.45 | 10.76 | 0.27 | 6.52 | 9.35 | 172.68 | -35.61 | 82.41 | 0.5818 | 783.4 | 711.0 | |
| 0.00 | 2.89 | 0.00 | 1.75 | 6.53 | 172.96 | -35.34 | 87.29 | 0.5774 | -231.0 | -234.0 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 9.88 | 172.39 | -35.91 | 81.52 | 0.5863 | 786.0 | 675.2 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 6.72 | 172.49 | -35.80 | 86.95 | 0.5840 | 656.0 | 479.2 | |
| 0.00 | 2.71 | 0.00 | 1.66 | 9.78 | 172.13 | -36.16 | 81.73 | 0.5898 | 883.0 | 775.3 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 11.10 | 171.76 | -36.53 | 79.53 | 0.5962 | 618.0 | 579.3 | |
| 0.00 | 2.35 | 0.00 | 1.44 | 7.18 | 172.11 | -36.19 | 86.15 | 0.5893 | 657.0 | 549.7 | |
| 6.96 | 223.42 | 4.28 | 138.66 | 9.60 | 171.77 | -36.52 | 82.05 | 0.5947 | 993.4 | 371.9 | |
| 3.52 | -58.00 | 2.17 | -58.00 | 9.19 | 171.51 | -36.78 | 82.77 | 0.5980 | 1057.3 | 999999 | |
| 1.99 | 3.52 | 1.23 | 2.18 | 10.49 | 171.34 | -36.95 | 80.60 | 0.6013 | 851.5 | 685.9 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 10.79 | 171.19 | -37.11 | 80.13 | 0.6038 | 610.0 | 456.3 | |
| 9.31 | -58.00 | 5.76 | -58.00 | 9.45 | 171.32 | -36.97 | 82.34 | 0.6007 | 966.6 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.50 | 6.93 | 171.52 | -36.78 | 86.56 | 0.5976 | 817.0 | 706.3 | |
| 21.33 | -58.00 | 13.24 | -58.00 | 9.06 | 170.98 | -37.31 | 83.01 | 0.6052 | 959.7 | 999999 | |
| 4.97 | -58.00 | 3.09 | -58.00 | 8.57 | 170.93 | -37.37 | 83.82 | 0.6058 | 844.8 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.68 | 6.78 | 171.11 | -37.18 | 86.79 | 0.6033 | 741.0 | 672.7 | |
| 5.15 | -58.00 | 3.21 | -58.00 | 9.26 | 170.69 | -37.60 | 82.70 | 0.6094 | 673.9 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 10.98 | 170.22 | -38.07 | 79.94 | 0.6171 | 521.0 | 403.2 | |
| 0.00 | 1.63 | 0.00 | 1.03 | 9.19 | 169.52 | -38.77 | 82.88 | 0.6252 | 590.0 | 459.4 | |
| 0.00 | 3.89 | 0.00 | 2.47 | 8.22 | 169.28 | -39.01 | 84.43 | 0.6282 | -633.0 | -638.7 | |
| 0.00 | 4.88 | 0.00 | 3.11 | 8.52 | 169.17 | -39.13 | 83.96 | 0.6298 | -614.0 | -567.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
