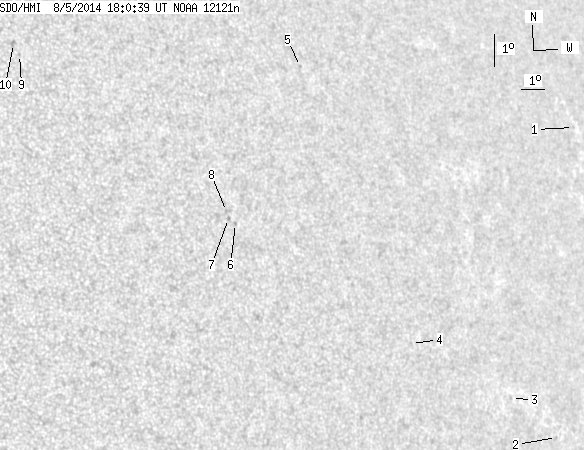

SDO HMI 2014-08-05 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.09 | 0.00 | 8.22 | 16.69 | 249.53 | 41.79 | 289.20 | 0.6759 | 504.3 | 477.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.25 | 17.79 | 265.01 | 57.27 | 287.29 | 0.8410 | -347.0 | -271.0 | |
| 0.00 | 0.99 | 0.00 | 0.81 | 8.52 | 260.90 | 53.17 | 276.09 | 0.7983 | 453.0 | 372.2 | |
| 0.00 | 0.99 | 0.00 | 0.78 | 9.89 | 258.92 | 51.18 | 277.81 | 0.7770 | 519.0 | 368.8 | |
| 0.00 | 0.81 | 0.00 | 0.59 | 11.92 | 254.63 | 46.89 | 280.66 | 0.7291 | 642.0 | 558.0 | |
| 0.00 | 0.99 | 0.00 | 0.70 | 20.76 | 252.24 | 44.50 | 293.26 | 0.7157 | 584.0 | 444.7 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 16.12 | 247.98 | 40.25 | 287.72 | 0.6539 | 630.0 | 571.5 | |
| 0.00 | 1.72 | 0.00 | 1.12 | 16.29 | 247.74 | 40.00 | 288.04 | 0.6511 | 673.0 | 535.1 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 16.51 | 247.71 | 39.97 | 288.38 | 0.6513 | 514.0 | 446.5 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 21.88 | 240.78 | 33.04 | 299.66 | 0.5844 | 634.0 | 427.9 | |
| 0.00 | 2.80 | 0.00 | 1.71 | 22.24 | 240.64 | 32.90 | 300.31 | 0.5846 | 741.0 | 625.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
