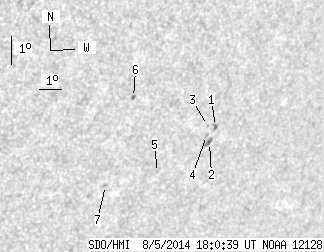

SDO HMI 2014-08-05 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.08 | 13.38 | 0.81 | 10.14 | -20.77 | 249.67 | 41.93 | 235.66 | 0.7586 | 469.7 | 447.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.71 | 0.00 | 2.09 | -20.48 | 250.78 | 43.04 | 236.66 | 0.7675 | 675.0 | 537.8 | |
| 0.54 | 4.61 | 0.42 | 3.56 | -21.02 | 250.70 | 42.96 | 236.00 | 0.7696 | 687.8 | 461.9 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -20.42 | 250.40 | 42.66 | 236.52 | 0.7637 | 564.0 | 610.8 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -20.76 | 250.48 | 42.74 | 236.17 | 0.7662 | 475.0 | 456.6 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -21.88 | 248.71 | 40.98 | 233.83 | 0.7561 | -529.0 | -452.0 | |
| 0.54 | 1.81 | 0.39 | 1.29 | -19.22 | 246.85 | 39.11 | 235.79 | 0.7226 | 576.0 | 391.9 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -22.17 | 246.58 | 38.84 | 232.12 | 0.7381 | 706.0 | 524.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
