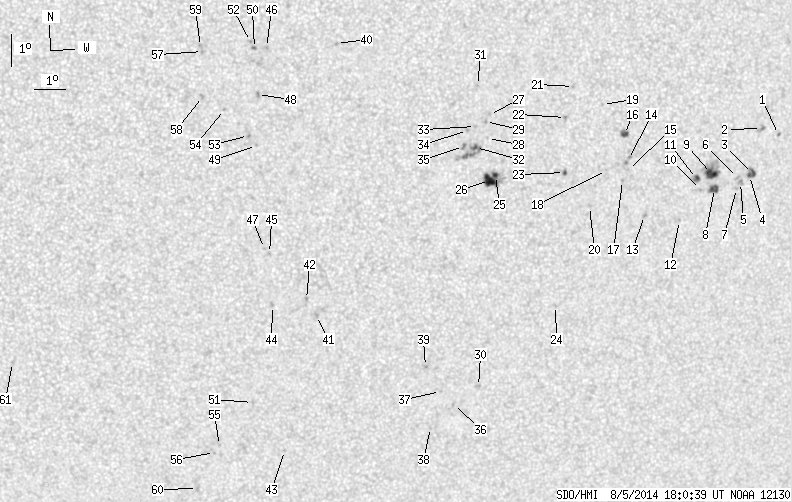

SDO HMI 2014-08-05 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.96 | 171.45 | 20.09 | 94.32 | -8.04 | 228.41 | 20.68 | 234.75 | 0.4289 | 205.8 | 226.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.79 | -6.74 | 236.35 | 28.61 | 246.25 | 0.5216 | 564.0 | 506.5 | |
| 0.00 | 4.52 | 0.00 | 2.60 | -6.53 | 235.74 | 28.01 | 246.17 | 0.5120 | 732.0 | 694.0 | |
| 2.71 | 7.14 | 1.57 | 4.13 | -7.92 | 235.52 | 27.79 | 243.53 | 0.5178 | 778.3 | 666.0 | |
| 1.17 | -3.00 | 0.68 | -3.00 | -7.98 | 235.42 | 27.68 | 243.34 | 0.5169 | 901.2 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.56 | -8.18 | 235.13 | 27.39 | 242.73 | 0.5143 | 753.0 | 672.0 | |
| 0.00 | 2.17 | 0.00 | 1.25 | -8.02 | 235.01 | 27.27 | 242.92 | 0.5116 | 922.0 | 751.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -8.36 | 235.00 | 27.26 | 242.31 | 0.5139 | 742.0 | 603.2 | |
| 4.61 | 7.59 | 2.64 | 4.35 | -8.32 | 234.24 | 26.50 | 241.69 | 0.5035 | 915.8 | 710.1 | |
| 8.13 | 23.23 | 4.64 | 13.25 | -7.85 | 234.10 | 26.36 | 242.41 | 0.4983 | 1078.4 | 545.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -8.33 | 233.76 | 26.02 | 241.23 | 0.4972 | 835.0 | 671.5 | |
| 2.35 | 5.78 | 1.34 | 3.29 | -7.98 | 233.60 | 25.86 | 241.71 | 0.4925 | 1006.6 | 710.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -9.27 | 233.11 | 25.37 | 238.93 | 0.4957 | 740.0 | 564.0 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -9.06 | 231.91 | 24.17 | 238.05 | 0.4784 | 785.0 | 579.2 | |
| 0.00 | 3.61 | 0.00 | 2.01 | -7.28 | 231.26 | 23.52 | 240.67 | 0.4559 | 713.0 | 731.3 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -7.59 | 231.27 | 23.54 | 240.09 | 0.4585 | 760.0 | 683.3 | |
| 2.80 | 5.78 | 1.55 | 3.20 | -6.49 | 231.08 | 23.35 | 242.03 | 0.4476 | -897.8 | -741.5 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -7.92 | 231.09 | 23.36 | 239.26 | 0.4587 | 723.0 | 485.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -7.59 | 230.54 | 22.80 | 239.29 | 0.4487 | 808.0 | 664.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -5.52 | 230.31 | 22.57 | 243.18 | 0.4299 | 682.0 | 492.7 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -8.69 | 230.04 | 22.30 | 236.61 | 0.4511 | 715.0 | 542.6 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -4.92 | 229.33 | 21.59 | 243.40 | 0.4118 | -744.0 | -548.3 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -5.88 | 229.10 | 21.37 | 241.10 | 0.4157 | 947.0 | 765.5 | |
| 0.90 | 1.90 | 0.50 | 1.04 | -7.59 | 229.15 | 21.41 | 237.65 | 0.4301 | 993.0 | 870.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -11.79 | 229.13 | 21.39 | 229.98 | 0.4681 | 765.0 | 616.4 | |
| 2.17 | 21.78 | 1.17 | 11.77 | -7.60 | 226.89 | 19.15 | 234.64 | 0.4004 | 826.1 | 291.0 | |
| 9.76 | -25.00 | 5.27 | -25.00 | -7.75 | 226.70 | 18.97 | 234.07 | 0.3994 | 940.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -5.69 | 226.62 | 18.88 | 238.37 | 0.3799 | 804.0 | 657.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -6.43 | 226.58 | 18.85 | 236.67 | 0.3858 | 652.0 | 536.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -5.90 | 226.50 | 18.76 | 237.72 | 0.3800 | 927.0 | 808.5 | |
| 0.00 | 2.71 | 0.00 | 1.52 | -14.30 | 226.78 | 19.04 | 222.69 | 0.4682 | -557.0 | -611.1 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -4.77 | 226.21 | 18.47 | 239.91 | 0.3665 | 813.0 | 679.6 | |
| 1.36 | 16.54 | 0.73 | 8.86 | -6.70 | 226.21 | 18.47 | 235.54 | 0.3832 | 1104.7 | 744.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -6.04 | 226.18 | 18.44 | 236.95 | 0.3770 | 862.0 | 711.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -6.16 | 225.93 | 18.19 | 236.32 | 0.3746 | 935.0 | 725.4 | |
| 0.00 | 2.89 | 0.00 | 1.55 | -6.65 | 225.82 | 18.08 | 235.06 | 0.3776 | 1118.0 | 926.6 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -14.86 | 226.00 | 18.26 | 220.68 | 0.4664 | -813.0 | -628.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -14.42 | 225.53 | 17.79 | 220.59 | 0.4567 | -776.0 | -618.8 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -15.58 | 225.30 | 17.56 | 218.57 | 0.4680 | -473.0 | -456.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -13.59 | 224.97 | 17.23 | 220.93 | 0.4414 | -725.0 | -657.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -3.33 | 221.70 | 13.96 | 236.31 | 0.2908 | -913.0 | -689.7 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -11.84 | 221.34 | 13.60 | 217.05 | 0.3836 | -1019.0 | -752.9 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -11.32 | 220.99 | 13.26 | 217.18 | 0.3736 | -879.0 | -751.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -16.19 | 220.56 | 12.82 | 209.51 | 0.4345 | -796.0 | -605.1 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -11.48 | 219.92 | 12.18 | 214.62 | 0.3656 | -825.0 | -666.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -9.83 | 219.76 | 12.02 | 217.04 | 0.3422 | -823.0 | -610.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -3.40 | 219.52 | 11.78 | 231.40 | 0.2619 | -844.0 | -628.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -9.67 | 219.60 | 11.86 | 216.95 | 0.3384 | -773.0 | -542.8 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -4.85 | 219.25 | 11.52 | 226.69 | 0.2746 | -944.0 | -839.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -6.43 | 219.25 | 11.52 | 222.75 | 0.2936 | -735.0 | -606.7 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -3.42 | 219.14 | 11.40 | 230.42 | 0.2572 | -1173.0 | -968.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.59 | 219.43 | 11.69 | 209.19 | 0.4038 | -908.0 | -633.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -3.21 | 219.02 | 11.28 | 230.77 | 0.2532 | -1117.0 | -883.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.11 | 219.00 | 11.26 | 222.85 | 0.2868 | -892.0 | -831.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -5.29 | 218.24 | 10.50 | 222.86 | 0.2679 | -823.0 | -628.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -15.98 | 218.44 | 10.71 | 205.54 | 0.4160 | -660.0 | -559.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -16.20 | 218.30 | 10.56 | 204.99 | 0.4183 | -565.0 | -533.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -3.48 | 217.53 | 9.79 | 225.87 | 0.2376 | -934.0 | -754.8 | |
| 0.00 | 2.53 | 0.00 | 1.30 | -4.87 | 217.55 | 9.81 | 221.99 | 0.2549 | 1087.0 | 748.5 | |
| 0.00 | 2.08 | 0.00 | 1.06 | -3.33 | 217.47 | 9.73 | 226.15 | 0.2350 | -861.0 | -732.6 | |
| 0.00 | 2.89 | 0.00 | 1.59 | -17.38 | 217.81 | 10.07 | 202.82 | 0.4321 | -675.0 | -502.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.17 | 211.79 | 4.05 | 191.79 | 0.3382 | -728.0 | -468.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
