SDO HMI 2014-08-05 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 7.22 | 0.30 | 4.09 | 18.59 | 181.38 | -26.36 | 61.77 | 0.4802 | -61.2 | -33.5 | |
|
previous
or next observation for the same group /

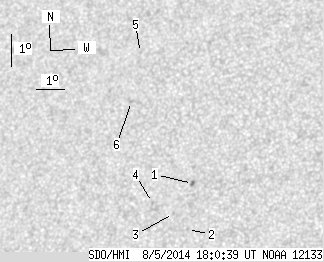

back to the solar disc SDO HMI 2014-08-05 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 2.17 | 0.30 | 1.21 | 17.93 | 182.48 | -25.26 | 62.11 | 0.4612 | -1033.7 | -801.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 16.50 | 182.51 | -25.23 | 65.02 | 0.4527 | -683.0 | -581.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 16.97 | 181.95 | -25.79 | 64.45 | 0.4631 | -676.0 | -492.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 17.28 | 181.16 | -26.58 | 64.39 | 0.4757 | 699.0 | 579.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 21.93 | 179.87 | -27.86 | 56.73 | 0.5206 | 768.0 | 520.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 20.38 | 179.86 | -27.88 | 59.48 | 0.5109 | 850.0 | 695.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
