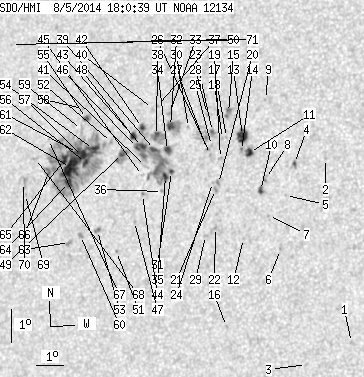

SDO HMI 2014-08-05 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.14 | 474.05 | 59.12 | 286.07 | 9.39 | 172.84 | -34.90 | 82.25 | 0.5715 | 227.5 | 251.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.60 | 4.27 | 181.41 | -26.33 | 92.69 | 0.4447 | -816.0 | -605.8 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 9.82 | 180.17 | -27.57 | 80.43 | 0.4644 | -799.0 | -599.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 3.53 | 179.89 | -27.85 | 93.97 | 0.4693 | -751.0 | -528.6 | |
| 0.81 | 2.80 | 0.46 | 1.58 | 9.61 | 179.10 | -28.64 | 81.07 | 0.4802 | 841.6 | 606.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 8.62 | 178.87 | -28.87 | 83.15 | 0.4827 | 646.0 | 413.0 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 6.98 | 178.82 | -28.92 | 86.58 | 0.4828 | -794.0 | -659.8 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 7.99 | 178.32 | -29.41 | 84.51 | 0.4906 | -628.0 | -505.1 | |
| 0.00 | 3.25 | 0.00 | 1.85 | 9.11 | 178.12 | -29.61 | 82.26 | 0.4944 | -845.0 | -684.5 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 11.51 | 177.88 | -29.86 | 77.49 | 0.5017 | -596.0 | -544.7 | |
| 1.81 | 3.34 | 1.03 | 1.91 | 8.73 | 177.98 | -29.76 | 83.03 | 0.4962 | -893.8 | -757.2 | |
| 4.07 | 6.33 | 2.33 | 3.63 | 9.87 | 177.48 | -30.26 | 80.83 | 0.5048 | -1025.8 | -732.7 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 7.24 | 177.49 | -30.24 | 86.05 | 0.5028 | -622.0 | -413.2 | |
| 9.94 | 13.38 | 5.72 | 7.69 | 10.37 | 177.18 | -30.56 | 79.89 | 0.5100 | -1008.4 | -634.0 | |
| 0.00 | 1.90 | 0.00 | 1.09 | 9.91 | 177.19 | -30.55 | 80.79 | 0.5092 | -875.0 | -706.0 | |
| 0.00 | 5.69 | 0.00 | 3.30 | 11.04 | 176.60 | -31.14 | 78.70 | 0.5196 | -848.0 | -727.1 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 4.54 | 177.05 | -30.69 | 91.37 | 0.5109 | -771.0 | -542.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 10.28 | 176.61 | -31.13 | 80.17 | 0.5182 | -717.0 | -563.7 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 10.24 | 176.47 | -31.27 | 80.27 | 0.5203 | -698.0 | -612.2 | |
| 0.00 | 1.99 | 0.00 | 1.15 | 9.63 | 176.46 | -31.27 | 81.45 | 0.5196 | -737.0 | -606.1 | |
| 0.00 | 2.26 | 0.00 | 1.31 | 8.87 | 176.47 | -31.27 | 82.92 | 0.5189 | -913.0 | -757.2 | |
| 0.00 | 2.08 | 0.00 | 1.20 | 8.68 | 176.37 | -31.36 | 83.29 | 0.5201 | -844.0 | -634.8 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 7.53 | 176.47 | -31.26 | 85.51 | 0.5181 | -665.0 | -582.5 | |
| 0.72 | 13.47 | 0.42 | 7.85 | 10.44 | 176.09 | -31.65 | 79.96 | 0.5261 | -696.2 | -312.7 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 8.89 | 176.25 | -31.49 | 82.90 | 0.5221 | -619.0 | -539.7 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 10.01 | 176.10 | -31.64 | 80.78 | 0.5254 | -830.0 | -612.4 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 9.73 | 176.09 | -31.65 | 81.30 | 0.5252 | -709.0 | -571.9 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 9.88 | 175.97 | -31.77 | 81.04 | 0.5272 | -741.0 | -577.1 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 10.94 | 175.85 | -31.89 | 79.05 | 0.5304 | -504.0 | -415.2 | |
| 0.00 | 1.81 | 0.00 | 1.05 | 7.26 | 176.13 | -31.60 | 86.02 | 0.5231 | -720.0 | -541.6 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 10.51 | 175.20 | -32.54 | 79.98 | 0.5391 | -106.0 | -134.8 | |
| 1.08 | 69.04 | 0.64 | 41.02 | 9.14 | 174.73 | -33.01 | 82.57 | 0.5445 | -749.0 | 229.4 | |
| 4.07 | 15.82 | 2.41 | 9.34 | 10.50 | 174.54 | -33.20 | 80.09 | 0.5486 | 1019.6 | 607.8 | |
| 0.00 | 2.26 | 0.00 | 1.34 | 10.90 | 174.45 | -33.29 | 79.39 | 0.5504 | 833.0 | 637.0 | |
| 3.16 | 5.51 | 1.87 | 3.26 | 9.77 | 174.51 | -33.23 | 81.44 | 0.5482 | 490.5 | 363.8 | |
| 2.80 | -31.00 | 1.66 | -31.00 | 8.97 | 174.52 | -33.21 | 82.89 | 0.5474 | -737.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 8.51 | 174.46 | -33.28 | 83.74 | 0.5480 | -773.0 | -586.1 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 11.11 | 173.98 | -33.76 | 79.08 | 0.5575 | 710.0 | 625.3 | |
| 2.80 | 14.37 | 1.67 | 8.54 | 10.20 | 174.05 | -33.68 | 80.71 | 0.5552 | 1140.1 | 653.2 | |
| 2.80 | -31.00 | 1.67 | -31.00 | 9.77 | 174.03 | -33.71 | 81.49 | 0.5551 | 1051.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 11.01 | 173.80 | -33.93 | 79.30 | 0.5598 | 694.0 | 550.4 | |
| 0.00 | 2.26 | 0.00 | 1.35 | 9.24 | 173.75 | -33.98 | 82.48 | 0.5586 | 304.0 | 230.8 | |
| 2.17 | 7.95 | 1.30 | 4.76 | 10.41 | 173.51 | -34.23 | 80.41 | 0.5633 | 1026.2 | 824.4 | |
| 3.61 | -31.00 | 2.16 | -31.00 | 9.84 | 173.58 | -34.16 | 81.43 | 0.5617 | 1033.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 8.38 | 173.73 | -34.01 | 84.02 | 0.5585 | 707.0 | 709.5 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 8.96 | 173.67 | -34.06 | 82.99 | 0.5596 | 282.0 | 226.2 | |
| 2.17 | -31.00 | 1.30 | -31.00 | 9.80 | 173.39 | -34.34 | 81.52 | 0.5642 | 830.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 7.54 | 173.51 | -34.23 | 85.53 | 0.5614 | 698.0 | 481.5 | |
| 2.89 | 4.61 | 1.74 | 2.77 | 10.12 | 173.20 | -34.53 | 80.97 | 0.5672 | 874.5 | 682.7 | |
| 3.07 | 12.11 | 1.85 | 7.30 | 9.58 | 172.85 | -34.88 | 81.95 | 0.5717 | 959.4 | 682.9 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 12.99 | 172.38 | -35.36 | 76.14 | 0.5830 | 818.0 | 632.3 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 6.59 | 172.92 | -34.82 | 87.20 | 0.5700 | -558.0 | -447.9 | |
| 0.00 | 1.90 | 0.00 | 1.15 | 9.89 | 172.40 | -35.34 | 81.46 | 0.5783 | 776.0 | 675.6 | |
| 0.00 | 3.07 | 0.00 | 1.87 | 7.19 | 172.16 | -35.58 | 86.15 | 0.5807 | 748.0 | 651.7 | |
| 6.96 | 220.42 | 4.25 | 135.81 | 9.64 | 171.75 | -35.99 | 81.96 | 0.5873 | 978.1 | 405.5 | |
| 1.90 | 4.52 | 1.17 | 2.78 | 10.56 | 171.36 | -36.38 | 80.43 | 0.5935 | 896.2 | 666.7 | |
| 2.80 | -54.00 | 1.72 | -54.00 | 9.22 | 171.49 | -36.25 | 82.68 | 0.5906 | 1102.1 | 999999 | |
| 6.42 | -54.00 | 3.94 | -54.00 | 9.40 | 171.36 | -36.38 | 82.39 | 0.5926 | 1020.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 10.86 | 171.17 | -36.57 | 79.96 | 0.5965 | 562.0 | 436.2 | |
| 0.00 | 2.26 | 0.00 | 1.39 | 10.22 | 171.21 | -36.52 | 81.03 | 0.5952 | 363.0 | 233.8 | |
| 0.00 | 2.89 | 0.00 | 1.77 | 7.00 | 171.53 | -36.21 | 86.46 | 0.5896 | 814.0 | 691.2 | |
| 1.72 | -54.00 | 1.06 | -54.00 | 9.51 | 171.15 | -36.59 | 82.22 | 0.5955 | 892.4 | 999999 | |
| 18.62 | -54.00 | 11.48 | -54.00 | 9.04 | 170.94 | -36.80 | 83.03 | 0.5982 | 964.4 | 999999 | |
| 0.00 | 3.52 | 0.00 | 2.17 | 6.76 | 171.13 | -36.61 | 86.86 | 0.5953 | 898.0 | 683.2 | |
| 5.78 | -54.00 | 3.57 | -54.00 | 8.58 | 170.91 | -36.82 | 83.80 | 0.5983 | 846.7 | 999999 | |
| 4.25 | -54.00 | 2.63 | -54.00 | 9.27 | 170.68 | -37.06 | 82.66 | 0.6019 | 714.1 | 999999 | |
| 1.72 | -54.00 | 1.07 | -54.00 | 8.83 | 170.11 | -37.63 | 83.41 | 0.6095 | 535.9 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 9.83 | 169.98 | -37.75 | 81.77 | 0.6118 | 392.0 | 323.5 | |
| 0.00 | 2.62 | 0.00 | 1.65 | 9.22 | 169.55 | -38.18 | 82.80 | 0.6173 | 586.0 | 400.1 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 8.11 | 169.29 | -38.44 | 84.61 | 0.6205 | -816.0 | -643.9 | |
| 0.00 | 7.50 | 0.00 | 4.74 | 8.47 | 169.17 | -38.56 | 84.04 | 0.6222 | -771.0 | -594.9 | |
| 0.00 | 0.72 | 0.00 | 0.47 | 12.62 | 168.07 | -39.67 | 77.54 | 0.6402 | 559.0 | 402.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
