SDO HMI 2014-08-05 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.34 | 156.85 | 20.40 | 86.79 | -8.21 | 228.64 | 21.46 | 235.47 | 0.4411 | 248.6 | 294.8 | |
|
previous
or next observation for the same group /

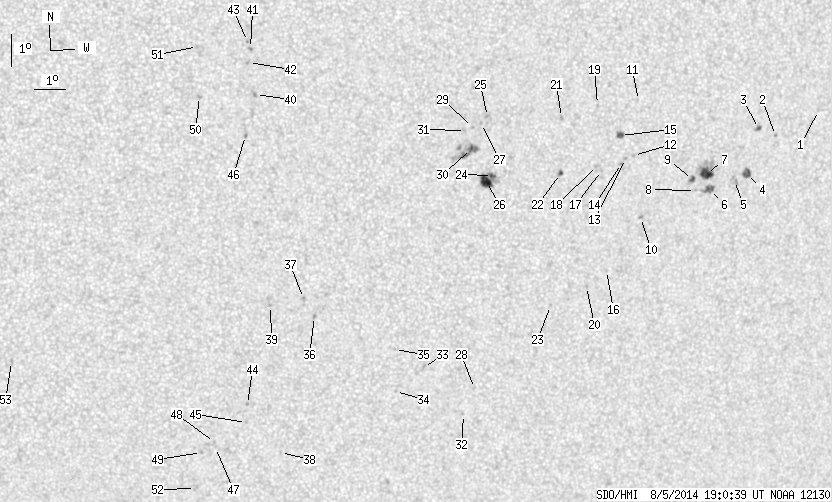

back to the solar disc SDO HMI 2014-08-05 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.69 | -6.08 | 237.91 | 30.72 | 248.90 | 0.5466 | 600.0 | 445.7 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -6.77 | 236.43 | 29.25 | 246.67 | 0.5304 | 653.0 | 484.7 | |
| 1.08 | 3.34 | 0.63 | 1.94 | -6.52 | 235.82 | 28.63 | 246.65 | 0.5206 | 776.8 | 673.2 | |
| 4.16 | 6.87 | 2.42 | 3.99 | -7.91 | 235.49 | 28.31 | 243.97 | 0.5248 | 847.4 | 616.4 | |
| 0.00 | 5.51 | 0.00 | 3.19 | -8.11 | 235.09 | 27.91 | 243.29 | 0.5207 | 692.0 | 649.5 | |
| 3.80 | 7.86 | 2.18 | 4.52 | -8.35 | 234.24 | 27.06 | 242.14 | 0.5111 | 919.3 | 714.2 | |
| 9.13 | 22.77 | 5.23 | 13.05 | -7.84 | 234.10 | 26.92 | 242.91 | 0.5057 | 1073.0 | 500.9 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -8.35 | 233.76 | 26.57 | 241.70 | 0.5047 | 789.0 | 648.7 | |
| 1.81 | 3.52 | 1.03 | 2.01 | -8.00 | 233.63 | 26.45 | 242.20 | 0.5006 | 1011.8 | 834.4 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -9.11 | 231.93 | 24.75 | 238.57 | 0.4864 | 739.0 | 595.4 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -5.45 | 231.66 | 24.47 | 245.20 | 0.4561 | 669.0 | 507.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -7.15 | 231.57 | 24.39 | 241.79 | 0.4668 | 569.0 | 433.5 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -7.24 | 231.31 | 24.12 | 241.37 | 0.4638 | 900.0 | 766.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -7.39 | 231.18 | 24.00 | 240.96 | 0.4632 | 956.0 | 807.3 | |
| 2.44 | 4.34 | 1.36 | 2.41 | -6.51 | 231.10 | 23.92 | 242.56 | 0.4557 | -854.5 | -702.8 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -10.74 | 230.91 | 23.73 | 234.62 | 0.4868 | 662.0 | 506.7 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -7.57 | 230.52 | 23.34 | 239.90 | 0.4558 | 809.0 | 691.2 | |
| 0.00 | 2.44 | 0.00 | 1.35 | -7.41 | 230.38 | 23.20 | 240.05 | 0.4526 | 697.0 | 552.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -5.51 | 230.29 | 23.10 | 243.75 | 0.4373 | 440.0 | 399.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -11.22 | 230.27 | 23.09 | 233.06 | 0.4832 | 751.0 | 580.3 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -5.86 | 229.11 | 21.93 | 241.76 | 0.4234 | 914.0 | 739.6 | |
| 1.17 | 2.35 | 0.65 | 1.29 | -7.61 | 229.16 | 21.98 | 238.28 | 0.4378 | 943.4 | 769.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -11.77 | 229.11 | 21.93 | 230.69 | 0.4744 | 784.0 | 656.4 | |
| 1.81 | 19.70 | 0.98 | 10.68 | -7.58 | 226.92 | 19.74 | 235.49 | 0.4080 | 901.0 | 488.9 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -5.74 | 226.69 | 19.50 | 239.09 | 0.3888 | 824.0 | 703.5 | |
| 9.49 | -24.00 | 5.14 | -24.00 | -7.76 | 226.74 | 19.55 | 234.86 | 0.4072 | 1014.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.95 | 226.50 | 19.32 | 238.37 | 0.3880 | 914.0 | 794.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -14.35 | 226.80 | 19.61 | 223.45 | 0.4748 | -721.0 | -570.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -6.06 | 226.21 | 19.03 | 237.73 | 0.3851 | 937.0 | 784.9 | |
| 1.45 | 24.04 | 0.78 | 12.92 | -6.71 | 226.20 | 19.02 | 236.30 | 0.3907 | 1007.2 | 763.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -6.14 | 225.99 | 18.81 | 237.23 | 0.3828 | 856.0 | 550.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -15.18 | 226.51 | 19.32 | 221.81 | 0.4810 | -596.0 | -488.8 | |
| 0.00 | 2.44 | 0.00 | 1.35 | -13.61 | 225.04 | 17.86 | 221.91 | 0.4481 | -932.0 | -659.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -14.35 | 224.18 | 17.00 | 219.40 | 0.4481 | -749.0 | -499.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -12.99 | 224.05 | 16.87 | 221.24 | 0.4307 | -760.0 | -621.2 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -11.85 | 221.39 | 14.21 | 218.24 | 0.3899 | -952.0 | -808.4 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -11.27 | 221.01 | 13.83 | 218.44 | 0.3787 | -877.0 | -650.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -16.23 | 220.56 | 13.38 | 210.50 | 0.4395 | -752.0 | -572.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -11.46 | 219.97 | 12.79 | 215.96 | 0.3710 | -709.0 | -619.7 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -4.83 | 219.30 | 12.11 | 228.18 | 0.2818 | -1026.0 | -826.2 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -3.40 | 219.12 | 11.94 | 231.77 | 0.2640 | -1115.0 | -833.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -3.83 | 219.06 | 11.88 | 230.37 | 0.2678 | -839.0 | -679.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -3.18 | 219.02 | 11.84 | 232.20 | 0.2604 | -1004.0 | -846.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -14.63 | 219.40 | 12.21 | 210.21 | 0.4085 | -914.0 | -726.3 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -15.22 | 219.40 | 12.21 | 209.48 | 0.4166 | -725.0 | -611.1 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -6.09 | 219.01 | 11.82 | 224.30 | 0.2930 | -962.0 | -797.3 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -16.02 | 218.44 | 11.26 | 206.62 | 0.4205 | -539.0 | -454.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -15.85 | 218.40 | 11.22 | 206.72 | 0.4179 | -930.0 | -705.9 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -16.17 | 218.00 | 10.82 | 205.55 | 0.4196 | -648.0 | -510.3 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -4.85 | 217.55 | 10.37 | 223.64 | 0.2610 | 1007.0 | 777.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -3.30 | 217.47 | 10.29 | 227.83 | 0.2417 | -844.0 | -659.3 | |
| 0.00 | 2.17 | 0.00 | 1.19 | -17.35 | 217.87 | 10.69 | 204.08 | 0.4357 | -489.0 | -569.8 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -13.11 | 211.86 | 4.68 | 193.60 | 0.3395 | -847.0 | -647.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
