SDO HMI 2014-08-05 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.68 | 0.00 | 4.89 | 19.57 | 181.09 | -25.54 | 59.30 | 0.4749 | -26.0 | 47.1 | |
|
previous
or next observation for the same group /

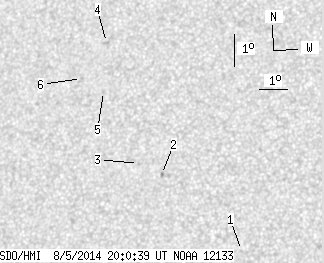

back to the solar disc SDO HMI 2014-08-05 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.63 | 15.68 | 185.44 | -21.19 | 63.53 | 0.3905 | -705.0 | -508.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 17.92 | 182.40 | -24.23 | 61.31 | 0.4470 | -1072.0 | -860.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 18.22 | 181.54 | -25.09 | 61.40 | 0.4606 | -693.0 | -617.4 | |
| 0.00 | 2.44 | 0.00 | 1.40 | 21.95 | 179.73 | -26.90 | 55.93 | 0.5086 | 754.0 | 624.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 20.41 | 179.92 | -26.71 | 58.53 | 0.4959 | 804.0 | 635.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 20.78 | 179.04 | -27.59 | 58.55 | 0.5095 | 756.0 | 559.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
