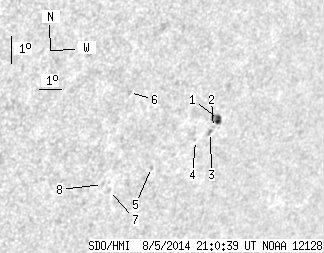

SDO HMI 2014-08-05 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.71 | 18.35 | 2.95 | 14.28 | -20.76 | 249.60 | 43.53 | 236.57 | 0.7735 | 461.0 | 360.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.71 | 8.13 | 2.95 | 6.47 | -20.39 | 251.08 | 45.01 | 237.83 | 0.7853 | 595.9 | 526.6 | |
| 0.00 | 0.99 | 0.00 | 0.79 | -20.65 | 250.95 | 44.88 | 237.46 | 0.7854 | 686.0 | 514.8 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -20.81 | 250.87 | 44.80 | 237.24 | 0.7855 | 595.0 | 506.3 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -21.04 | 250.27 | 44.19 | 236.66 | 0.7811 | 522.0 | 431.6 | |
| 0.00 | 1.63 | 0.00 | 1.26 | -21.82 | 248.58 | 42.50 | 234.81 | 0.7698 | -319.0 | -356.7 | |
| 0.00 | 2.35 | 0.00 | 1.72 | -19.15 | 246.73 | 40.66 | 236.82 | 0.7376 | 377.0 | 311.0 | |
| 0.00 | 1.72 | 0.00 | 1.30 | -22.48 | 246.97 | 40.89 | 233.08 | 0.7589 | 473.0 | 380.3 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -22.25 | 246.58 | 40.50 | 233.10 | 0.7540 | 495.0 | 399.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
