SDO HMI 2014-08-05 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.08 | 0.00 | 8.06 | -19.40 | 239.83 | 33.76 | 231.69 | 0.6701 | 341.5 | 271.5 | |
|
previous
or next observation for the same group /

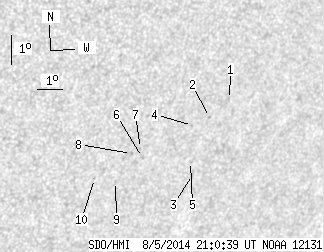

back to the solar disc SDO HMI 2014-08-05 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.49 | -17.58 | 241.82 | 35.75 | 235.51 | 0.6780 | 648.0 | 562.8 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -18.13 | 241.16 | 35.09 | 234.33 | 0.6747 | 740.0 | 615.5 | |
| 0.00 | 3.43 | 0.00 | 2.33 | -20.02 | 240.95 | 34.88 | 231.82 | 0.6857 | 94.0 | 184.4 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -18.36 | 240.55 | 34.47 | 233.58 | 0.6699 | 647.0 | 548.4 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -19.57 | 240.76 | 34.68 | 232.23 | 0.6806 | 274.0 | 345.4 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -19.32 | 238.83 | 32.76 | 231.01 | 0.6592 | 694.0 | 533.8 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -19.01 | 238.69 | 32.61 | 231.28 | 0.6554 | 545.0 | 473.2 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -19.16 | 238.38 | 32.30 | 230.84 | 0.6533 | 753.0 | 637.0 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -20.07 | 237.97 | 31.89 | 229.35 | 0.6563 | -452.0 | -350.5 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -19.92 | 237.14 | 31.06 | 228.82 | 0.6468 | -528.0 | -391.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
