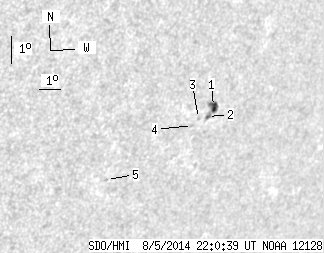

SDO HMI 2014-08-05 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.50 | 15.35 | 5.24 | 12.31 | -20.59 | 250.71 | 45.18 | 237.69 | 0.7880 | 544.5 | 449.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-05 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.51 | 12.20 | 4.44 | 9.82 | -20.33 | 251.11 | 45.58 | 238.20 | 0.7903 | 609.9 | 478.8 | |
| 0.99 | -1.00 | 0.80 | -1.00 | -20.66 | 250.95 | 45.43 | 237.75 | 0.7904 | 653.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.87 | -20.69 | 250.55 | 45.03 | 237.50 | 0.7869 | 426.0 | 449.0 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -20.91 | 250.35 | 44.83 | 237.14 | 0.7863 | 354.0 | 322.9 | |
| 0.00 | 1.17 | 0.00 | 0.90 | -22.49 | 247.07 | 41.55 | 233.47 | 0.7649 | 476.0 | 398.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
